5.3.1 模型推理

功能简介​

本章节介绍深度学习模型推理节点的基本使用方式，支持以下功能：

  • 输入本地图片进行模型推理，输出渲染图像并保存至本地；
  • 通过 Web 界面实时可视化推理结果；
  • 通过 MIPI 或 USB 摄像头输入视频流，在 Web 页面中显示目标检测结果。

本章节以目标检测模型为例，更多 DNN 算法参考 5.4 常用算法库。

支持平台​

平台类型操作系统
SpaceMiT RISC-V 系列板bianbu desktop 24.04 (Humble)
x86 平台Ubuntu 22.04 (Humble)

环境准备​

安装依赖项​

sudo apt install python3-opencv ros-humble-cv-bridge ros-humble-camera-info-manager \
ros-humble-image-transport python3-spacemit-ort

平台要求​

SpaceMiT RISC-V：

  • 已烧录 bianbu desktop 24.04 系统镜像；
  • 已完成 Bianbu Robot 安装。

x86 平台：

  • 已安装 Ubuntu 22.04；
  • 已配置 ROS2 Humble 及 Bianbu Robot SDK 环境。

支持的模型配置列表​

可执行以下命令，查看当前系统中已支持的模型配置：

ros2 launch br_perception infer_info.launch.py

示例输出：

[YAML files in 'br_perception']:
  - config/segmentation/unet.yaml
  - config/detection/yolov8.yaml
  - config/detection/yolov6.yaml
  - config/detection/yolov11_640.yaml
  - config/detection/yolov5.yaml
  - config/detection/yolov11_320.yaml
  - config/classification/resnet18.yaml
  - config/classification/resnet50.yaml
  - config/classification/mobilenet_v2.yaml

后续推理时，将 config_path 设置为相应的 .yaml 文件路径，即可使用对应模型。

图片推理​

激活 ROS2 环境

source /opt/bros/humble/setup.bash

准备图片与模型

cp /opt/bros/humble/share/jobot_infer_py/data/detection/test.jpg .

执行推理​

ros2 launch br_perception infer_img.launch.py config_path:='config/detection/yolov6.yaml' img_path:='./test.jpg'

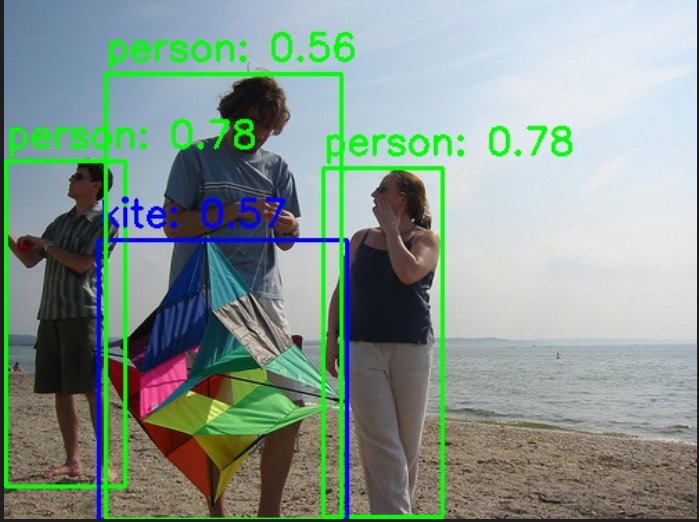

推理结果将输出至 det_result.jpg：

同时终端打印如下：

[INFO] [launch]: Default logging verbosity is set to INFO
[INFO] [infer_img_node-1]: process started with pid [275002]
[infer_img_node-1] x_min:1, y_min:116, width:86, height:235, label:person, confidence:0.78
[infer_img_node-1] x_min:230, y_min:121, width:86, height:252, label:person, confidence:0.78
[infer_img_node-1] x_min:68, y_min:173, width:179, height:202, label:kite, confidence:0.57
[infer_img_node-1] x_min:73, y_min:53, width:170, height:322, label:person, confidence:0.56
[infer_img_node-1] The object detection results are saved in: det_result.jpg
[INFO] [infer_img_node-1]: process has finished cleanly [pid 275002]

Web 可视化推理结果​

启动推理（终端1）：

source /opt/bros/humble/setup.bash
ros2 launch br_perception infer_img.launch.py config_path:='config/detection/yolov6.yaml' img_path:='./test.jpg' publish_result_img:=true result_img_topic:='result_img' result_topic:='/inference_result'

Web 可视化推理结果（终端2）：

source /opt/bros/humble/setup.bash
ros2 launch br_visualization websocket_cpp.launch.py image_topic:='/result_img'

终端将提示浏览器地址：

...
Please visit in your browser: http://<IP>:8080
...

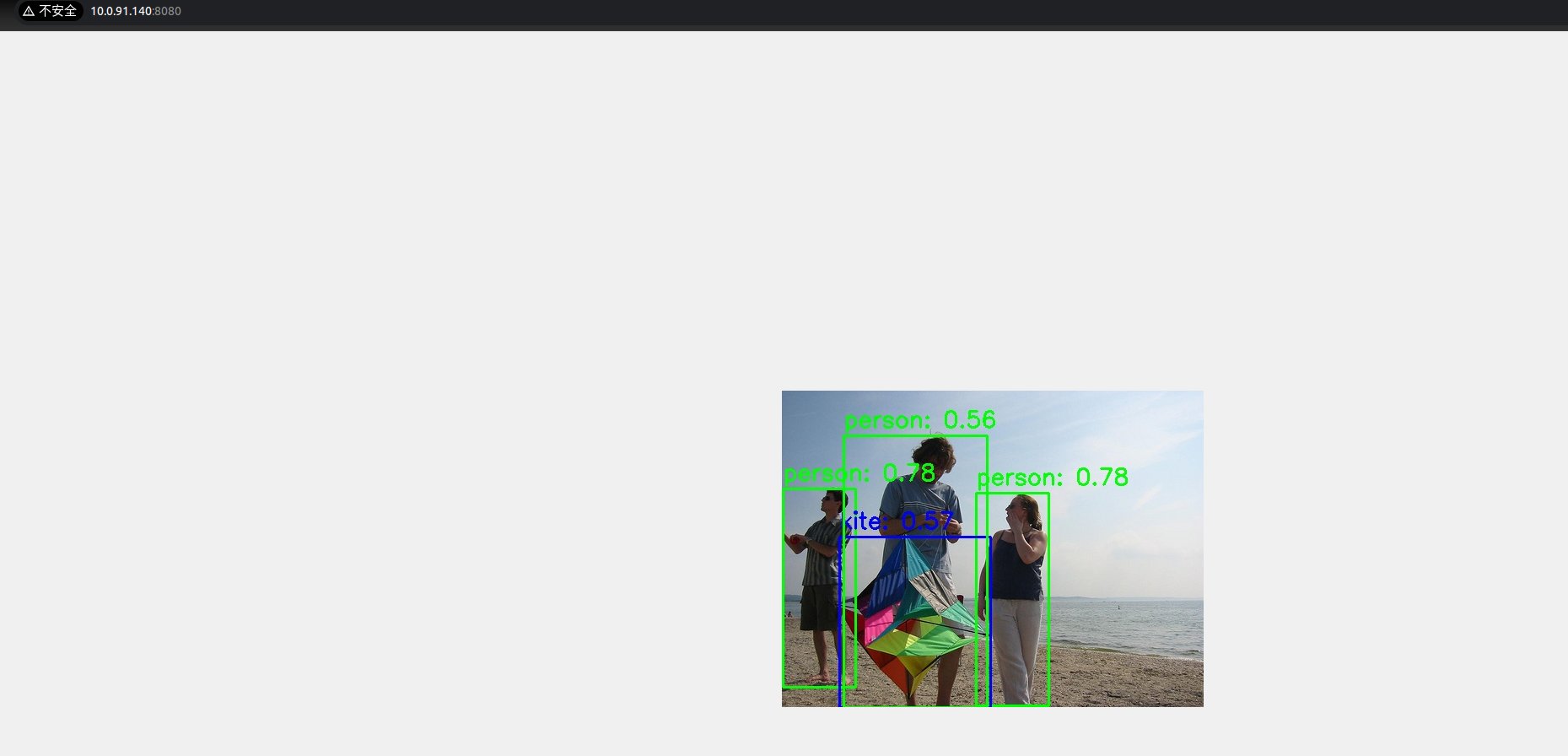

打开浏览器访问 http://<IP>:8080 即可查看实时推理渲染图像：

消息查看与订阅​

推理结果通过 /inference_result 话题发布，可执行下述命令订阅查看：

ros2 topic echo /inference_result

输出如下：

header:
  stamp:
    sec: 1745571001
    nanosec: 597668762
  frame_id: camera_link
results:
- x_min: 109
  y_min: 99
  width: 149
  height: 316
  label: bottle
  conf: 0.4000000059604645
- x_min: 270
  y_min: 209
  width: 150
  height: 249
  label: bottle
  conf: 0.4000000059604645
- x_min: -1
  y_min: 424
  width: 326
  height: 55
  label: sink
  conf: 0.30000001192092896
---

查看消息格式定义

ros2 interface show jobot_ai_msgs/msg/DetectionResultArray

结构示例：

std_msgs/Header header
    builtin_interfaces/Time stamp
        int32 sec
        uint32 nanosec
    string frame_id

jobot_ai_msgs/DetectionResult[] results
    int32 x_min
    int32 y_min
    int32 width
    int32 height
    string label
    float32 conf

Python 订阅推理结果示例

from rclpy.node import Node
from std_msgs.msg import Header
from jobot_ai_msgs.msg import DetectionResultArray, DetectionResult
import rclpy

class DetectionSubscriber(Node):
    def __init__(self):
        super().__init__('detection_sub')
        self.subscription = self.create_subscription(
            DetectionResultArray,
            '/detections',
            self.listener_callback,
            10)

    def listener_callback(self, msg: DetectionResultArray):
        self.get_logger().info(f"Frame: {msg.header.frame_id}")
        for det in msg.results:
            self.get_logger().info(
                f"[{det.label}] ({det.x_min},{det.y_min}) "
                f"{det.width}x{det.height} conf={det.conf:.2f}"
            )

def main(args=None):
    rclpy.init(args=args)
    node = DetectionSubscriber()
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

main()

按 Ctrl + C 可以结束下面这个终端命令运行：

ros2 launch br_perception infer_img.launch.py config_path:='config/detection/yolov6.yaml' img_path:='./test.jpg' publish_result_img:=true result_img_topic:='result_img' result_topic:='/inference_result'

你可以换一张其它图片进行推理，改变 img_path 即可，web端的结果会进行更新。

infer_img.launch.py 的参数说明

参数名称作用默认值
config_path配置推理时使用的模型config/detection/yolov6.yaml
img_path推理时使用的图片路径data/detection/test.jpg
publish_result_img是否以图像消息的形式发布推理结果false
result_img_topic发布的渲染图像消息名，publish_result_img为true时才有效/result_img
result_topic发布的推理结果消息名/inference_result

查看已经支持的更多 config_path

ros2 launch br_perception infer_info.launch.py

输出示例：

[YAML files in 'br_perception']:
  - config/segmentation/unet.yaml
  - config/detection/yolov8.yaml
  - config/detection/yolov6.yaml
  - config/detection/yolov11_640.yaml
  - config/detection/yolov5.yaml
  - config/detection/yolov11_320.yaml
  - config/classification/resnet18.yaml
  - config/classification/resnet50.yaml
  - config/classification/mobilenet_v2.yaml

当你设置 config_path:=config/detection/yolov8.yaml，即可使用yolov8模型

视频流推理​

启动相机节点​

source /opt/bros/humble/setup.bash
ros2 launch br_sensors usb_cam.launch.py video_device:="/dev/video20"

启动视频推理​

推理终端

source /opt/bros/humble/setup.bash
ros2 launch br_perception infer_video.launch.py config_path:='config/detection/yolov6.yaml' sub_image_topic:='/image_raw' publish_result_img:=true result_topic:='/inference_result'

Web 可视化终端

source /opt/bros/humble/setup.bash
ros2 launch br_visualization websocket_cpp.launch.py image_topic:='/result_img'

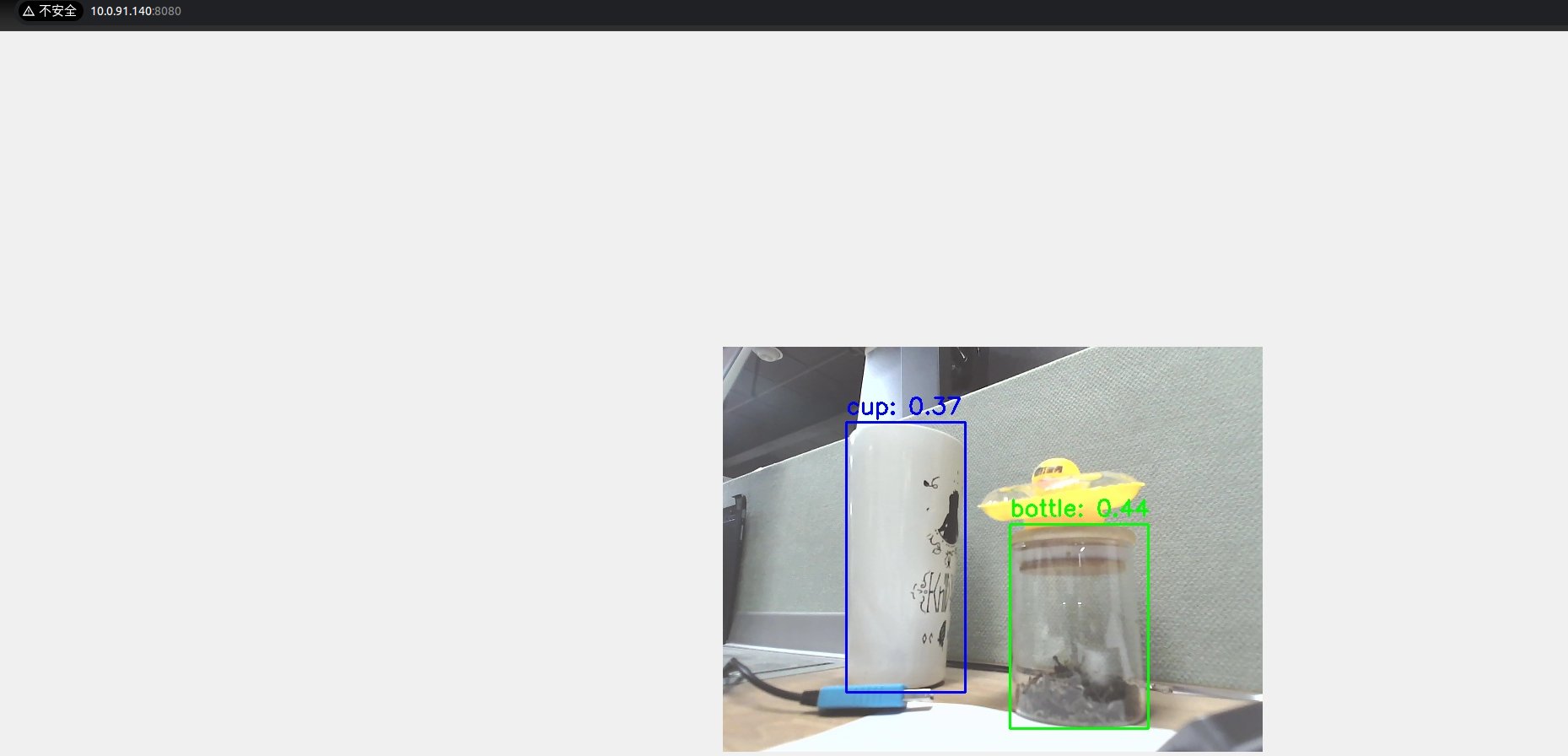

访问浏览器地址 http://<IP>:8080，可看到如下推理结果：

无可视化模式（仅获取数据）

如果您只想要拿到模型推理的结果，执行下述命令即可：

ros2 launch br_perception infer_video.launch.py config_path:='config/detection/yolov6.yaml' sub_image_topic:='/image_raw' publish_result_img:=false result_topic:='/inference_result'

消息查看和订阅​

打印/inference_result话题：

ros2 topic echo /inference_result
header:
  stamp:
    sec: 1745571001
    nanosec: 597668762
  frame_id: camera_link
results:
- x_min: 109
  y_min: 99
  width: 149
  height: 316
  label: bottle
  conf: 0.4000000059604645
- x_min: 270
  y_min: 209
  width: 150
  height: 249
  label: bottle
  conf: 0.4000000059604645
- x_min: -1
  y_min: 424
  width: 326
  height: 55
  label: sink
  conf: 0.30000001192092896
---

消息格式定义 (ros2 interface show jobot_ai_msgs/msg/DetectionResultArray 查看）:

bianbu@bianbu:~$ ros2 interface show jobot_ai_msgs/msg/DetectionResultArray
std_msgs/Header header
    builtin_interfaces/Time stamp
        int32 sec
        uint32 nanosec
    string frame_id

jobot_ai_msgs/DetectionResult[] results
    int32 x_min
    int32 y_min
    int32 width
    int32 height
    string label
    float32 conf

python 订阅调用示例

from rclpy.node import Node
from std_msgs.msg import Header
from jobot_ai_msgs.msg import DetectionResultArray, DetectionResult
import rclpy

class DetectionSubscriber(Node):
    def __init__(self):
        super().__init__('detection_sub')
        self.subscription = self.create_subscription(
            DetectionResultArray,
            '/detections',
            self.listener_callback,
            10)

    def listener_callback(self, msg: DetectionResultArray):
        self.get_logger().info(f"Frame: {msg.header.frame_id}")
        for det in msg.results:
            self.get_logger().info(
                f"[{det.label}] ({det.x_min},{det.y_min}) "
                f"{det.width}x{det.height} conf={det.conf:.2f}"
            )

def main(args=None):
    rclpy.init(args=args)
    node = DetectionSubscriber()
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

main()

infer_video.launch.py 的参数说明

参数名称作用默认值
config_path配置推理时使用的模型config/detection/yolov6.yaml
sub_image_topic订阅的图像消息话题名/image_raw
publish_result_img是否以图像消息的形式发布推理结果false
result_img_topic发布的渲染图像消息名，publish_result_img为true时才有效/result_img
result_topic发布的推理结果消息名/inference_result
