Bit-Brick K1

Published Sep 2024

NOTE:

BIT-BRICK IS THE TRADEMARK OF BIT BRICK LTD. ANYONE WANT TO USE THIS SHOULD GET THE PERMISSION FROM BIT BRICK COMPANY.

BIT-BRICK K1 is a single-board computer based on the RISC-V application processor of Jinder Time Space. The motherboard integrates large-capacity high-speed memory, Gigabit Ethernet, high-definition digital display interface, USB3.0 and USB2.0 interfaces, supports dual NVME solid-state drive interfaces, and supports a rich variety of bus interface expansions. K1 is suitable for the different requirements of different people for learning computing technology.

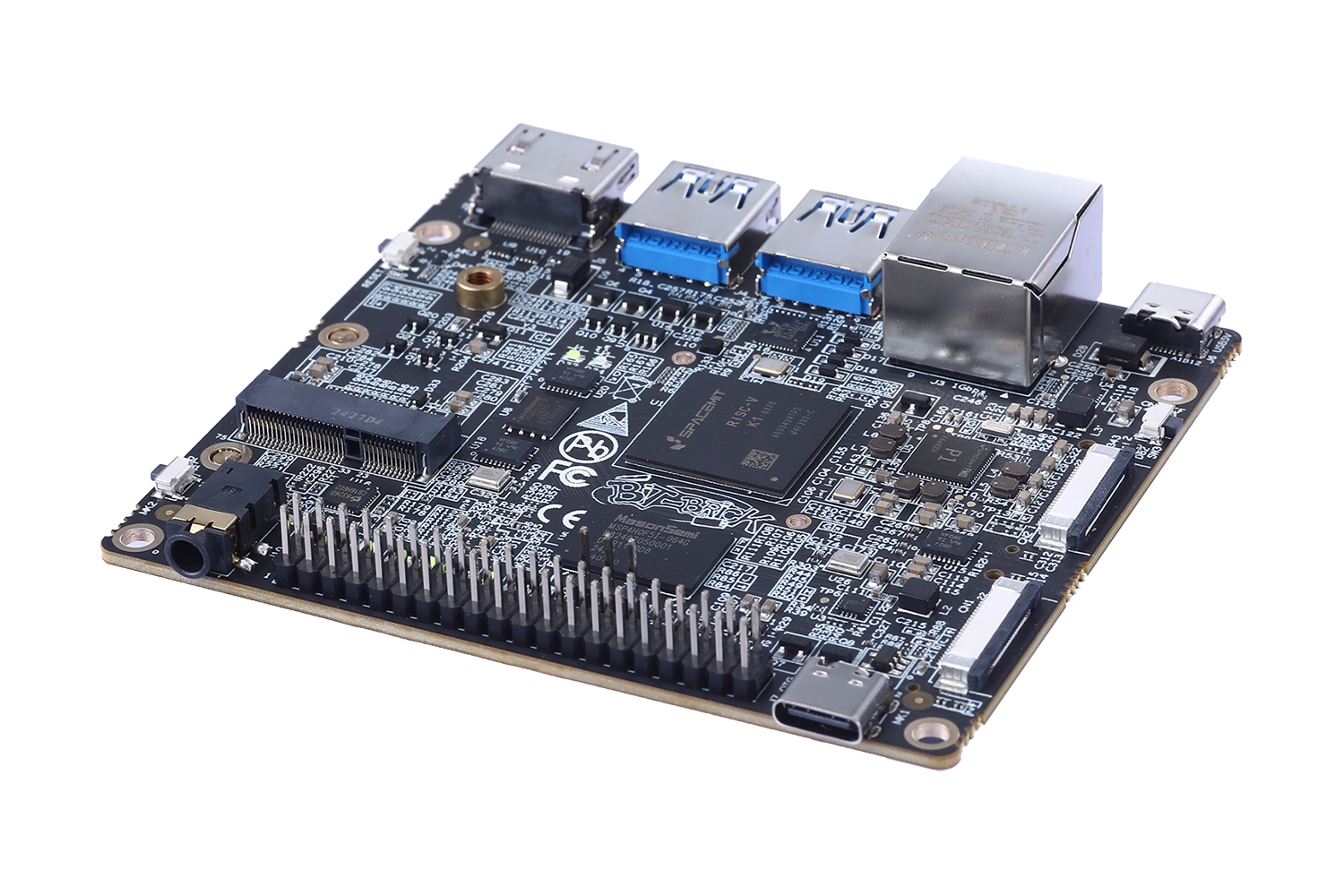

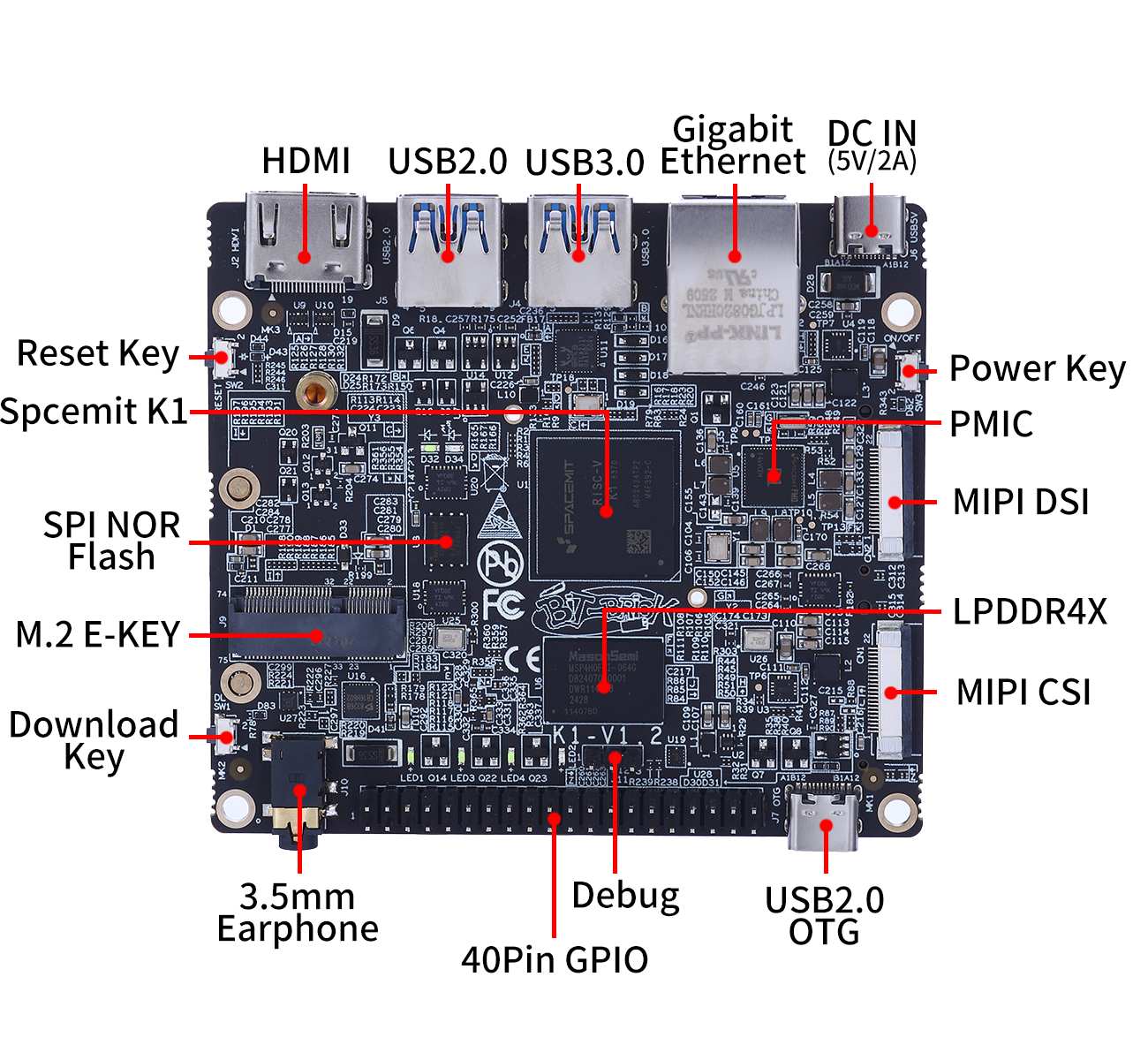

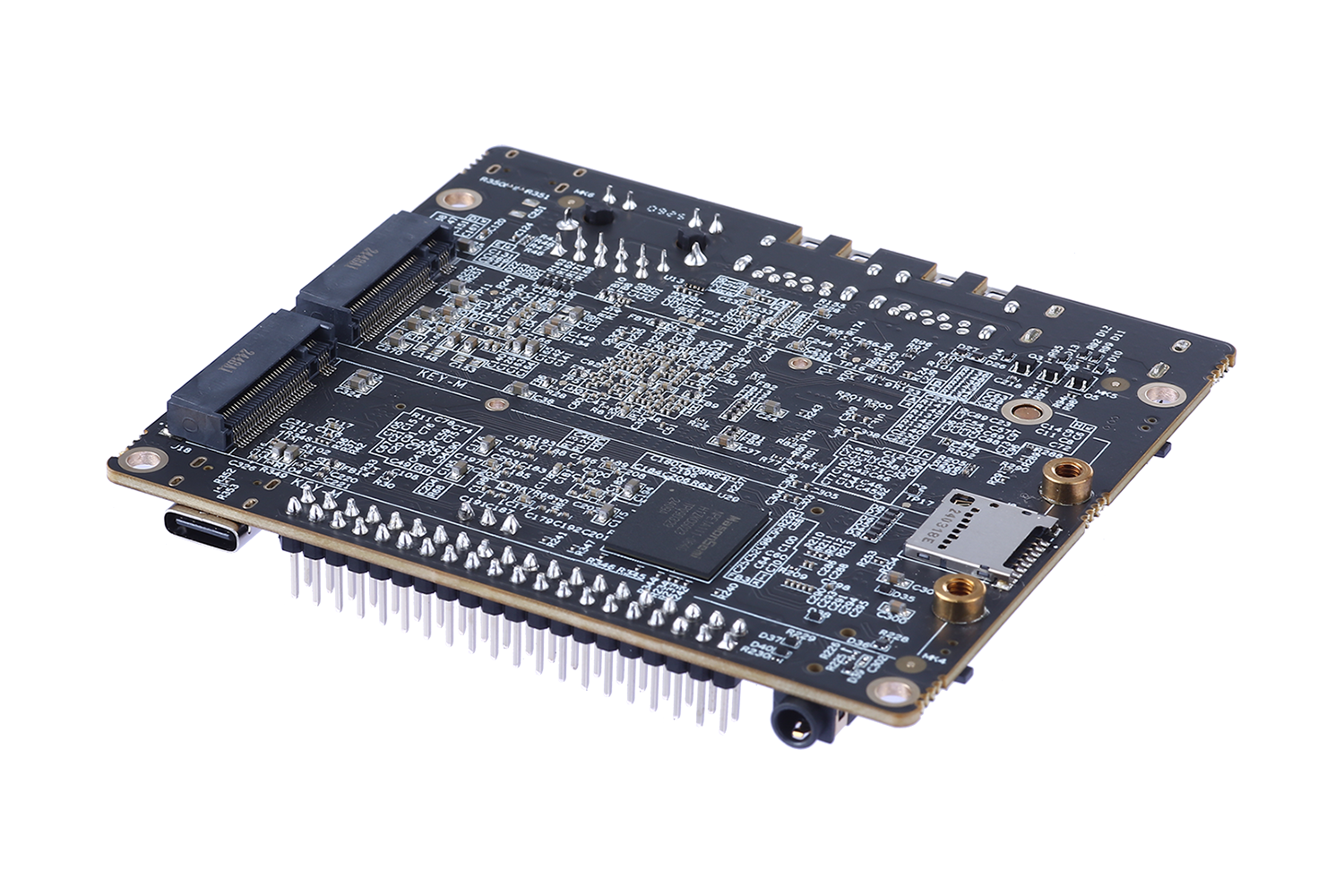

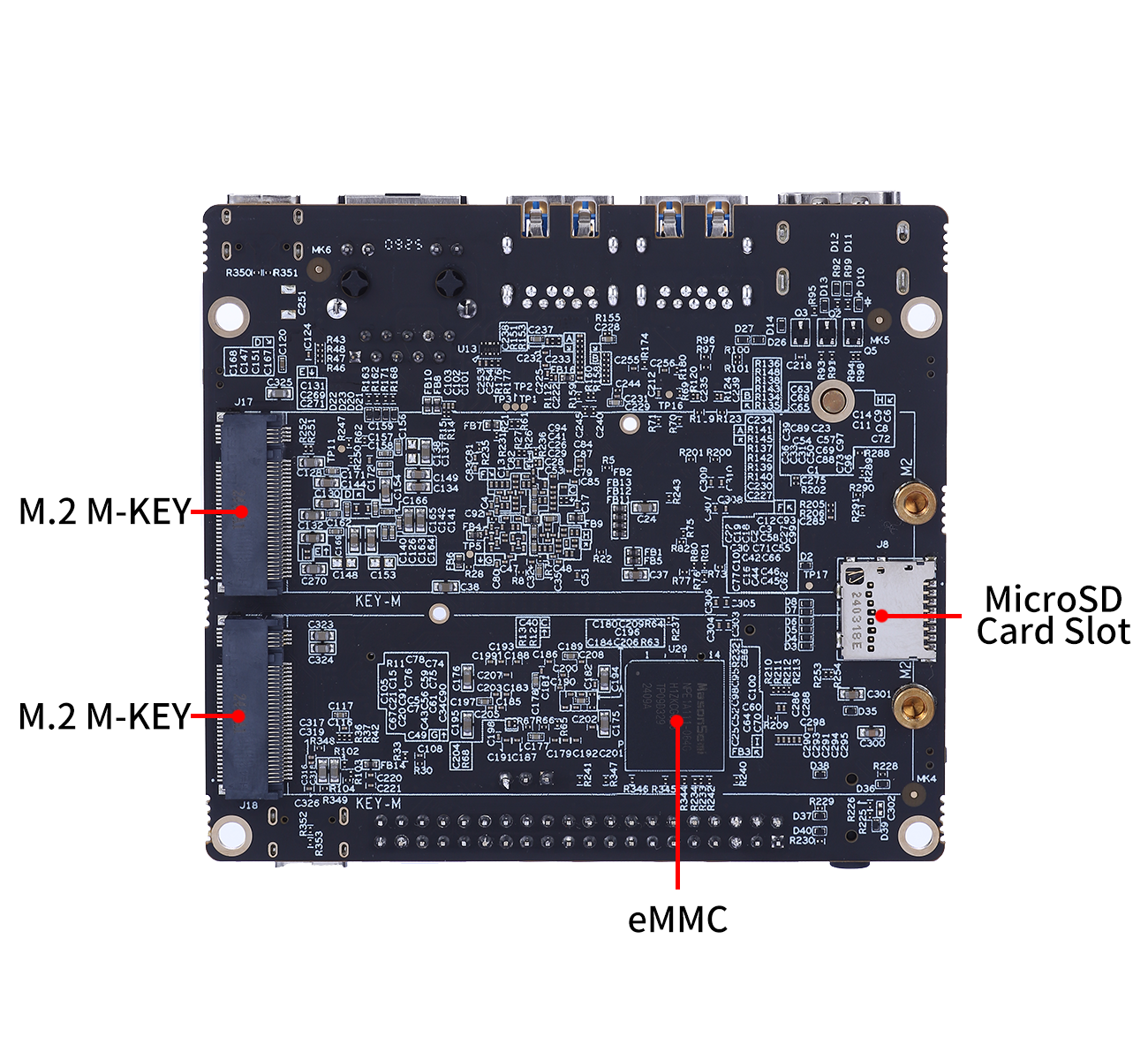

1. Overview​

front front

2. Hardware Specifications​

ItemValue
Processor- RISC-V SpacemiT® X60™ Dual-Cluster Octa-core processors, adhere to the RISC-V 64GCVB architecture and RVA22 standard
- IMG BXE-2-32@819MHz, 32KB SLC, support OpenCL3.0/OpenGL ES 3.2/Vulkan1.3
- 2TOPS AI performance
- Detailed specifications refer to the official chip specification: Official Chip Specification
Detailed Specifications- LPDDR4X SDRAM (2GB / 4GB/8GB available)
- HDMI 1.4a, Resolution up to 1920x1440@60Hz
- 1×USB 3.0 ports, 1xUSB2.0 HOST, 1xUSB2.0 OTG
- 1×microSD card slot
- 1×Gigabit Ethernet
- 1×4-lane MIPI camera/display transceivers
- PCIe 2.0 x2 interface for fast peripherals, support NVME SSD
- Power, reset key, and upgrade key support
- Power led, and 3 programmable led support
- 3.5mm headset interface, 2 mics support on board.
- 5V/5A DC power via USB-C
- 40 pin connector, support CAN/UART/SPI/I2C/PWM/I2S etc.
- WIFI/Bluetooth OPTIONAL (M.2 slot support SDIO WIFI module)

3. Functional Block Diagram​

front front

4. Dimension Specifications​

front
