Product Introduction

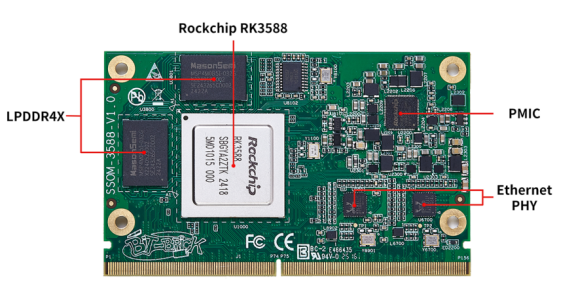

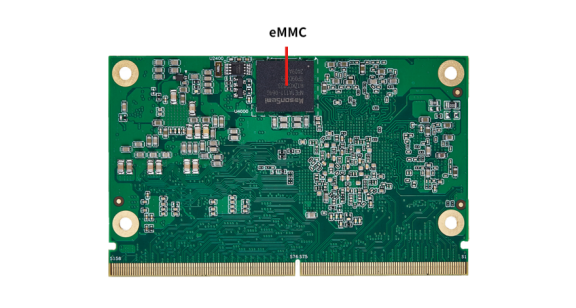

SSOM-3588是一款基于瑞芯微RK3588处理器开发设计的高性能、高集成度嵌入式计算平台，可提供卓越的计算性能和能效。专为工业控制、边缘计算、智能座舱和安防监控等应用场景设计。 该模块搭载的RK3588 SoC采用8纳米工艺制造，具备异构CPU架构，四核Cortex-A76（主频最高2.4 GHz）和四核Cortex-A55（主频最高1.8 GHz）。集成Mali-G610 MP4 GPU,内嵌2D图形引擎，支持OpenGL ES 1.1/2.0/3.2、OpenCL 2.2和Vulkan 1.2，支持8K视频编解码。内置的NPU提供6 TOPS的AI算力，支持INT4/INT8/INT16/FP16/BF16/TF32等。 SSOM-3588尺寸紧凑，PCIe3.0、USB3.1、HDMI2.1等大部分功能引脚通过金手指连接器引出。支持多屏显示、多路摄像头输入和高速数据传输，能够实现复杂AI和多媒体应用的快速部署。
功能框图
规格参数
| 参数 | 描述 |
|---|---|
| CPU | Rockchip RK3588, 四核Cortex-A76 + 四核Cortex-A55 , 主频最高可达2.4GHz |
| GPU | ARM Mali-G610 MP4 GPU, 支持0penGL ES 1.1, 2.0 and 3.2/0penCL 2.2/Vulkan 1.2 |
| NPU | 6 TOPS@INT8,支持INT4/INT8/INT16/FP16/BF16/TF32混合运算,支持深度学习框架如TensorFlow, PyTorch, Caffe等 |
| VPU | 解码: 8K@60fps H.265/VP9/AVS2; 8K@30fps H.264 AVC/MVC; 4K@60fps AV1; 1080P@60fps MPEG-2/MPEG-1/VC-1/VP8编码: 8K@30fps H.265/H.264 |
| RAM | 4GB/8GB/16GB/32GB LPDDR4X SDRAM |
| Flash | 32GB/64GB/128GB eMMC |
| 视频 | 输出: 1x HDMI2.1(8K@60fps or 4K@120fps); 1x DP1.4(4K@60fps); 2x MIPI-DSI(4K@60fps) 输入: 1x HDIMI-IN(4K@60fps),support HDCP2.3; 4x MIPI-CSI DPHY; 2x MIPI DC PHY |
| 音频 | 2x 8-channel I2S; 2x 2-channel I2S; 2x SPDIF; 2x 8-channel PDM; 1x dual-channel DAC、1x VAD |
| ISP | 48MP ISP3.0, 支持HDR & 3DNR |
| PCIe | 3x PCIe3.0(3x 1Lane/1x 2Lane+2x 1Lane); 1x PCIe2.1(1Lane,multiplexed with SATA3.0) |
| Ethernet | 2 x Gigabit Ethernet |
| USB | 2x USB3.1 0TG; 1x USB3.1 HOST; 4x USB2.0 HOST |
| UART | 10x |
| SDIO | 1x |
| I2C | 8x |
| SPI | 4x |
| CAN | 2x |
| PWM | 13x |
| MIPI DSI | 2x |
| MIPI CSI | 2x |
| SATA | 1x |
| 电源 | DC 4V |
| 工作温度 | -20 ~ 75 °C |
| 尺寸（长X宽） | 82 X 50 mm |
| 操作系统 | Linux/Android |
引脚定义
| PinNumber | DefaultDefination | Corresponding GPIO | PinNumber | DefaultDefination | Corresponding GPIO |
|---|---|---|---|---|---|
| P1 | NC | S1 | NC | ||
| P2 | GND | S2 | NC | ||
| P3 | MI PI_CSI0_RX_CLK0P | S3 | GND | ||
| P4 | MI PI_CSI0_RX_CLK0N | S4 | MI PI_CAM1_CLKOUT | GPIO1_B6_u | |
| P5 | NC | S5 | I2C3_SCL_M0_MI PI | GPIO1_C1_z | |
| P6 | NC | S6 | MI PI_CAM2_CLKOUT | GPIO1_B7_u | |
| P7 | MI PI_CSI0_RX_D0P | S7 | I2C3_SDA_M0_MI PI | GPIO1_C0_z | |
| P8 | MI PI_CSI0_RX_D0N | S8 | MI PI_CSI1_RX_CLK0P | ||
| P9 | GND | S9 | MI PI_CSI1_RX_CLK0N | ||
| P10 | MI PI_CSI0_RX_D1P | S10 | GND | ||
| P11 | MI PI_CSI0_RX_D1N | S11 | MI PI_CSI1_RX_D0P | ||
| P12 | GND | S12 | MI PI_CSI1_RX_D0N | ||
| P13 | MI PI_CSI0_RX_D2P | S13 | GND | ||
| P14 | MI PI_CSI0_RX_D2N | S14 | MI PI_CSI1_RX_D1P | ||
| P15 | GND | S15 | MI PI_CSI1_RX_D1N | ||
| P16 | MI PI_CSI0_RX_D3P | S16 | GND | ||
| P17 | MI PI_CSI0_RX_D3N | S17 | PHY2_MDI0+ | ||
| P18 | GND | S18 | PHY2_MDI0- | ||
| P19 | PHY0_MDI3- | S19 | PHY2_LED2/CFG_LDO1 | ||
| P20 | PHY0_MDI3+ | S20 | PHY2_MDI1+ | ||
| P21 | PHY0_LED2/CFG_LDO1 | S21 | PHY2_MDI1+ | ||
| P22 | PHY0_LED1/CFG_LDO0 | S22 | PHY2_LED1/CFG_LDO0 | ||
| P23 | PHY0_MDI2- | S23 | PHY2_MDI2+ | ||
| P24 | PHY0_MDI2+ | S24 | PHY2_MDI2- | ||
| P25 | PHY0_LED0/CFG_EXT | S25 | GND | ||
| P26 | PHY0_MDI1- | S26 | PHY2_MDI3+ | ||
| P27 | PHY0_MDI1+ | S27 | PHY2_MDI3- | ||
| P28 | GPIO4_C6_d | GPIO4_C6_d | S28 | NC | |
| P29 | PHY0_MDI0- | S29 | PCIE30_PORT0_TX0P | ||
| P30 | PHY0_MDI0+ | S30 | PCIE30_PORT0_TX0N | ||
| P31 | SPI1_CS1_M2 | GPIO1_D5_d | S31 | PHY2_LED0/CFG_EXT | |
| P32 | GND | S32 | PCIE30_PORT0_RX0P | ||
| P33 | NC | S33 | PCIE30_PORT0_RX0N | ||
| P34 | SDMMC0_CMD | GPIO4_D4_u | S34 | GND | |
| P35 | SDMMC_DET_L | GPIO0_A4_u | S35 | TYPEC0_SSTX2P | |
| P36 | SD_CLK | GPIO4_D5_u | S36 | TYPEC0_SSTX2N | |
| P37 | SDMMC_PWREN | GPIO4_B0_d | S37 | TYPEC0_USB20_VBUSDET | |
| P38 | GND | S38 | I2S0_MCLK | GPIO1_C2_d | |
| P39 | SDMMC0_D0 | GPIO4_D0_u | S39 | I2S0_LRCK_TX | GPIO1_C5_d |
| P40 | SDMMC0_D1 | GPIO4_D1_u | S40 | I2S0_SDO0 | GPIO1_C7_d |
| P41 | SDMMC0_D2 | GPIO4_D2_u | S41 | I2S0_SDI0 | GPIO1_D4_d |
| P42 | SDMMC0_D3 | GPIO4_D3_u | S42 | I2S0_SCLK_TX | GPIO1_C3_d |
| P43 | SPI1_CS0_M2 | GPIO1_D3_d | S43 | HDMI_RX_SCL_M1 | GPIO3_D2_d |
| P44 | SPI1_CLK_M2 | GPIO1_D2_d | S44 | HDMI_RX_SDA_M1 | GPIO3_D3_d |
| P45 | SPI1_MISO_M2 | GPIO1_D0_d | S45 | HDMI_RX_D0P | |
| P46 | SPI1_MOSI_M2 | GPIO1_D1_d | S46 | HDMI_RX_D0N | |
| P47 | GND | S47 | GND | ||
| P48 | SATA30_1_TXP | S48 | HDMI_RX_D1P | ||
| P49 | SATA30_1_TXN | S49 | HDMI_RX_D1N | ||
| P50 | GND | S50 | HDMIIRX_HPDOUT_H | GPIO3_D4_d | |
| P51 | SATA30_1_RXP | S51 | HDMI_RX_D2P | ||
| P52 | SATA30_1_RXN | S52 | HDMI_RX_D2N | ||
| P53 | GND | S53 | NC | ||
| P54 | SPI0_CS0_M2 | GPIO1_B4_u | S54 | HDMI_RX_CLKP | |
| P55 | SPI0_CS1_M2 | GPIO1_B5_u | S55 | HDMI_RX_CLKN | |
| P56 | SPI0_CLK_M2 | GPIO1_B3_u | S56 | HDMI_RX_CEC | GPIO3_D1_d |
| P57 | SPI0_MISO_M2 | GPIO1_B1_u | S57 | HDMIIRX_DET_L | GPIO1_A4_d |
| P58 | SPI0_MOSI_M2 | GPIO1_B2_u | S58 | NC | |
| P59 | GND | S59 | TYPEC0_SSRX2P | ||
| P60 | TYPEC1_OTG_DP | S60 | TYPEC0_SSRX2N | ||
| P61 | TYPEC1_OTG_DM | S61 | GND | ||
| P62 | USB0_EN_OC# | GPIO4_B1_u | S62 | TYPEC0_SSTX1P | |
| P63 | TYPEC1_USB20_VBUSDET | S63 | TYPEC0_SSTX1N | ||
| P64 | TYPEC1_USB20_OTG_ID | S64 | GND | ||
| P65 | USB20_HOST0_DP | S65 | TYPEC0_SSRX1P | ||
| P66 | USB20_HOST0_DM | S66 | TYPEC0_SSRX1N | ||
| P67 | USB1_EN_OC# | GPIO4_B2_u | S67 | GND | |
| P68 | GND | S68 | TYPEC0_OTG_DP | ||
| P69 | USB20_HOST1_DP | S69 | TYPEC0_OTG_DM | ||
| P70 | USB20_HOST1_DM | S70 | GND | ||
| P71 | USB2_EN_OC# | GPIO4_B3_u | S71 | USB30_2_SSTXP | |
| P72 | TYPEC0_SBU1 | S72 | USB30_2_SSTXN | ||
| P73 | TYPEC0_SBU2 | S73 | GND | ||
| P74 | NC | S74 | USB30_2_SSRXP | ||
| P75 | PCIE20x1_2_PERSTn_M0_L | GPIO4_C1_d | S75 | USB30_2_SSRXN | |
| P76 | PCIE30x1_1_CLKREQn_M1_L | GPIO4_A0_d | S76 | PCIE30x1_0_PERSTn_M2_L | GPIO4_A5_d |
| P77 | PCIE30x1_0_CLKREQn_M2_L | GPIO4_A3_d | S77 | PCIE30x1_1_PERSTn_M1_L | GPIO4_A2_d |
| P78 | PCIE20x1_2_CLKREQn_M0_L | GPIO4_B7_u | S78 | PCIE30_PORT1_RX1P | |
| P79 | GND | S79 | PCIE30_PORT1_RX1N | ||
| P80 | PCIE30_REFCLKP_SLOT1 | S80 | GND | ||
| P81 | PCIE30_REFCLKN_SLOT1 | S81 | PCIE30_PORT1_TX1P | ||
| P82 | GND | S82 | PCIE30_PORT1_TX1N | ||
| P83 | PCIE20_0_REFCLKP | S83 | GND | ||
| P84 | PCIE20_0_REFCLKN | S84 | PCIE30_REFCLKP_SLOT0 | ||
| P85 | GND | S85 | PCIE30_REFCLKN_SLOT0 | ||
| P86 | PCIE20_0_RXP/SATA30_0_RXP | S86 | GND | ||
| P87 | PCIE20_0_RXN/SATA30_0_RXN | S87 | PCIE30_PORT0_RX1P | ||
| P88 | GND | S88 | PCIE30_PORT0_RX1N | ||
| P89 | PCIE20_0_TXP/SATA30_0_TXP | S89 | GND | ||
| P90 | PCIE20_0_TXN/SATA30_0_TXN | S90 | PCIE30_PORT0_TX1P | ||
| P91 | GND | S91 | PCIE30_PORT0_TX1N | ||
| P92 | HDMI0_TX2P_PORT | S92 | GND | ||
| P93 | HDMI0_TX2N_PORT | S93 | DP1_TX0P | ||
| P94 | GND | S94 | DP1_TX0N | ||
| P95 | HDMI0_TX1P_PORT | S95 | NC | ||
| P96 | HDMI0_TX1N_PORT | S96 | DP1_TX1P | ||
| P97 | GND | S97 | DP1_TX1N | ||
| P98 | HDMI0_TX0P_PORT | S98 | DP1_HPDIN_M0 | GPIO5_D5_d | |
| P99 | HDMI0_TX0N_PORT | S99 | DP1_TX2P | ||
| P100 | GND | S100 | DP1_TX2N | ||
| P101 | HDMI0_TX3P_PORT | S101 | GND | ||
| P102 | HDMI0_TX3N_PORT | S102 | DP1_TX3P | ||
| P103 | GND | S103 | DP1_TX3P | ||
| P104 | HDMITX0_HPDIN_M0 | GPIO1_A5_d | S104 | TYPEC0_USB20_OTG_ID | |
| P105 | HDMITX0_SCL_M2 | GPIO3_C7_u | S105 | DP1_AUXP | |
| P106 | HDMITX0_SDA_M2 | GPIO3_D0_u | S106 | DP1_AUXN | |
| P107 | HDMITX0_CEC_M1 | GPIO0_D1_u | S107 | LCD1_BKLT_EN | GPIO3_C6_u |
| P108 | MI PI_CAM1_PWREN_H | GPIO1_D6_u | S108 | MI PI_DPHY1_TX_CLKP | |
| P109 | MI PI_CAM2_PWREN_H | GPIO1_D7_u | S109 | MI PI_DPHY1_TX_CLKN | |
| P110 | MI PI_CAM1_PDN_L | GPIO1_A7_u | S110 | GND | |
| P111 | MI PI_CAM2_PDN_L | GPIO3_B2_d | S111 | MI PI_DPHY1_TX_D0P | |
| P112 | HP_DET_L | GPIO1_C4_d | S112 | MI PI_DPHY1_TX_D0N | |
| P113 | PWM5_M1_FAN | GPIO0_C6_u | S113 | NC | |
| P114 | GPIO1_B0_u | GPIO1_B0_u | S114 | MI PI_DPHY1_TX_D1P | |
| P115 | GPIO1_A6_d | GPIO1_A6_d | S115 | MI PI_DPHY1_TX_D1N | |
| P116 | GPIO1_C6_d | GPIO1_C6_d | S116 | LCD1_VDD_EN | |
| P117 | PCIE20x1_2_WAKEN_M0_L | GPIO4_C0_u | S117 | MI PI_DPHY1_TX_D2P | |
| P118 | PCIE30x1_1_WAKEN_M1_L | GPIO4_A1_d | S118 | MI PI_DPHY1_TX_D2N | |
| P119 | PCIE30x1_0_WAKEN_M2_L | GPIO4_A4_d | S119 | GND | |
| P120 | GND | S120 | MI PI_DPHY1_TX_D3P | ||
| P121 | PCIE30X4_PERSTn_M0_L | GPIO4_B6_d | S121 | MI PI_DPHY1_TX_D3N | |
| P122 | PCIE30X4_CLKREQn_M0_L | GPIO4_B4_u | S122 | MI PI_DPHY1_TX_D3N | |
| P123 | BOOT_SARADC_IN0 | S123 | PCIE30X4_WAKEN_M0_L | GPIO4_B5_d | |
| P124 | HDMI0_TX_SBDP | S124 | GND | ||
| P125 | HDMI0_TX_SBDN | S125 | MI PI_DPHY0_TX_D0P | ||
| P126 | NC | S126 | MI PI_DPHY0_TX_D0N | ||
| P127 | RESET_L | S127 | LCD0_BKLT_EN | GPIO3_A6_d | |
| P128 | PWRON_L | S128 | MI PI_DPHY0_TX_D1P | ||
| P129 | UART5_TX_M1 | GPIO3_C4_u | S129 | MI PI_DPHY0_TX_D1N | |
| P130 | UART5_RX_M1 | GPIO3_C5_u | S130 | GND | |
| P131 | BT_REG_ON_H | GPIO0_D2_u | S131 | MI PI_DPHY0_TX_D2P | |
| P132 | BT_WAKE_HOST_H | GPIO0_A0_d | S132 | MI PI_DPHY0_TX_D2N | |
| P133 | GND | S133 | LCD0_VDD_EN | GPIO2_B4_u | |
| P134 | UART7_TX_M1 | GPIO3_C0_d | S134 | MI PI_DPHY0_TX_D3P | |
| P135 | UART7_RX_M1 | GPIO3_C1_d | S135 | MI PI_DPHY0_TX_D3N | |
| P136 | UART6_TX_M1 | GPIO1_A1_d | S136 | GND | |
| P137 | UART6_RX_M1 | GPIO1_A0_d | S137 | MI PI_DPHY0_TX_D3N | |
| P138 | UART6_RTS_M1 | GPIO1_A2_d | S138 | MI PI_DPHY0_TX_CLKN | |
| P139 | UART6_CTS_M0 | GPIO1_A3_d | S139 | TP_INT_L | GPIO2_C5_d |
| P140 | UART2_TX_M0_DEBUG | GPIO0_B5_d | S140 | HOST_WAKE_BT_H | GPIO2_C3_d |
| P141 | UART2_RX_M0_DEBUG | GPIO0_B6_d | S141 | LCD0_BKLT_PWM | GPIO3_B6_d |
| P142 | GND | S142 | GPIO0_D3_d | GPIO0_D3_d | |
| P143 | CAN0_TX_M0 | GPIO0_B7_d | S143 | GND | |
| P144 | CAN0_RX_M0 | GPIO0_B8_d | S144 | GPIO0_B2_u | GPIO0_B2_u |
| P145 | CAN2_TX_M1 | GPIO0_D5_u | S145 | NC | |
| P146 | CAN2_RX_M1 | GPIO0_D4_u | S146 | NC | |
| P147 | VCC4V0_SYS | S147 | VDD_RTC | ||
| P148 | VCC4V0_SYS | S148 | SARADC_VIN5_HW_ID | ||
| P149 | VCC4V0_SYS | S149 | NC | ||
| P150 | VCC4V0_SYS | S150 | SARADC_IN6 | ||
| P151 | VCC4V0_SYS | S151 | SARADC_IN1 | ||
| P152 | VCC4V0_SYS | S152 | SARADC_IN2 | ||
| P153 | VCC4V0_SYS | S153 | SARADC_IN3 | ||
| P154 | VCC4V0_SYS | S154 | NC | ||
| P155 | VCC4V0_SYS | S155 | NC | ||
| P156 | VCC4V0_SYS | S156 | SARADC_IN4 | ||
| S157 | NC | ||||
| S158 | GND |

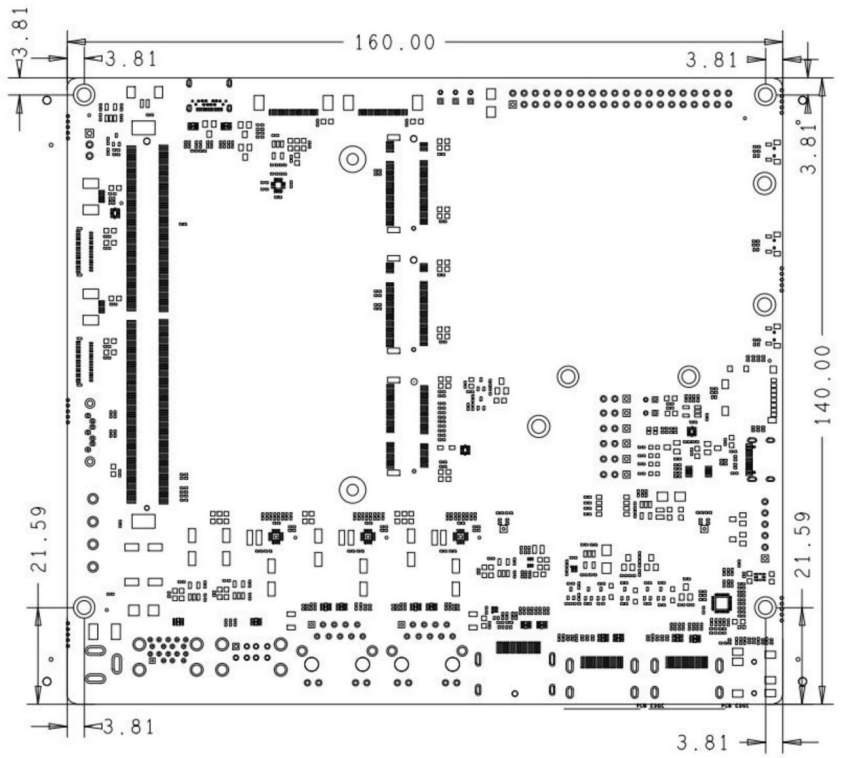

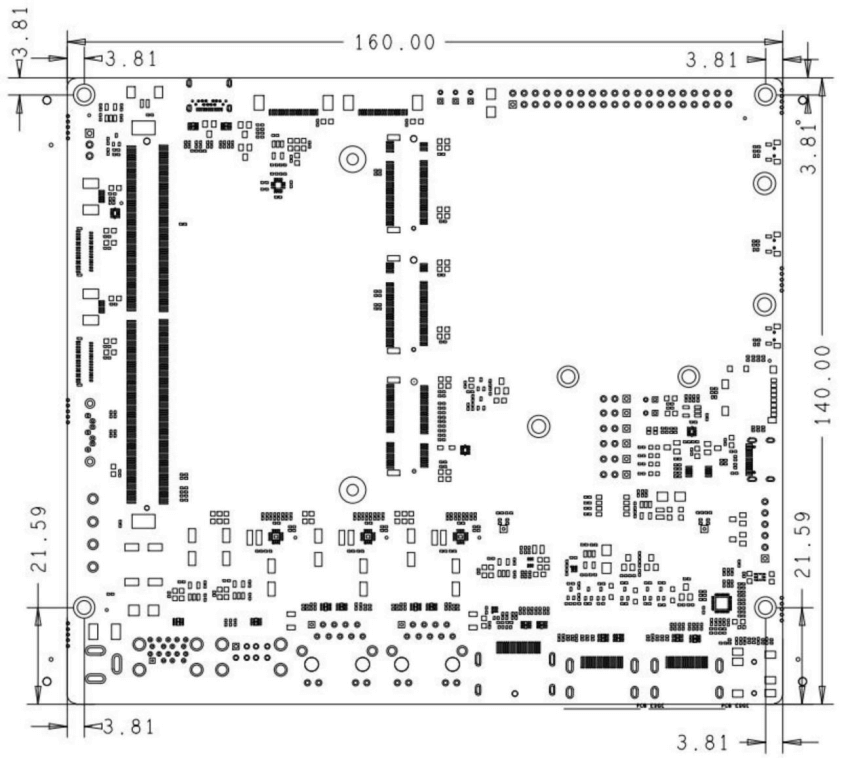

Mechanical Dimensions
Size:160mm X 140mm
