Getting Started Guide

When you receive the SSOM-3588 core board and baseboard, we recommend that you first read our getting started guide to help you quickly get into the development phase.

Before you start using the SSOM-3588, you may need to prepare the following accessories:

12V/2A power adapter
Network cable
Type-C data cable
Monitor supporting HDMI
HDMI cable (Type-A connector)
Keyboard and mouse
MicroSD card and card reader (if using SD card boot)

If you do not need a graphical interface, you may only need the power adapter and Type-C data cable. You can connect the SSOM-3588 to your computer via network cable or Type-C data cable and operate the device through a terminal tool.

1.1 Micro SD Card

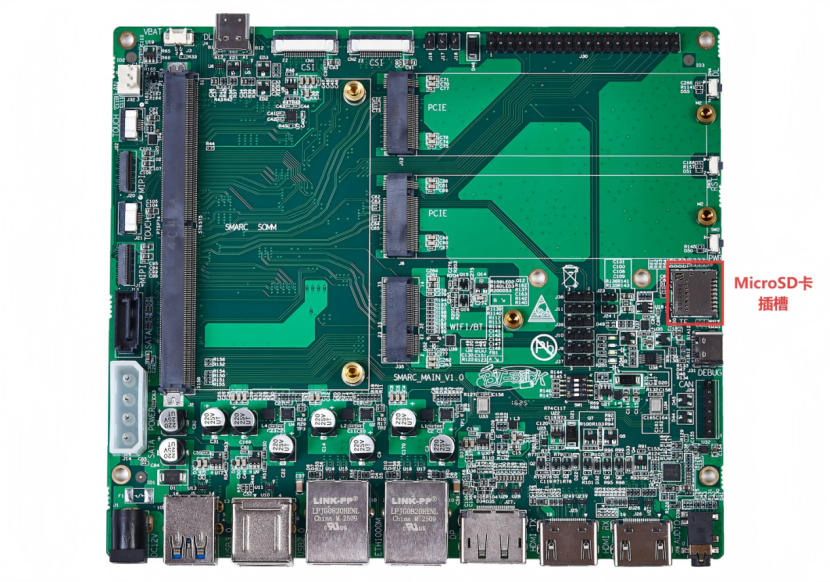

SSOM-K1 supports SD card boot and reserves a MicroSD card slot on the baseboard. If you want to use card boot, after following the steps to burn the system image below, you can directly insert the card into the Micro SD card slot on the SSOM-3588 baseboard. We recommend that the Micro SD card is at least 32GB or larger.

alt text

Product Model	Recommended Specs	Reference Product
Micro SD Card	32GB or larger

1.2 Display, Mouse, and Keyboard

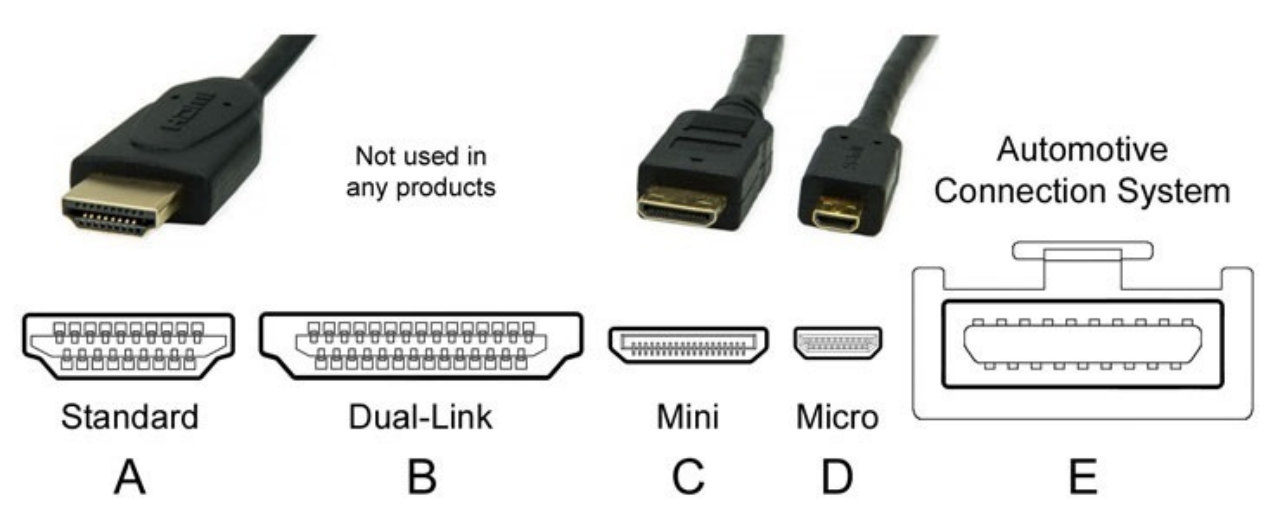

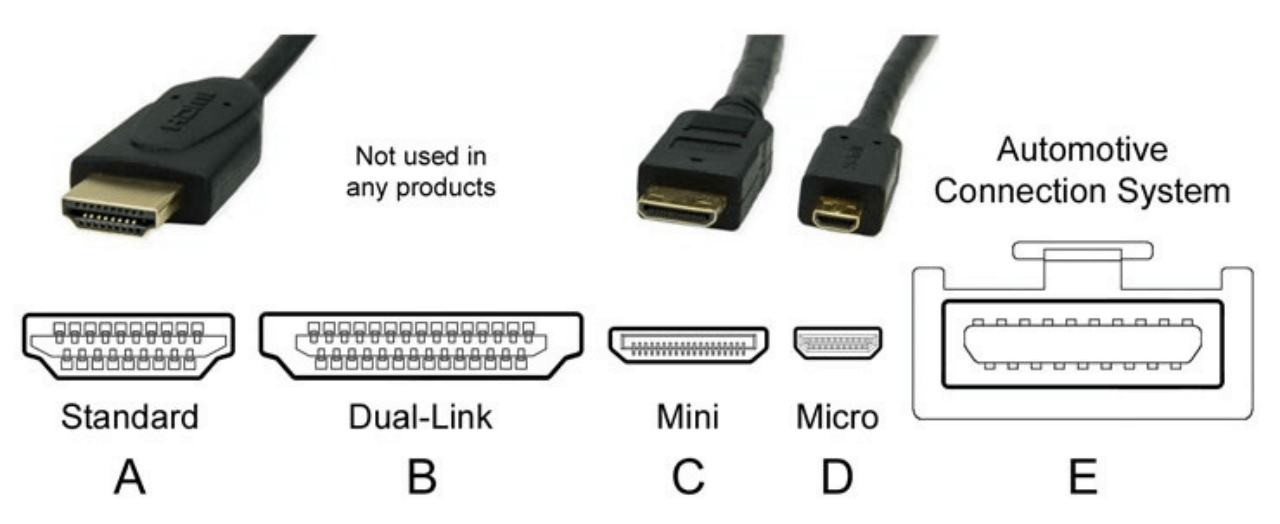

Display, mouse, and keyboard If you want to use the desktop system of SSOM-3588, you need to configure an HDMI display, keyboard, and mouse for it. You can use a regular computer monitor, keyboard, and mouse. You need to make sure that the HDMI cable connected to the baseboard is of Type-A connector. You may also need to ensure that the HDMI cable connected to the motherboard is of Type-A connector. If you are not familiar with HDMI connector types, you can refer to the information below:

alt text
