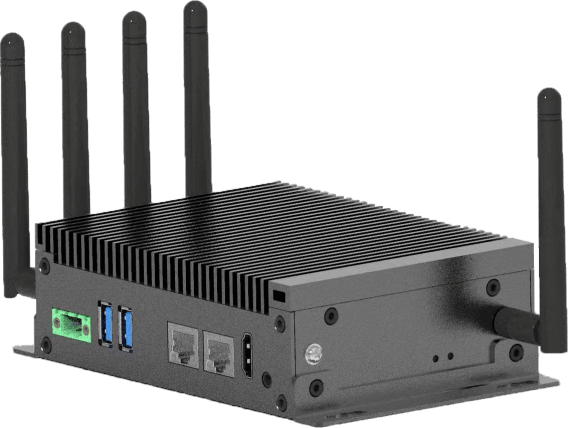

EPC1000 Edge Computing Box
The EPC1000 Edge Computing Box is a highly cost-effective edge computing device, designed based on the domestic Spacemit K1 RISC-V application processor. It integrates an octa-core RISC-V X60 AI CPU with a maximum frequency of 1.8GHz, the CPU integrates 2.0 Tops AI computing power, and supports 4K video encoding and decoding. It adopts a compact industrial design, integrated structure, small size, powerful functions, featuring high performance, low power consumption, and domestic advantages.
EPC1000 Edge Computing Box has rich functional interfaces, including dual gigabit Ethernet ports, 4 USB3.0, 1 3.5mm headphone jack, 2 isolated RS485, 2 isolated RS232, 4 isolated DI, 4 isolated DO, 1 isolated CAN, supports 4G/5G, supports Beidou navigation and positioning, supports Micro SD card expansion, supports NVMe SSD expansion. It can be connected to display devices via HDMI and MIPI DSI for video output; external cameras can be connected for face recognition, attribute detection, etc.
With rich interfaces and powerful functions, it can be widely used in industrial IoT edge control, smart transportation edge terminals, smart agriculture edge monitoring and control, security monitoring edge analysis nodes, vehicle-mounted mobile edge computing terminals, environmental monitoring and emergency terminals, as well as smart commercial display and edge interaction terminals.
Application Scenarios
Specifications
| Processor | CPU | Octa-core RISC-V X60 AI CPU, up to 1.8GHz, compliant with RISC-V 64GCVB architecture and RVA22 standard |
|---|---|---|
| GPU | IMG BXE-2-32@819MHz, 32KB SLC, supports OpenCL3.0/OpenGL ES 3.2/Vulkan1.3 | |
| VPU | Video decoding: 4K@60fps (H.265/H.264/VP8/VP9/MPEG4/MPEG2) Video encoding: 4K@30fps (H.265/H.264/VP8/VP9) | |
| AI Computing Power | 2.0TOPS | |
| Memory | RAM | 4GB/8GB LPDDR4X |
| Storage | 32GB/64GB eMMC 5.1 Supports 1x Micro SD card expansion Supports 1x 2280 NVMe SSD expansion | |
| I/O | Ethernet | 2x Gigabit Ethernet ports |
| USB | 4x USB3.0 | |
| Video Output | 1x HDMI port, supports up to 1080P@60fps output 1x MIPI DSI port, supports up to 1080P@60fps output | |
| Audio Output | 1x 3.5mm headphone jack | |
| CAN | 1x isolated CAN | |
| RS485 | 2x isolated RS485 | |
| RS232 | 2x isolated RS232 | |
| DI | 4x isolated DI | |
| DO | 4x isolated DO, default output level can be set | |
| Micro SD Slot | 1x | |
| SIM Slot | 1x, supports 4G/5G | |
| Debug | 1x USB-C debug port | |
| Fan | 1x 3Pin fan connector | |
| RTC | Supports internal RTC | |
| Antenna | 5x antenna connectors, 4 for 4G/5G, 1 for GPS/BDS | |
| Buttons | 1x Reset button, 1x Recover button, 1x Power button | |
| Indicators | 1x Power indicator, 1x Status indicator | |
| General | Power | DC 9V~36V |
| Operating Temp | -20 ~ +75 °C | |
| Operating Humidity | 95% relative humidity, non-condensing | |
| Dimensions | 164.0x100.0x45.0mm | |
| OS | Bianbu Linux/Open Harmony |

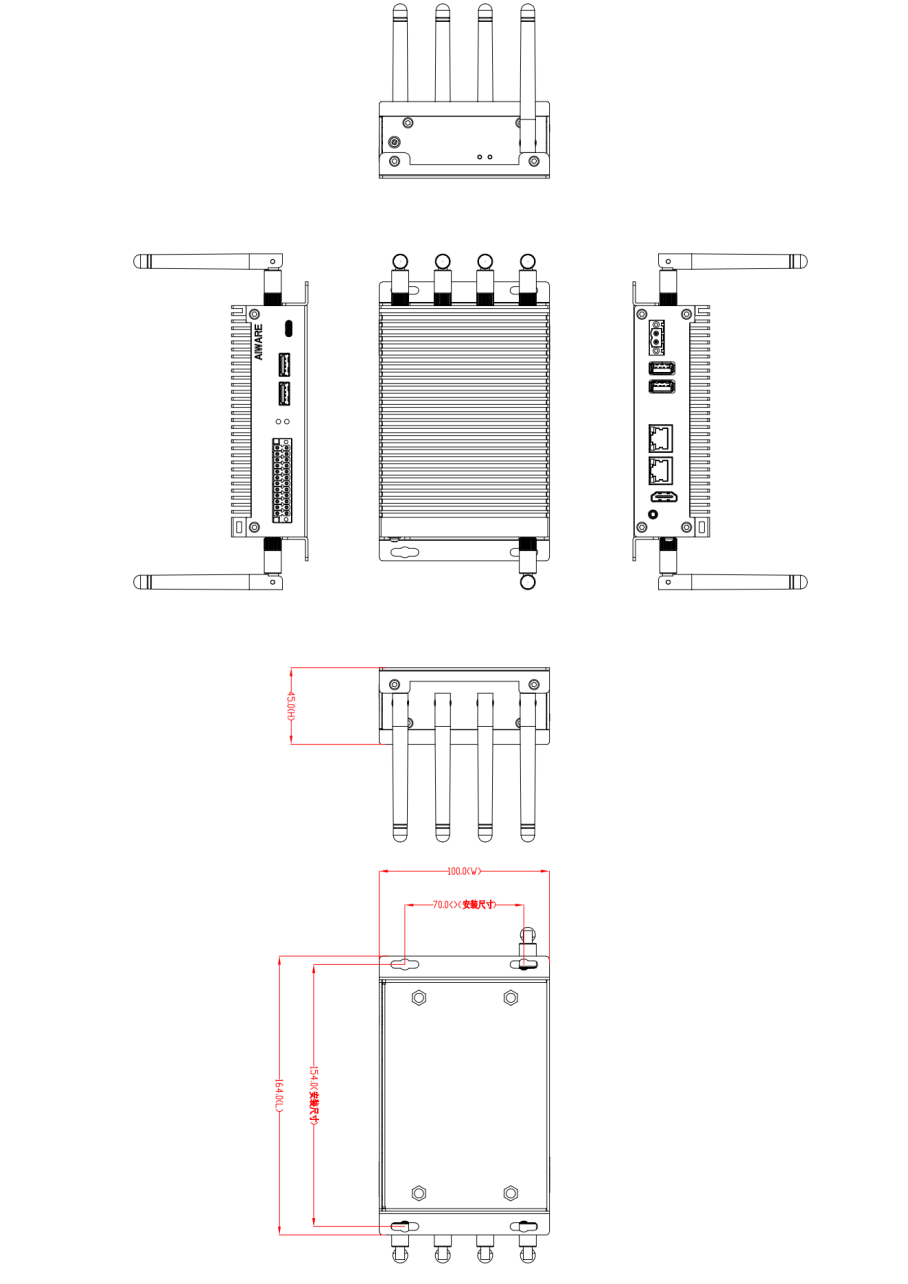

Six Views of the Product
