Product Introduction

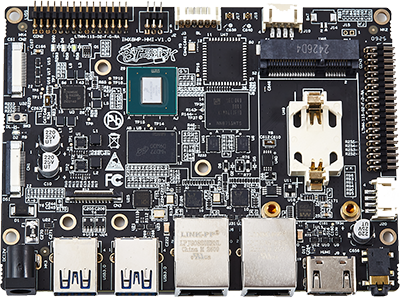

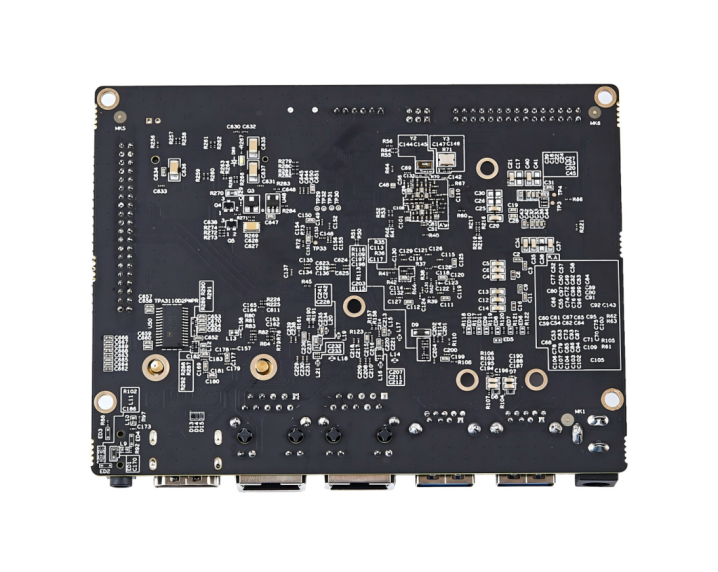

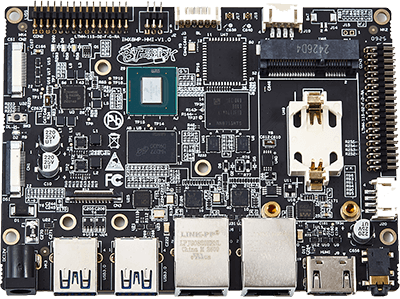

IMX8MP-HMI is a high-performance development board developed and designed based on the NXP i.MX 8M Plus processor. It integrates a quad-core ARM Cortex-A53 and a single-core ARM Cortex-M7 CPU, with a maximum frequency of up to 1.8 GHz. It features a 2.3 TOPS NPU, dual image signal processors, and a dual-core GPU engine. It supports HDMI, MIPI-DSI, and LVDS display outputs, as well as 1080p@60fps video encoding and decoding, making it suitable for a wide range of applications such as industrial automation, smart devices, multimedia processing, and edge computing.

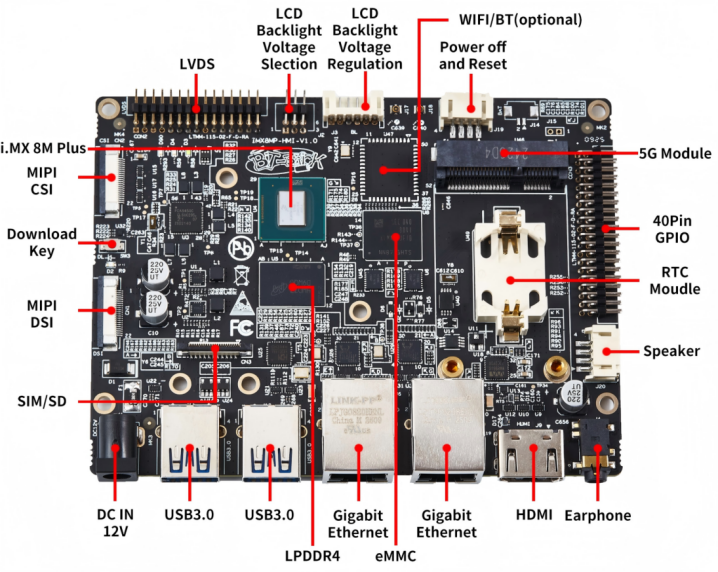

IMX8MP-HMI provides a wealth of interfaces, such as USB3.0, PCIe, HDMI 2.0a, MIPI-CSI, MIPI-DSI, LVDS, 5G, RTC, and dual Gigabit Ethernet, meeting diverse functional expansion needs. It offers developers a flexible and efficient platform for rapid prototyping, system evaluation, and early technology verification.
Functional Block Diagram
规格参数
| 参数 | 描述 |
|---|---|
| CPU | NXP i.MX 8M Plus, 四核ARM Cortex-A53@1.8GHz + Cortex-M7@800MHz |
| GPU | GC520L 2D and GC7000UL 3D GPU, 支持OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan |
| NPU | 2.3 TOPS |
| VPU | 解码: 1080p@60fps(H.265/H.264/VP9/VP8)编码: 1080p@60fps(H.265/H.264) |
| RAM | 2GB/4GB LPDDR4 SDRAM |
| Flash | 16GB/32GB eMMC |
| PCIe | 1x PCIe |
| 以太网 | 2x Gigabit Ethernet |
| USB | 2x USB3.0, 2xUSB2.0 |
| UART | 3x |
| I2C | 2x |
| SPI | 2x |
| CAN FD | 2x |
| PWM | 4x |
| MIPI DSI | 1x |
| MIPI CSI | 1x |
| HDMI | 1x HDMI2.0a |
| LVDS | 1x |
| RTC | 1x |
| 5G | 1x |
| GPIO | 10x |
| Audio | 1x 3.5mm Earphone interface; 1x Speaker header |
| 电源 | DC 12V |
| 工作温度 | -20 ~ 75 °C |
| 尺寸（长X宽） | 120 x 90mm |
| 操作系统 | Linux |

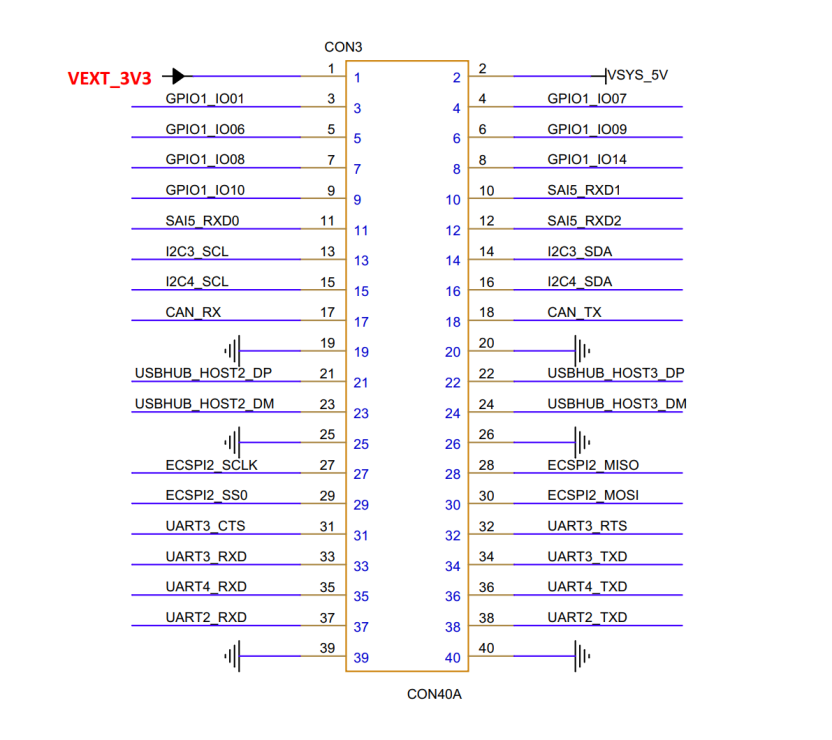

引脚定义

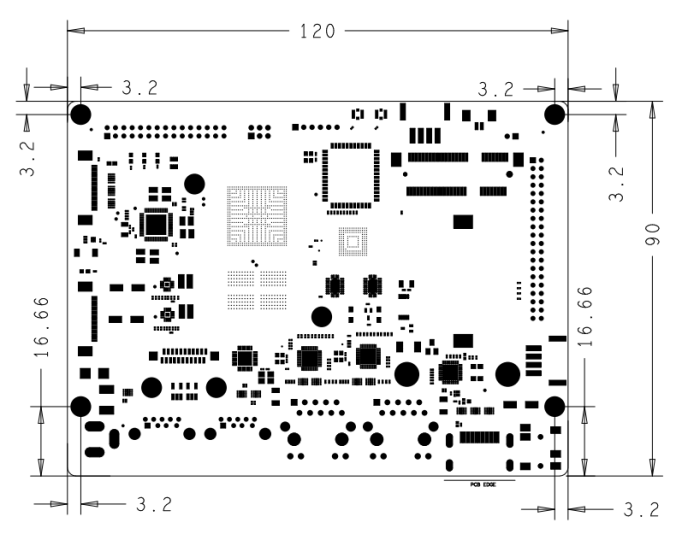

Mechanical Dimensions
