K3-CoM260 Datasheet

60 TOPS AI Compute System-on-Module (SoM)

PDF Version

Revision History​

VersionDateDescription
V1.22026.07.10Updated power-supply requirements and note
V1.12026.07.09Updated wording and formatting
V1.02026.04.30Initial release

About This Document​

This document describes the basic specifications and hardware features of the K3-CoM260. It is intended to help developers quickly understand the module specifications and carry out K3-CoM260 application and product development more accurately and efficiently.

This document is primarily intended for:

  • Product managers
  • Hardware engineers
  • Other related engineering personnel

1. Product Overview​

1.1 Introduction​

The K3-CoM260 is the first gold-finger package product launched by SpacemiT. It integrates the K3 RISC-V AI CPU, LPDDR5, GPHY, and other passive components.

The K3-CoM260 supports multiple operating systems and development platforms, including SpacemiT's native Bianbu OS, Ubuntu, Linux, and OpenHarmony. Together with a full-stack AI development toolkit, it can meet a wide range of AI development needs.

The K3-CoM260 provides a rich set of interfaces, including MIPI-DSI, MIPI-CSI, DP 1.2, SDIO 3.0, eSPI, SPI, I2S, I2C, CAN-FD, PWM, UART, USB 2.0, USB 3.0, PCIe 3.0, and GMAC. With its high performance and extensive I/O resources, the K3-CoM260 is a strong choice for RISC-V edge AI applications and product development.

1.2 Key Features​

  • Outstanding CPU performance

    8 high-performance X100 compute cores combined with 8 A100 AI cores deliver more than 130 KDMIPS of CPU computing power. The X100 achieves SPECint2006 > 9.0/GHz per core, with a maximum frequency of 2.4 GHz.

  • Heterogeneous integrated AI computing Delivers 60 TOPS of AI computing power. Its ultra-wide parallel AI cores provide powerful general-purpose AI acceleration, enabling rapid integration with mainstream AI ecosystems. Local inference performance for 7B large models exceeds 10 tokens/s.

  • Latest RISC-V architecture with massive parallel computing capability The A100 supports RVV 1.0 parallel computing up to 1024 bits and complies with the latest RVA23 Profile and Vector Crypto standards.

  • Rich I/O expansion interfaces Integrates multiple high-speed expansion interfaces to flexibly support a wide range of expansion needs, including 8 PCIe lanes, 3 USB 3.0 ports, and 1 GMAC interface.

  • Comprehensive hardware virtualization

    Supports comprehensive hardware virtualization with RV Hypervisor 1.0, RV AIA, and RV IOMMU extensions, covering CPU, memory, interrupts, and I/O.

  • Advanced security protection Supports M/S/U processor privilege levels, hardware protection against attacks such as Spectre and RowHammer, and hardware security technologies compliant with SM2, SM3, and SM4.

  • Industrial-grade compliance The CPU cores, multi-level cache, and SRAM support ECC design, enabling stable and reliable sustained compute performance over an ambient temperature range of $-40^\circ\mathrm C$ to $85^\circ\mathrm C$ and meeting the stringent requirements of industrial applications.

1.3 Applications​

  • AI edge computing
  • Integrated large-model inference systems
  • Intelligent robots
  • Product block diagrams

1.4 Ordering Information​

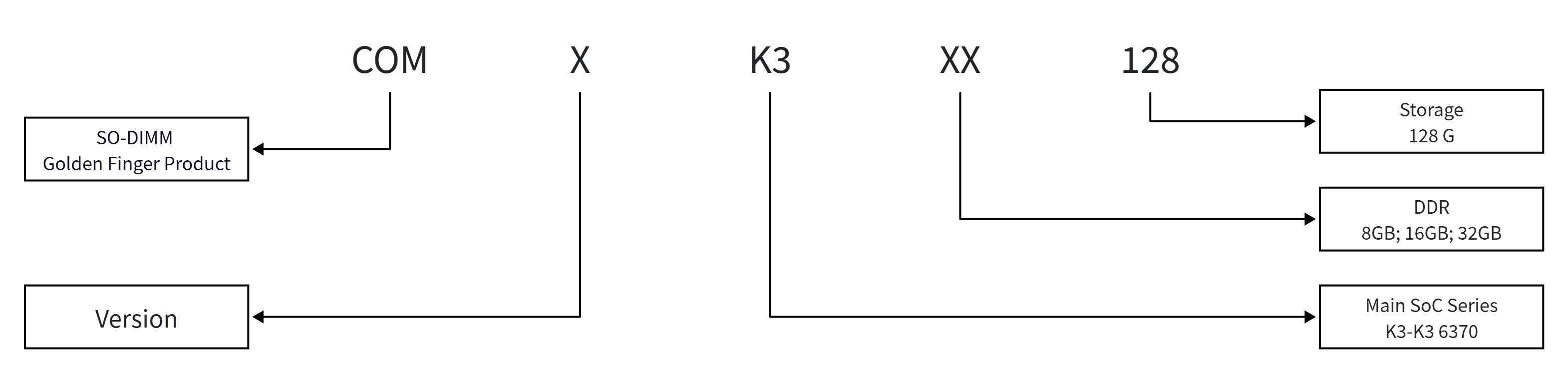

The figure below shows the naming convention for the ordering part number, which consists of the following sections.

The table below lists the specific part numbers, main SoC model, and corresponding DDR capacity.

Part NumberMain SoCDDR Capacity
COM3K308128K38GB
COM3K316128K316GB
COM3K332128K332GB

2. Block Diagram​

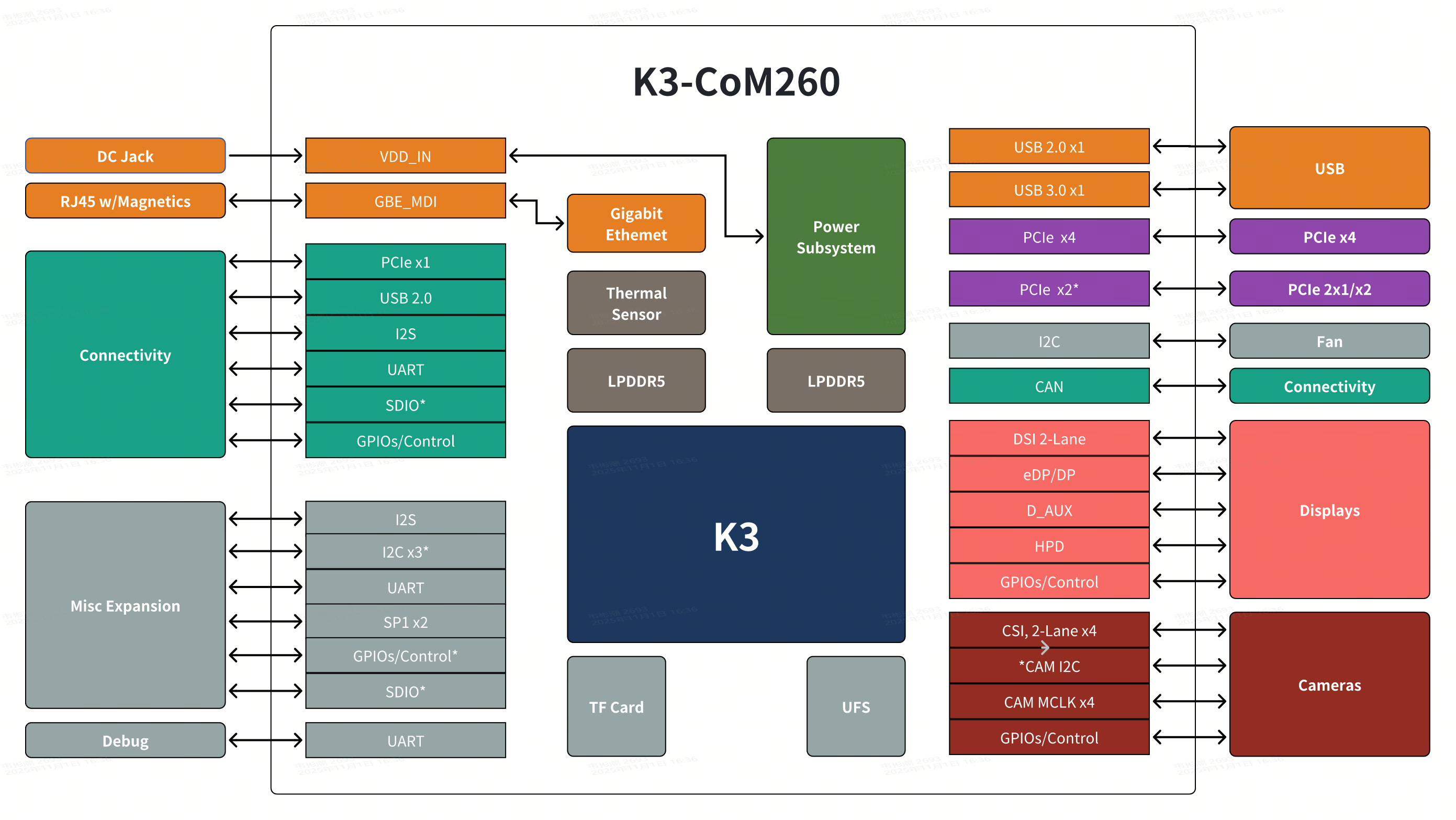

The block diagram of the K3-CoM260 is shown below.

Note: For detailed technical parameters of each module, refer to the corresponding K3 Datasheet.

2.1 Interface Definitions​

The tables below list the main interfaces of the K3-CoM260 and their related characteristics.

MIPI_DSI​

Signal NameTypeDescription
MIPI_DSI1_LANEx_DP[1:0]ODSI1 DATA LANE ±
MIPI_DSI1_LANEx_DNx[1:0]ODSI1 DATA LANE ±
MIPI_DSI1_CLKPODSI1 Clock LANE ±
MIPI_DSI1_CLKNODSI1 Clock LANE ±

MIPI_CSI​

Signal NameTypeDescription
MIPI_CSI0_DPx[1:0]ICSI0 DATA LANE ±
MIPI_CSI0_DNx[1:0]ICSI0 DATA LANE ±
MIPI_CSI1_DPx[3:0]ICSI1 DATA LANE ±
MIPI_CSI1_DNx[3:0]ICSI1 DATA LANE ±
MIPI_CSI2_DPx[1:0]ICSI2 DATA LANE ±
MIPI_CSI2_DNx[1:0]ICSI2 DATA LANE ±
MIPI_CSI3_DxP[1:0]ICSI3 DATA LANE ±
MIPI_CSI3_DxN[1:0]ICSI3 DATA LANE ±
MIPI_CSIx_CLKN[3:0]OCSI Clock LANE ±
MIPI_CSIx_CLKP[3:0]OCSI Clock LANE ±

DP 1.2​

Signal NameTypeDescription
EDP1_TXxN[3:0]OEDP1 DATA LANE ±
EDP1_TXxP[3:0]O
DP1_AUXNOEDP1 Auxiliary LANE ±
DP1_AUXPO

eMMC​

Signal NameTypeDescription
EMMC_Dx[7:0]I/OeMMC DATA
EMMC_CLKI/OeMMC Clock
EMMC_CMDI/OeMMC command
EMMC_DSI/OeMMC data strobe

SDIO 3.0​

Signal NameTypeDescription
MMC1_DATx[3:0]I/OSD Card DATA
MMC1_CLKI/OSD Card Clock
MMC1_CMDI/OSD Card Command
MMC2_DATx[3:0]I/OSDIO DATA
MMC2_CLKI/OSDIO Clock
MMC2_CMDI/OSDIO Command

eSPI I/O​

Signal NameTypeDescription
ESPI0_Dx[3:0]I/OFour data lines for command, address, and data transfer.
Operates in single-, dual-, or quad-I/O modes depending on configuration.
ESPI0_CS0IChip Select, active low.
Used by the master to select a specific slave device.
ESPI0_CLKIeSPI clock signal generated by the master.
Synchronizes data transfer between master and slave.

SPI​

Signal NameTypeDescription
SPix[2:0]_SCLKI/OSynchronous Serial Port Clock 0/2
The serial bit clock can be configured as an output (master mode operation) or an input (slave mode operation).
SPix[2:0]_FRMI/OSynchronous Serial Port Frame 0/2
The serial frame sync can be configured as an output (master mode operation) or an input (slave mode operation).
SPix[2:0]_TXDOSynchronous Serial Port Transmit Data 0/2
Serial data driven out synchronously with the bit clock.
SPix[2:0]_RXDISynchronous Serial Port Receive Data 0/2
Serial data latched using the bit clock.
R.SPI0_SCLKI/ORT24 Synchronous Serial Port Clock 0/2
The serial bit clock can be configured as an output (master mode operation) or an input (slave mode operation).
R.SPI0_FRMI/ORT24 Synchronous Serial Port Frame 0/2
The serial frame sync can be configured as an output (master mode operation) or an input (slave mode operation).
R.SPI0_TXDORT24 Synchronous Serial Port Transmit Data 0/2
Serial data driven out synchronously with the bit clock.
R.SPI0_RXDIRT24 Synchronous Serial Port Receive Data 0/2
Serial data latched using the bit clock.

I2S​

Signal NameTypeDescription
I2S0_SCLKI/OI2S Continues Serial Clock
I2S0_LRCKI/OI2S Left–Right Clock
I2S0_TXDOI2S Serial Transmit Data
I2S0_RXDII2S Serial Receive Data
I2Sx[5:2]_SCLKI/OI2S Continues Serial Clock
I2Sx[5:2]_LRCKI/OI2S Left–Right Clock
I2Sx[5:2]_TXDOI2S Serial Transmit Data
I2Sx[5:2]_RXDII2S Serial Receive Data

I2C​

Signal NameTypeDescription
I2Cx[6:0]_SDAI/OI2C Serial Data
I2Cx[6:0]_SCLI/OI2C Serial Clock
R.I2Cx[1:0]_SDAI/ORT24 domain I2C Serial Data
R.I2Cx[1:0]_SCLI/ORT24 domain I2C Serial Clock

CAN-FD​

Signal NameTypeDescription
CANx[4:0]_TXOCAN Transmit Data
CANx[4:0]_RXICAN Receive Data
R.CAN0_TXORT24 domain CAN Transmit Data
R.CAN0_RXIRT24 domain CAN Receive Data
R.CAN2_TXORT24 domain CAN Transmit Data
R.CAN2_RXIRT24 domain CAN Receive Data

FAN​

Signal NameTypeDescription
PWMOFAN Pulse-width modulation
TACHIFAN Tachometer

UART​

Signal NameTypeDescription
UART0_TXDODEBUG UART Transmit Data
UART0_RXDIDEBUG UART Receive Data
UART1_TXDOUART1 Transmit Data
UART1_RXDIUART1 Receive Data
UART1_CTS_NIUART1 Clear-to-Send
UART1_RTS_NOUART1 Request-to-Send
UARTx[10:3]_TXDOUART Transmit Data
UARTx[10:3]_RXDIUART Receive Data
UARTx[10:3]_CTS_NIUART Clear-to-Send
UARTx[10:3]_RTS_NOUART Request-to-Send
R.UART0_TXDORT24 domain UART Transmit Data
R.UART0_RXDIRT24 domain UART Receive Data
R.UARTx[5:2]_TXDORT24 domain UART Transmit Data
R.UARTx[5:2]_RXDIRT24 domain UART Receive Data

GPIO​

Signal NameTypeDescription
GPIO[1]/[4]I/O3.3 V GPIO domain
GPIO[2]/[3]/[5]I/O1.8 V GPIO domain

USB 2.0​

Signal NameTypeDescription
USB20_A_DRD_USB_MI/ODownload USB D±, typically used for USB 2.0
USB20_A_DRD_USB_PI/O

USB 3.0​

Signal NameTypeDescription
USB20_A_DRD_USB_MI/ODownload USB D±, typically used for download
USB20_A_DRD_USB_PI/O
USB_DRD_RXxN[1:0]I/OUSB 3.0 receive data ± for download
USB_DRD_RXxP[1:0]I/O
USB_DRD_TXxN[1:0]I/OUSB 3.0 transmit data ± for download
USB_DRD_TXxP[1:0]I/O

PCIe 3.0​

Signal NameTypeDescription
PCIE_RXxN[1:0]I/OPCIe receive data ±, typically used for PCIeB and PCIeC
PCIE_RXxP[1:0]I/O
PCIE_TXxN[1:0]I/OPCIe transmit data ±, typically used for PCIeB and PCIeC
PCIE_TXxP[1:0]I/O
PCIE_REFCLK_NI/OPCIe clock lane ±, typically used for PCIeA, PCIeB, and PCIeC
PCIE_REFCLK_PI/O

GMAC​

Signal NameTypeDescription
GMAC1_RXDVIGMAC1 Receive Data Valid
GMAC1_RX_Dx[3:0]IGMAC1 Receive Data
GMAC1_RX_CLKIGMAC1 Receive Clock
GMAC1_TX_Dx[3:0]OGMAC1 Transmit Data
GMAC1_TX_ENOGMAC1 Transmit Data Enable
GMAC1_MDCI/OGMAC1 Configuration interface clock
GMAC1_MDIOI/OGMAC1 Configuration interface I/O
GMAC1_INT_NI/OGMAC1 Interrupt

3. Pin Definitions​

3.1 Physical Pinout​

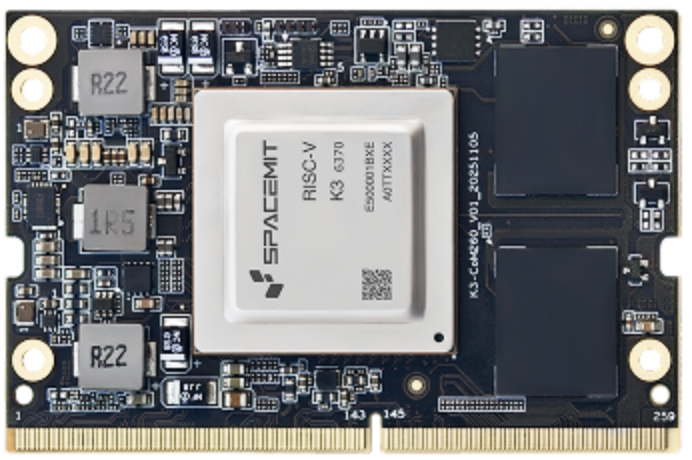

The figure below shows the physical view of the K3-CoM260 module.

3.2 Pin Package​

This section describes the pin package information of the K3-CoM260 in detail.

K3-CoM260 uses the following package specifications:

  • Interface: gold finger (260-pin SODIMM)
  • Dimensions: 69.6 mm × 45.0 mm × 1.2 mm
  • Pin pitch: 0.5 mm

The table below shows the pin layout of the K3-CoM260.

Pin namePin NO.Pin NO.Pin Name
GND12GND
MIPI_CSI0_DN034MIPI_CSI1_DN0
MIPI_CSI0_DP056MIPI_CSI1_DP0
GND78GND
MIPI_CSI0_CLKN910MIPI_CSI1_CLKN
MIPI_CSI0_CLKP1112MIPI_CSI1_CLKP
GND1314GND
MIPI_CSI0_DN11516MIPI_CSI1_DN1
MIPI_CSI0_DP11718MIPI_CSI1_DP1
GND1920GND
MIPI_CSI2_DN22122MIPI_CSI2_DN0
MIPI_CSI2_DP22324MIPI_CSI2_DP0
GND2526GND
MIPI_CSI3_CLKN2728MIPI_CSI2_CLKN
MIPI_CSI3_CLKP2930MIPI_CSI2_CLKP
GND3132GND
MIPI_CSI2_DN33334MIPI_CSI2_DN1
MIPI_CSI2_DP33536MIPI_CSI2_DP1
GND3738GND
USB_DRD_RX1N3940PCIE4/USB3-D_RX0N
USB_DRD_RX1P4142PCIE4/USB3-D_RX0P
GND4344GND
USB_DRD_TX1N4546PCIE4/USB3-D_TX0N
USB_DRD_TX1P4748PCIE4/USB3-D_TX0P
GND4950GND
USB_DRD_RX2N5152PCIE4_REFCLK_N
USB_DRD_RX2P5354PCIE4_REFCLK_P
GND5556GND
USB_DRD_TX2N5758PCIE3/USB3-C_RX0N
USB_DRD_TX2P5960PCIE3/USB3-C_RX0P
GND6162GND
EDP1_TX0N6364PCIE3/USB3-C_TX0N
EDP1_TX0P6566PCIE3/USB3-C_TX0P
GND6768GND
EDP1_TX1N6970MIPI_DSI1_D0N
EDP1_TX1P7172MIPI_DSI1_D0P
GND7374GND
EDP1_TX2N7576MIPI_DSI1_CLKN
EDP1_TX2P7778MIPI_DSI1_CLKP
GND7980GND
EDP1_TX3N8182MIPI_DSI1_D1N
EDP1_TX3P8384MIPI_DSI1_D1P
GND8586GND
GPIO[3]_58 \{ GMAC2_PPS / R.UART2_RXD / R.CAN0_TXD / PCIEC_PERSTN / R.I2C0_SDA / PWM16 \}8788GPIO[3]_74 \{ R.GMAC3_CLK_REF / CLK_CAMCK2 / ESPI0_RESETN / VCXO_REQ / USB30H-1_DRV / R.I2C0_SCL \}
GPIO[5]_104 \{ SSP0_TXD / SSP2_TXD / USB30H-1_DRV / CAN3_RXD / PCIED_PWRDET \}8990GPIO[3]_67 \{ R.GMAC3_TX_CLK / R.GPIO[22] / R.SSP1_FRM / CLK_CAMCK4 / PCIEC_PWRDET / R.PWM3 \}
GPIO[5]_106 { SSP0_SCLK / SSP2_SCLK / R.I2C1_SDA / I2C3_SDA / PCIED_WAKEN / PWM18 }9192GPIO[3]_53 { GMAC2_TX_EN / UART3_CTSN / SSP0_TXD / PCIEA_EINT / PWM11 }
GPIO[5]_105 { SSP0_RXD / SSP2_RXD / R.I2C1_SCL / I2C3_SCL / PCIED_PERSTN / PWM17 }9394GPIO[1]_02 { GMAC0_RX_D1 / SSPA5_TXD / PWM2 / ESPI0_D2 / I2C1_SCL }
GPIO[5]_107 { SSP0_FRM / SSP2_FRM / R.CAN4_TXD / USB30-0_DIR / PCIED_CLKREQN / PWM19 }9596GPIO[3]_72 { R.GMAC3_MDIO / SSPA4_RXD / ESPI0_CS / E/DP1_HPD / DSI0_TE }
GPIO[3]_70 { R.GMAC3_TX_EN / SSPA4_FRM / ESPI0_D2 / IR1_RX / MNCLK_OUT1 / SSP3_SCLK }9798EDP1_AUXN
GPIO[3]_48 { GMAC2_TX_D0 / UART6_TXD / CAN1_RXD / PCIEA_AUXEN / I2C0_SCL / PWM6 }99100EDP1_AUXP
GPIO[3]_49 { GMAC2_TX_D1 / UART6_RXD / CAN1_TXD / PCIEA_PWRDET / I2C0_SDA / PWM7 }101102GND
GPIO[3]_51 { GMAC2_TX_D2 / UART6_RTS / CAN2_RXD / PCIEA_ATNLED / I2C4_SDA / PWM9 }103104GPIO[3]_60 { R.GMAC3_RX_D0 / R.UART5_RXD / R.SSP0_TXD / PCIEC_CLKREQN / R.I2C1_SDA / PWM18 }
GPIO[3]_50 { GMAC2_TX_CLK / UART6_CTS / CAN2_TXD / PCIEA_MRLN / I2C4_SCL / PWM8 }105106GPIO[3]_62 { R.GMAC3_RX_CLK / R.SSP0_SCLK / PCIEC_ATTN / I2C6_SDA }
GND107108GPIO[3]_61 { R.GMAC3_RX_D1 / R.SSP0_RXD / PCIEC_PRSNT2N / I2C6_SCL / PWM19 }
USB20_A_DRD_USB_M109110GPIO[3]_63 { R.GMAC3_RX_D2 / R.GPIO[18] / R.SSP0_FRM / PCIEC_PWRCTN / I2C5_SCL }
USB20_A_DRD_USB_P111112GPIO[3]_71 { R.GMAC3_MDC / SSPA4_TXD / ESPI0_D3 / R.IR0_RX / MNCLK_OUT2 / SSP3_FRM }
GND113114GPIO[3]_45 { GMAC2_RX_CLK / UART10_RXD / CAN0_RXD / PCIEA_PRSNT2N / PWM3 }
USB20_B_USB_M115116GPIO[3]_75 { R.GMAC3_PPS / CLK_CAMCK1 / ESPI0_ALERT / VCXO_OUT / USB30H-2_DRV / R.I2C0_SDA }
USB20_B_USB_P117118GPIO[5]_122 { MMC2_DAT[3] / SSPA1_CLK / UART6_TXD / R.UART0_TXD / PCIEB_ATNLED }
GND119120GPIO[3]_44 { GMAC2_RX_D1 / UART10_TXD / CAN0_TXD / PCIEA_CLKREQN / PWM2 }
USB20_HOST_M121122GPIO[4]_85 { CLK_CAMCK3 / SSPA0_SYSCLK / UART9_RXD / USB30-2_DRV / PCIEA_AUXEN }
USB20_HOST_P123124GPIO[4]_77 { R.SSPA0_FRM / SSPA2_FRM / UART8_RXD / CAN0_RXD / PCIEE_WAKEN / I2C0_SDA }
GND125126GPIO[3]_57 { GMAC2_CLK_REF / R.UART2_TXD / R.CAN0_RXD / EDP0_HPD / R.I2C0_SCL / PWM15 }
GPIO[3]_59 { R.GMAC3_RXDV / R.UART5_TXD / PCIEC_WAKEN / R.I2C1_SCL / PWM17 }127128GPIO[3]_73 { R.GMAC3_INT_N / SSPA4_SYSCLK / ESPI0_CLK / R.IR1_RX / USB20_HOST_DRV }
GND129130GPIO[5]_103 { / SSPA3_SYSCLK / USB20_HOST_DRV / CAN3_TXD / PCIED_AUXEN / I2C1_SDA }
PCIE0_RX0N131132GND
PCIE0_RX0P133134PCIE0_TX0N
GND135136PCIE0_TX0P
PCIE0_RX1N137138GND
PCIE0_RX1P139140PCIE0_TX1N
GND141142PCIE0_TX1P
GPIO[4]_87 { R.SSP0_RXD / R.ESPI0_D1 / UART4_RXD / CAN2_RXD / PCIEA_MRLN / PCIEB_PRSNT2N }143144GND
GPIO[4]_86 { R.SSP0_TXD / R.ESPI0_D0 / UART4_TXD / CAN2_TXD / PCIEA_PWRDET / USB30-0_DIR }145146GND
GND147148PCIE1_TX0N
PCIE1_RX0N149150PCIE1_TX0P
PCIE1_RX0P151152GND
GND153154PCIE1_TX1N
PCIE1_RX1N155156PCIE1_TX1P
PCIE1_RX1P157158GND
GND159160PCIE0_REFCLK_N
PCIE2/USB3-B_RX0N161162PCIE0_REFCLK_P
PCIE2/USB3-B_RX0P163164GND
GND165166PCIE2/USB3-B_TX0N
PCIE5_RX0N167168PCIE2/USB3-B_TX0P
PCIE5_RX0P169170GND
GND171172PCIE5_TX0N
PCIE5_REFCLK_N173174PCIE5_TX0P
PCIE5_REFCLK_P175176GND
GND177178GPIO[3]_42 { GMAC2_RXDV / UART0_TXD / PCIEA_PERSTN / I2C0_SCL / PWM0 }
GPIO[4]_80 { R.SSPA0_SYSCLK / SSPA2_SYSCLK / R.UART4_TXD / CAN3_RXD / PCIEA_WAKEN / I2C2_SCL }179180GPIO[4]_81 { SSP0_TXD / SSPA0_CLK / R.UART4_RXD / CAN3_TXD / PCIEA_CLKREQN / I2C2_SDA }
GPIO[4]_79 { R.SSPA0_RXD / SSPA2_RXD / UART8_RTS / PCIEA_PERSTN / I2C1_SDA }181182GPIO[4]_78 { R.SSPA0_TXD / SSPA2_TXD / UART8_CTS / PCIEE_CLKREQN / I2C1_SCL }
GPIO[4]_76 { R.SSPA0_CLK / SSPA2_CLK / UART8_TXD / CAN0_TXD / PCIEE_PERSTN / I2C0_SCL }183184PHY1_MDI0-
GPIO[1]_00 { GMAC0_RXDV / SSPA5_CLK / PWM0 / IR1_RX / ESPI0_D0 / I2C0_SCL }185186PHY1_MDI0+
GPIO[1]_01 { GMAC0_RX_D0 / SSPA5_FRM / PWM1 / R.IR1_RX / ESPI0_D1 / I2C0_SDA }187188PHY1_LED1/CFG_LDO0
GPIO[4]_82 { SSP0_TXD / SSPA0_FRM / UART9_CTSN / UART5_RXD / PCIEA_PRSNT2N / I2C3_SCL }189190PHY1_MDI1-
GPIO[4]_83 { SSP0_SCLK / SSPA0_TXD / UART9_RTSN / UART5_TXD / PCIEA_ATTN / I2C3_SDA }191192PHY1_MDI1+
GPIO[5]_113 { SSP1_SCLK / SSPA0_TXD / R.GPIO[30] / PCIEB_PERSTN / }193194PHY1_LED2/CFG_LDO1
GPIO[5]_114 { SSP1_FRM / SSPA0_RXD / R.GPIO[31] / PCIEB_WAKEN / }195196PHY1_MDI2-
GPIO[5]_112 { SSP1_RXD / SSPA0_FRM / UCIE_DESDA / I2C4_SDA / USB30-3_DRV / R.PWM9 }197198PHY1_MDI2+
GPIO[5]_111 { SSP1_TXD / SSPA0_CLK / UCIE_DESCL / I2C4_SCL / USB30-0_INT / R.PWM8 }199200GND
GND201202PHY1_MDI3-
GPIO[5]_121 { UART1_TXD / I2C2_SDA / R.CAN3_RXD / CAN4_RXD / PCIEB_MRLN }203204PHY1_MDI3+
GPIO[5]_120 { UART1_RXD / I2C2_SCL / R.CAN3_TXD / CAN4_TXD / PCIEB_PWRDET }205206GPIO[5]_123 { MMC2_DAT[2] / SSPA1_FRM / UART6_RXD / R.UART0_RXD / PCIEB_PWRLED / }
GPIO[5]_118 { UART1_RTSN / USB30_DRD_DRV / R.GPIO[35] / PCIEB_PWRCTN }207208FAN_TACH(1V8)
GPIO[5]_119 { UART1_CTSN / USB30-0_INT / PCIEB_AUXEN }209210PMIC_32K_OUT(3V3)
GPIO[5]_124 { MMC2_DAT[1] / SSPA1_TXD / PCIED_PERSTN / E/DP0_HPD / PCIEB_EINT / }211212GPIO[3]_56 { GMAC2_INT_N / UART3_TXD / SSP0_FRM / R.UART3_TXD / PWM14 }
GPIO[4]_93 { R.GPIO[25] / R.ESPI0_ALERT / UART0_TXD / ESPI0_D2 / I2C5_SCL / R.PWM4 }213214GPIO[3]_69 { R.GMAC3_TX_D3 / SSPA4_CLK / ESPI0_D1 / E/DP1_HPD / DSI0_TE / SSP3_RXD }
GPIO[4]_94 { R.GPIO[26] / UART0_RXD / ESPI0_D3 / I2C5_SDA / R.PWM6 }215216GPIO[5]_125 { MMC2_DAT[0] / SSPA1_RXD / PCIED_WAKEN / E/DP1_HPD / PCIEB_EINTEG }
NA217218GPIO[5]_126 { MMC2_CMD / SSPA1_SYSCLK / PCIED_CLKREQN / I2C5_SCL / }
GPIO[1]_03 { GMAC0_RX_CLK / SSPA5_RXD / PWM3 / PCIED_PERSTN / ESPI0_D3 / I2C1_SDA }219220GPIO[5]_101 { SSP3_SCLK / SSPA3_TXD / UART4_CTS / CAN4_RXD / PCIED_ATTN / MNCLK_OUT1 }
GPIO[1]_05 { GMAC0_RX_D3 / PWM5 / PCIED_CLKREQN / ESPI0_CLK / I2C2_SCL }221222GPIO[5]_102 { SSP3_FRM / SSPA3_RXD / UART4_RTS / CAN4_TXD / PCIED_PWRCTN / I2C1_SCL }
GPIO[1]_12 { GMAC0_MDC / UART7_CTSN / CAN0_RXD / PCIEC_PERSTN / UART8_TXD / I2C4_SDA }223224GPIO[5]_100 { SSP3_RXD / SSPA3_FRM / UART4_RXD / R.CAN2_RXD / PCIED_PRSNT2N / CLK32K_OUT }
GPIO[1]_14 { GMAC0_INT_N / UART7_RXD / PWM14 / PCIEC_CLKREQN / MNCLK_OUT1 / I2C6_SCL }225226GPIO[5]_99 { SSP3_TXD / SSPA3_CLK / UART4_TXD / R.CAN2_TXD / CLK_CAMCK4 }
PCIE3_REFCLK_N227228GPIO[5]_127 { MMC2_CLK / PCIED_PRSNT2N / I2C5_SDA / USB30-2_DRV }
PCIE3_REFCLK_P229230FAN_PWM(1V8)
GND231232GPIO[3]_54 { GMAC2_MDC / UART3_RTSN / SSP0_RXD / PCIEA_EINTEG / I2C1_SCL / PWM12 }
GPIO[4]_88 { R.SSP0_SCLK / R.ESPI0_D2 / R.UART3_TXD / PCIEB_PERSTN / PCIEA_ATNLED / CAN1_RXD }233234GPIO[3]_55 { GMAC2_MDIO / UART3_RXD / SSP0_SCLK / R.UART3_RXD / I2C1_SDA / PWM13 }
VCC_RTC(5V)235236PWR_SSP_SCLK { GPIO[122] / UART0_TXD }
POWER_EN(5V)237238PWR_SSP_FRM { GPIO[123] / UART0_RXD }
PMIC_RST_OUTn(1V8)239240GPIO[4]_84 { SSP0_FRM / SSPA0_RXD / UART9_TXD / USB30-1_DRV / PCIEA_PWRCTN / DSI0_TE }
GND241242GND
GND243244GND
GND245246GND
GND247248GND
GND249250GND
VDD_IN(5V/20V)251252VDD_IN(5V/20V)
VDD_IN(5V/20V)253254VDD_IN(5V/20V)
VDD_IN(5V/20V)255256VDD_IN(5V/20V)
VDD_IN(5V/20V)257258VDD_IN(5V/20V)
VDD_IN(5V/20V)259260VDD_IN(5V/20V)

The table below lists the pin type definitions of the K3-CoM260.

PINPin definitionPin NO.Pad TypeIO power domainFunction for K3-CoM260_KITDefault function description
1GNDGGNDDigital core Ground
3MIPI_CSI0_DN0AG39IMIPI_CSI0_DN0CSI0 DATA0 LANEN
5MIPI_CSI0_DP0AG38IMIPI_CSI0_DP0CSI0 DATA0 LANEP
7GNDGGNDDigital core Ground
9MIPI_CSI0_CLKNAF36OMIPI_CSI0_CLKNCSI0 Clock LANEN
11MIPI_CSI0_CLKPAF37OMIPI_CSI0_CLKPCSI0 Clock LANEP
13GNDGGNDDigital core Ground
15MIPI_CSI0_DN1AF40IMIPI_CSI0_DN1CSI0 DATA1 LANEN
17MIPI_CSI0_DP1AF39IMIPI_CSI0_DP1CSI0 DATA1 LANEP
19GNDGGNDDigital core Ground
21MIPI_CSI2_DN2V39IMIPI_CSI2_DN2CSI2 DATA2 LANEN
23MIPI_CSI2_DP2V40IMIPI_CSI2_DP2CSI2 DATA2 LANEP
25GNDGGNDDigital core Ground
27MIPI_CSI3_CLKNW38OMIPI_CSI3_CLKNCSI3 Clock LANEN
29MIPI_CSI3_CLKPW39OMIPI_CSI3_CLKPCSI3 Clock LANEP
31GNDGGNDDigital core Ground
33MIPI_CSI2_DN3V36IMIPI_CSI2_DN3CSI2 DATA3 LANEN
35MIPI_CSI2_DP3V37IMIPI_CSI2_DP3CSI2 DATA3 LANEP
37GNDGGNDDigital core Ground
39USB_DRD_RX1NAT12IUSB_DRD_RX1NUSB3.0_DRD RX1 LANEN
41USB_DRD_RX1PAU12IUSB_DRD_RX1PUSB3.0_DRD RX1 LANEP
43GNDGGNDDigital core Ground
45USB_DRD_TX1NAY10OUSB_DRD_TX1NUSB3.0_DRD TX1 LANEN
47USB_DRD_TX1PAW10OUSB_DRD_TX1PUSB3.0_DRD TX1 LANEP
49GNDGGNDDigital core Ground
51USB_DRD_RX2NAW11IUSB_DRD_RX2NUSB3.0_DRD RX2 LANEN
53USB_DRD_RX2PAV11IUSB_DRD_RX2PUSB3.0_DRD RX2 LANEP
55GNDGGNDDigital core Ground
57USB_DRD_TX2NAW12OUSB_DRD_TX2NUSB3.0_DRD TX2 LANEN
59USB_DRD_TX2PAY12OUSB_DRD_TX2PUSB3.0_DRD TX2 LANEP
61GNDGGNDDigital core Ground
63EDP1_TX0NAT18ODP1_TX0NDP DATA0 LANEN
65EDP1_TX0PAU18ODP1_TX0PDP DATA0 LANEP
67GNDGGNDDigital core Ground
69EDP1_TX1NAW18ODP1_TX1NDP DATA1 LANEN
71EDP1_TX1PAY18ODP1_TX1PDP DATA1 LANEP
73GNDGGNDDigital core Ground
75EDP1_TX2NAW19ODP1_TX2NDP DATA2 LANEN
77EDP1_TX2PAV19ODP1_TX2PDP DATA2 LANEP
79GNDGGNDDigital core Ground
81EDP1_TX3NAW20ODP1_TX3NDP DATA3 LANEN
83EDP1_TX3PAY20ODP1_TX3PDP DATA3 LANEP
85GNDGGNDDigital core Ground
87GPIO[3]_58 {GMAC2_PPS/R.UART2_RXD/R.CAN0_TXD/PCIEC_PERSTN/R.I2C0_SDA/PWM16 }M36I1.8VUSB0_VBUS_DETGeneral purpose I/O3 58
89GPIO[5]_104 { SSP0_TXD / SSP2_TXD / USB30H-1_DRV / CAN3_RXD / PCIED_PWRDET / }AW27O1.8VSPI0_MOSISPI0_MOSI
91GPIO[5]_106 { SSP0_SCLK / SSP2_SCLK / R.I2C1_SDA / I2C3_SDA / PCIED_WAKEN / PWM18 }AP27O1.8VSPI0_SCKSPI0_SCK
93GPIO[5]_105 { SSP0_RXD / SSP2_RXD / R.I2C1_SCL / I2C3_SCL / PCIED_PERSTN / PWM17 }AR27I1.8VSPI0_MISOSPI0_MISO
95GPIO[5]_107 { SSP0_FRM / SSP2_FRM / R.CAN4_TXD / USB30-0_DIR / PCIED_CLKREQN / PWM19 }AY27I1.8VSPI0_CSSPI0_CS
97GPIO[3]_70 { R.GMAC3_TX_EN / SSPA4_FRM / ESPI0_D2 / IR1_RX / MNCLK_OUT1 / SSP3_SCLK }J40I1.8VSPI0_CS1General purpose I/O3 70
99GPIO[3]_48 { GMAC2_TX_D0 / UART6_TXD / CAN1_RXD / PCIEA_AUXEN / I2C0_SCL / PWM6 }J35O1.8VUART6_TXDUART6_TXD
101GPIO[3]_49 { GMAC2_TX_D1 / UART6_RXD / CAN1_TXD / PCIEA_PWRDET / I2C0_SDA / PWM7 }K35I1.8VUART6_RXDUART6_RXD
103GPIO[3]_51 { GMAC2_TX_D2 / UART6_RTS / CAN2_RXD / PCIEA_ATNLED / I2C4_SDA / PWM9 }M35I1.8VUART6_RTSUART6_RTS
105GPIO[3]_50 { GMAC2_TX_CLK / UART6_CTS / CAN2_TXD / PCIEA_MRLN / I2C4_SCL / PWM8 }L35O1.8VUART6_CTSUART6_RTS
107GNDGGNDDigital core Ground
109USB20_A_DRD_USB_MAU14I/OUSB20_A_DRD_USB_MUSB2.0_A_DRD D- differential data line
111USB20_A_DRD_USB_PAT14I/OUSB20_A_DRD_USB_PUSB2.0_A_DRD D+ differential data line
113GNDGGNDDigital core Ground
115USB20_B_USB_MC18I/OUSB20_B_USB_MUSB2.0_B D- differential data line
117USB20_B_USB_PB18I/OUSB20_B_USB_PUSB2.0_B D+ differential data line
119GNDGGNDDigital core Ground
121USB20_HOST_MB22I/OUSB20_HOST_MUSB2.0_HOST D- differential data line
123USB20_HOST_PC22I/OUSB20_HOST_PUSB2.0_HOST D+ differential data line
125GNDGGNDDigital core Ground
127GPIO[3]_59 { R.GMAC3_RXDV / R.UART5_TXD / PCIEC_WAKEN / R.I2C1_SCL / PWM17 }J38O1.8VPWR_LED_CTRLGeneral purpose I/O3 59
129GNDGGNDDigital core Ground
131PCIE0_RX0NG22IPCIE0_RX0NPCIE0 RX0 LANEN
133PCIE0_RX0PF22IPCIE0_RX0PPCIE0 RX0 LANEP
135GNDGGNDDigital core Ground
137PCIE0_RX1NE21IPCIE0_RX1NPCIE0 RX1 LANEN
139PCIE0_RX1PD21IPCIE0_RX1PPCIE0 RX1 LANEP
141GNDGGNDDigital core Ground
143GPIO[4]_87 { R.SSP0_RXD / R.ESPI0_D1 / UART4_RXD / CAN2_RXD / PCIEA_MRLN / PCIEB_PRSNT2N }AU35I3.3VCAN2_RXDCAN2_RXD
145GPIO[4]_86 { R.SSP0_TXD / R.ESPI0_D0 / UART4_TXD / CAN2_TXD / PCIEA_PWRDET / USB30-0_DIR }AT35O3.3VCAN2_TXDCAN2_TXD
147GNDGGNDDigital core Ground
149PCIE1_RX0NE19IPCIE1_RX0NPCIE1 RX0 LANEN
151PCIE1_RX0PD19IPCIE1_RX0PPCIE1 RX0 LANEP
153GNDGGNDDigital core Ground
155PCIE1_RX1NF18IPCIE1_RX1NPCIE1 RX1 LANEN
157PCIE1_RX1PG18IPCIE1_RX1PPCIE1 RX1 LANEP
159GNDGGNDDigital core Ground
161PCIE2/USB3-B_RX0NE17IPCIE2/USB3-B_RX0NUSB3.0_B RX0 LANEN
163PCIE2/USB3-B_RX0PD17IPCIE2/USB3-B_RX0PUSB3.0_B RX0 LANEP
165GNDGGNDDigital core Ground
167PCIE5_RX0NE9IPCIE5_RX0NPCIE5 RX0 LANEN
169PCIE5_RX0PD9IPCIE5_RX0PPCIE5 RX0 LANEP
171GNDGGNDDigital core Ground
173PCIE5_REFCLK_NB8OPCIE5_REFCLK_NPCIE5 Clock LANEN
175PCIE5_REFCLK_PC8OPCIE5_REFCLK_PPCIE5 Clock LANEP
177GNDGGNDDigital core Ground
179GPIO[4]_80 { R.SSPA0_SYSCLK / SSPA2_SYSCLK / R.UART4_TXD / CAN3_RXD / PCIEA_WAKEN / I2C2_SCL }AR34I3.3VPCIeA_WAKEnPCIeA_WAKEn
181GPIO[4]_79 { R.SSPA0_RXD / SSPA2_RXD / UART8_RTS / PCIEA_PERSTN / I2C1_SDA }AP34O3.3VPCIeA_PERSTnPCIeA_PERSTn
183GPIO[4]_76 { R.SSPA0_CLK / SSPA2_CLK / UART8_TXD / CAN0_TXD / PCIEE_PERSTN / I2C0_SCL }AR33O3.3VPCIeE_PERSTnPCIeA_PERSTn
185GPIO[1]_00 { GMAC0_RXDV / SSPA5_CLK / PWM0 / IR1_RX / ESPI0_D0 / I2C0_SCL }AY32O3.3VI2C0_SCLI2C0_SCL
187GPIO[1]_01 { GMAC0_RX_D0 / SSPA5_FRM / PWM1 / R.IR1_RX / ESPI0_D1 / I2C0_SDA }AW32I/O3.3VI2C0_SDAI2C0_SDA
189GPIO[4]_82 { SSP0_RXD / SSPA0_FRM / UART9_CTSN / UART5_RXD / PCIEA_PRSNT2N / I2C3_SCL }AV34O3.3VI2C3_SCLI2C3_SCL
191GPIO[4]_83 { SSP0_SCLK / SSPA0_TXD / UART9_RTSN / UART5_TXD / PCIEA_ATTN / I2C3_SDA }AW34I/O3.3VI2C3_SDAI2C3_SDA
193GPIO[5]_113 { SSP1_SCLK / SSPA0_TXD / R.GPIO[30] / PCIEB_PERSTN }AY26O1.8VI2S0_SDOUTI2S0_SDOUT
195GPIO[5]_114 { SSP1_FRM / SSPA0_RXD / R.GPIO[31] / PCIEB_WAKEN }AP25I1.8VI2S0_SDINI2S0_SDIN
197GPIO[5]_112 { SSP1_RXD / SSPA0_FRM / UCIE_DESDA / I2C4_SDA / USB30-3_DRV / R.PWM9 }AW26I1.8VI2S0_LRCKI2S0_LRCK
199GPIO[5]_111 { SSP1_TXD / SSPA0_CLK / UCIE_DESCL / I2C4_SCL / USB30-0_INT / R.PWM8 }AU26O1.8VI2S0_CLKI2S0_CLK
201GNDGGNDDigital core Ground
203GPIO[5]_121 { UART1_TXD / I2C2_SDA / R.CAN3_RXD / CAN4_RXD / PCIEB_MRLN }AT24O1.8VUART1_TXDUART1_TXD
205GPIO[5]_120 { UART1_RXD / I2C2_SCL / R.CAN3_TXD / CAN4_TXD / PCIEB_PWRDET / }AR24I1.8VUART1_RXDUART1_TXD
207GPIO[5]_118 { UART1_RTSN / USB30_DRD_DRV / R.GPIO[35] / PCIEB_PWRCTN }AW25I1.8VUART1_RTSnUART1_RTSn
209GPIO[5]_119 { UART1_CTSN / USB30-0_INT / PCIEB_AUXEN / }AP24O1.8VUART1_CTSnUART1_CTSn
211GPIO[5]_124 { MMC2_DAT[1] / SSPA1_TXD / PCIED_PERSTN / E/DP0_HPD / PCIEB_EINT }AT23I/O1.8VMMC2_DAT1General purpose I/O5 124
213GPIO[4]_93 { R.GPIO[25] / R.ESPI0_ALERT / UART0_TXD / ESPI0_D2 / I2C5_SCL / R.PWM4 }AW37O3.3VI2C5_SCLI2C5_SCL
215GPIO[4]_94 { R.GPIO[26] / UART0_RXD / ESPI0_D3 / I2C5_SDA / R.PWM6 }AY37I/O3.3VI2C5_SDAI2C5_SDA
217NAI/O3.3VMODULE_IDNA
219GPIO[1]_03 { GMAC0_RX_CLK / SSPA5_RXD / PWM3 / PCIED_PERSTN / ESPI0_D3 / I2C1_SDA }AU32O3.3VPCIeD_PERSTnPCIeD_PERSTn
221GPIO[1]_05 { GMAC0_RX_D3 / PWM5 / PCIED_CLKREQN / ESPI0_CLK / I2C2_SCL }AP32I3.3VPCIeD_CLKREQnPCIeD_CLKREQn
223GPIO[1]_12 { GMAC0_MDC / UART7_CTSN / CAN0_RXD / PCIEC_PERSTN / UART8_TXD / I2C4_SDA }AW30O3.3VPCIeC_PERSTnPCIeC_PERSTn
225GPIO[1]_14 { GMAC0_INT_N / UART7_RXD / PWM14 / PCIEC_CLKREQN / MNCLK_OUT1 / I2C6_SCL }AW29I3.3VPCIeC_CLKREQnPCIeC_CLKREQn
227PCIE3_REFCLK_NB12OPCIE3_REFCLK_NPCIE3 Clock LANEN
229PCIE3_REFCLK_PC12OPCIE3_REFCLK_PPCIE3 Clock LANEP
231GNDGGNDDigital core Ground
233GPIO[4]_88 { R.SSP0_SCLK / R.ESPI0_D2 / R.UART3_TXD / PCIEB_PERSTN / PCIEA_ATNLED / CAN1_RXD }AV35O3.3VSHUTDOWN_REQGeneral purpose I/O4 88
235VCC_RTC(5V)1.85-5.5VVCC_RTCRTC power
237POWER_EN(5V)I5VPOWER_ENK3-CoM260 Power Enable
239PMIC_RST_OUTn(1V8)O1.8VPMIC_RST_OUTnK3-CoM260 Reset
241GNDGGGNDDigital core Ground
243GND
245GND
247GND
249GND
251VDD_IN(5V/20V)P5V/9~19VVDD_INK3-CoM260 Power
253VDD_IN(5V/20V)
255VDD_IN(5V/20V)
257VDD_IN(5V/20V)
259VDD_IN(5V/20V)
2GNDGGNDDigital core Ground
4MIPI_CSI1_DN0AD37IMIPI_CSI1_DN0CSI1 DATA0 LANEN
6MIPI_CSI1_DP0AD36IMIPI_CSI1_DP0CSI1 DATA0 LANEP
8GNDGGNDDigital core Ground
10MIPI_CSI1_CLKNAB39OMIPI_CSI1_CLKNCSI1 Clock LANEN
12MIPI_CSI1_CLKPAB40OMIPI_CSI1_CLKPCSI1 Clock LANEP
14GNDGGNDDigital core Ground
16MIPI_CSI1_DN1AC39IMIPI_CSI1_DN1CSI1 DATA1 LANEN
18MIPI_CSI1_DP1AC38IMIPI_CSI1_DP1CSI1 DATA1 LANEP
20GNDGGNDDigital core Ground
22MIPI_CSI2_DN0Y40IMIPI_CSI2_DN0CSI2 DATA0 LANEN
24MIPI_CSI2_DP0Y39IMIPI_CSI2_DP0CSI2 DATA0 LANEP
26GNDGGNDDigital core Ground
28MIPI_CSI2_CLKNAB33OMIPI_CSI2_CLKNCSI2 Clock LANEN
30MIPI_CSI2_CLKPAB34OMIPI_CSI2_CLKPCSI2 Clock LANEP
32GNDGGNDDigital core Ground
34MIPI_CSI2_DN1Y37IMIPI_CSI2_DN1CSI2 DATA1 LANEN
36MIPI_CSI2_DP1Y36IMIPI_CSI2_DP1CSI2 DATA1 LANEP
38GNDGGNDDigital core Ground
40PCIE4/USB3-D_RX0ND13IPCIE4/USB3-D_RX0NPCIE4 RX0 LANEN
42PCIE4/USB3-D_RX0PE13IPCIE4/USB3-D_RX0PPCIE4 RX0 LANEP
44GNDGGNDDigital core Ground
46PCIE4/USB3-D_TX0NA9OPCIE4/USB3-D_TX0NPCIE4 TX0 LANEN
48PCIE4/USB3-D_TX0PB9OPCIE4/USB3-D_TX0PPCIE4 TX0 LANEP
50GNDGGNDDigital core Ground
52PCIE4_REFCLK_NC10OPCIE4_REFCLK_NPCIE4 Clock LANEN
54PCIE4_REFCLK_PB10OPCIE4_REFCLK_PPCIE4 Clock LANEP
56GNDGGNDDigital core Ground
58PCIE3/USB3-C_RX0ND15IPCIE3/USB3-C_RX0NPCIE3 RX0 LANEN
60PCIE3/USB3-C_RX0PE15IPCIE3/USB3-C_RX0PPCIE3 RX0 LANEP
62GNDGGNDDigital core Ground
64PCIE3/USB3-C_TX0NA11OPCIE3/USB3-C_TX0NPCIE3 TX0 LANEN
66PCIE3/USB3-C_TX0PB11OPCIE3/USB3-C_TX0PPCIE3 TX0 LANEP
68GNDGGNDDigital core Ground
70MIPI_DSI1_D0NAK34OMIPI_DSI1_D0NDSI 1 DATA0 LANEN
72MIPI_DSI1_D0PAK33OMIPI_DSI1_D0PDSI 1 DATA0 LANEP
74GNDGGNDDigital core Ground
76MIPI_DSI1_CLKNAJ38OMIPI_DSI1_CLKNDSI 1 Clock LANEN
78MIPI_DSI1_CLKPAJ39OMIPI_DSI1_CLKPDSI 1 Clock LANEP
80GNDGGNDDigital core Ground
82MIPI_DSI1_D1NAH39OMIPI_DSI1_D1NDSI 1 DATA1 LANEN
84MIPI_DSI1_D1PAH40OMIPI_DSI1_D1PDSI 1 DATA1 LANEP
86GNDGGNDDigital core Ground
88GPIO[3]_74 { R.GMAC3_CLK_REF / CLK_CAMCK2 / ESPI0_RESETN / VCXO_REQ / USB30H-1_DRV / R.I2C0_SCL }N40O1.8VCLK_CAMCK2CLK_CAMCK2
90GPIO[3]_67 { R.GMAC3_TX_CLK / R.GPIO[22] / R.SSP1_FRM / CLK_CAMCK4 / PCIEC_PWRDET / R.PWM3 }M39O1.8VCLK_CAMCK4CLK_CAMCK4
92GPIO[3]_53 { GMAC2_TX_EN / UART3_CTSN / SSP0_TXD / PCIEA_EINT / PWM11 }H36O1.8VMIPI_CSI3_PWDNGeneral purpose I/O3 53
94GPIO[1]_02 { GMAC0_RX_D1 / SSPA5_TXD / PWM2 / ESPI0_D2 / I2C1_SCL }AV32O1.8VMIPI_CSI1_PWDNGeneral purpose I/O1 02
96GPIO[3]_72 { R.GMAC3_MDIO / SSPA4_RXD / ESPI0_CS / E/DP1_HPD / DSI0_TE }L40I1.8Ve/DP1_HPDe/DP1_HPD
98EDP1_AUXNAW17I/ODP1_AUXNDP1 AUX LANEN
100EDP1_AUXPAV17I/ODP1_AUXPDP1 AUX LANEP
102GNDGGNDDigital core Ground
104GPIO[3]_60 { R.GMAC3_RX_D0 / R.UART5_RXD / R.SSP0_TXD / PCIEC_CLKREQN / R.I2C1_SDA / PWM18 }L38O1.8VR-SPI0_MOSIR.SPI0_MOSI
106GPIO[3]_62 { R.GMAC3_RX_CLK / R.SSP0_SCLK / PCIEC_ATTN / I2C6_SDA }N38O1.8VR-SPI0_SCKR.SPI0_SCK
108GPIO[3]_61 { R.GMAC3_RX_D1 / R.SSP0_RXD / PCIEC_PRSNT2N / I2C6_SCL / PWM19 }M38I1.8VR-SPI0_MISOR.SPI0_MISO
110GPIO[3]_63 { R.GMAC3_RX_D2 / R.GPIO[18] / R.SSP0_FRM / PCIEC_PWRCTN / I2C5_SCL }P38I1.8VR-SPI0_CSR.SPI0_CS
112GPIO[3]_71 { R.GMAC3_MDC / SSPA4_TXD / ESPI0_D3 / R.IR0_RX / MNCLK_OUT2 / SSP3_FRM }K40I1.8VR-SPI0_CS1General purpose I/O3 71
114GPIO[3]_45 { GMAC2_RX_CLK / UART10_RXD / CAN0_RXD / PCIEA_PRSNT2N / PWM3 }L34O1.8VMIPI_CSI0_PWDNGeneral purpose I/O3 45
116GPIO[3]_75 { R.GMAC3_PPS / CLK_CAMCK1 / ESPI0_ALERT / VCXO_OUT / USB30H-2_DRV / R.I2C0_SDA }P40O1.8VCLK_CAMCK1General purpose I/O3 75
118GPIO[5]_122 { MMC2_DAT[3] / SSPA1_CLK / UART6_TXD / R.UART0_TXD / PCIEB_ATNLED }AW24I/O1.8VMMC2_DAT3General purpose I/O5 122
120GPIO[3]_44 { GMAC2_RX_D1 / UART10_TXD / CAN0_TXD / PCIEA_CLKREQN / PWM2 }K34O1.8VMIPI_CSI2_PWDNGeneral purpose I/O3 44
122GPIO[4]_85 { CLK_CAMCK3 / SSPA0_SYSCLK / UART9_RXD / USB30-2_DRV / PCIEA_AUXEN }AY33O1.8VCLK_CAMCK3CLK_CAMCK3
124GPIO[4]_77 { R.SSPA0_FRM / SSPA2_FRM / UART8_RXD / CAN0_RXD / PCIEE_WAKEN / I2C0_SDA }AT33I3.3VBT_M2_WAKE_APGeneral purpose I/O4 77
126GPIO[3]_57 { GMAC2_CLK_REF / R.UART2_TXD / R.CAN0_RXD / EDP0_HPD / R.I2C0_SCL / PWM15 }L37O1.8VBT_M2_ENGeneral purpose I/O3 57
128GPIO[3]_73 { R.GMAC3_INT_N / SSPA4_SYSCLK / ESPI0_CLK / R.IR1_RX / USB20_HOST_DRV }M40O1.8VW_DISABLE1_CTRLGeneral purpose I/O3 73
130GPIO[5]_103 { SSPA3_SYSCLK / USB20_HOST_DRV / CAN3_TXD / PCIED_AUXEN / I2C1_SDA }AY28O1.8VCAM_MUX_SELGeneral purpose I/O5 103
132GNDGGNDDigital core Ground
134PCIE0_TX0NA21OPCIE0_TX0NPCIE0 TX0 LANEN
136PCIE0_TX0PB21OPCIE0_TX0PPCIE0 TX0 LANEP
138GNDGGNDDigital core Ground
140PCIE0_TX1NB19OPCIE0_TX1NPCIE0 TX1 LANEN
142PCIE0_TX1PA19OPCIE0_TX1PPCIE0 TX1 LANEP
144GNDGGNDDigital core Ground
146GNDGGNDDigital core Ground
148PCIE1_TX0NA17OPCIE1_TX0NPCIE1 TX0 LANEN
150PCIE1_TX0PB17OPCIE1_TX0PPCIE1 TX0 LANEP
152GNDGGNDDigital core Ground
154PCIE1_TX1NB15OPCIE1_TX1NPCIE1 TX1 LANEN
156PCIE1_TX1PA15OPCIE1_TX1PPCIE1 TX1 LANEP
158GNDGGNDDigital core Ground
160PCIE0_REFCLK_NC20OPCIE0_REFCLK_NPCIE0 Clock LANEN
162PCIE0_REFCLK_PB20OPCIE0_REFCLK_PPCIE0 Clock LANEP
164GNDGGNDDigital core Ground
166PCIE2/USB3-B_TX0NA13OPCIE2/USB3-B_TX0NUSB3_B TX0 LANEN
168PCIE2/USB3-B_TX0PB13OPCIE2/USB3-B_TX0PUSB3_B TX0 LANEP
170GNDGGNDDigital core Ground
172PCIE5_TX0NA7OPCIE5_TX0NPCIE5 TX0 LANEN
174PCIE5_TX0PB7OPCIE5_TX0PPCIE5 TX0 LANEP
176GNDGGNDDigital core Ground
178GPIO[3]_42 { GMAC2_RXDV / UART0_TXD / PCIEA_PERSTN / I2C0_SCL / PWM0 }H34O1.8VMOD_SLEEPGeneral purpose I/O3 42
180GPIO[4]_81 { SSP0_TXD / SSPA0_CLK / R.UART4_RXD / CAN3_TXD / PCIEA_CLKREQN / I2C2_SDA }AT34I3.3VPCIeA_CLKREQnPCIeA_CLKREQn
182GPIO[4]_78 { R.SSPA0_TXD / SSPA2_TXD / UART8_CTS / PCIEE_CLKREQN / I2C1_SCL }AP35I3.3VPCIeE_CLKREQnPCIeE_CLKREQn
184PHY1_MDI0-I/OPHY1_MDI0-PHY1 MDI0 LANEN
186PHY1_MDI0+I/OPHY1_MDI0+PHY1 MDI0 LANEP
188PHY1_LED1/CFG_LDO0OPHY1_LED1/CFG_LDO0PHY1_LED1/CFG_LDO0
190PHY1_MDI1-I/OPHY1_MDI1-PHY1 MDI1 LANEN
192PHY1_MDI1+I/OPHY1_MDI1+PHY1 MDI1 LANEP
194PHY1_LED2/CFG_LDO1OPHY1_LED2/CFG_LDO1PHY1_LED2/CFG_LDO1
196PHY1_MDI2-I/OPHY1_MDI2-PHY1 MDI2 LANEN
198PHY1_MDI2+I/OPHY1_MDI2+PHY1 MDI2 LANEP
200GNDGGNDDigital core Ground
202PHY1_MDI3-I/OPHY1_MDI3-PHY1 MDI3 LANEN
204PHY1_MDI3+I/OPHY1_MDI3+PHY1 MDI3 LANEP
206GPIO[5]_123 { MMC2_DAT[2] / SSPA1_FRM / UART6_RXD / R.UART0_RXD / PCIEB_PWRLED }AY24I/O1.8VMMC2_DAT2General purpose I/O5 123
208FAN_TACH(1V8)I1.8VFAN_TACHFAN TACH
210PMIC_32K_OUT(3V3)O1.8VPMIC_32K_OUTPMIC 32KHz Clock
212GPIO[3]_56 { GMAC2_INT_N / UART3_TXD / SSP0_FRM / R.UART3_TXD / PWM14 }J37I1.8VM2_ALERTGeneral purpose I/O3 56
214GPIO[3]_69 { R.GMAC3_TX_D3 / SSPA4_CLK / ESPI0_D1 / E/DP1_HPD / DSI0_TE / SSP3_RXD }H40I1.8VFORCE_RECOVERYGeneral purpose Strp I/O3 69
216GPIO[5]_125 { MMC2_DAT[0] / SSPA1_RXD / PCIED_WAKEN / E/DP1_HPD / PCIEB_EINTEG }AU23I/O1.8VMMC2_DAT0General purpose I/O5 125
218GPIO[5]_126 { MMC2_CMD / SSPA1_SYSCLK / PCIED_CLKREQN / I2C5_SCL }AV23I/O1.8VMMC2_CMDGeneral purpose I/O5 126
220GPIO[5]_101 { SSP3_SCLK / SSPA3_TXD / UART4_CTS / CAN4_RXD / PCIED_ATTN / MNCLK_OUT1 }AU28O1.8VI2S3_SDOUTI2S3_SDOUT
222GPIO[5]_102 { SSP3_FRM / SSPA3_RXD / UART4_RTS / CAN4_TXD / PCIED_PWRCTN / I2C1_SCL }AV28I1.8VI2S3_SDINI2S3_SDIN
224GPIO[5]_100 { SSP3_RXD / SSPA3_FRM / UART4_RXD / R.CAN2_RXD / PCIED_PRSNT2N / CLK32K_OUT }AT28I1.8VI2S3_LRCKI2S3_LRCK
226GPIO[5]_99 { SSP3_TXD / SSPA3_CLK / UART4_TXD / R.CAN2_TXD / CLK_CAMCK4 }AR28O1.8VI2S3_CLKI2S3_CLK
228GPIO[5]_127 { MMC2_CLK / PCIED_PRSNT2N / I2C5_SDA / USB30-2_DRV }AY23I/O1.8VMMC2_CLKGeneral purpose I/O5 127
230FAN_PWM(1V8)O1.8VFAN_PWMFAN PWM
232GPIO[3]_54 { GMAC2_MDC / UART3_RTSN / SSP0_RXD / PCIEA_EINTEG / I2C1_SCL / PWM12 }H38O1.8VI2C1_SCLI2C1_SCL
234GPIO[3]_55 { GMAC2_MDIO / UART3_RXD / SSP0_SCLK / R.UART3_RXD / I2C1_SDA / PWM13 }H37I/O1.8VI2C1_SDAI2C1_SDA
236PWR_SSP_SCLK { GPIO[122] / UART0_TXD }G40O1.8VUART0_TXD_PMUDebug UART0_TXD
238PWR_SSP_FRM { GPIO[123] / UART0_RXD }E36I1.8VUART0_RXD_PMUDebug UART0_RXD
240GPIO[4]_84 { SSP0_FRM / SSPA0_RXD / UART9_TXD / USB30-1_DRV / PCIEA_PWRCTN / DSI0_TE }AY34I/O3.3VSLEEP/WAKEGeneral purpose I/O4 84
242GNDGGGNDDigital core Ground
244GND
246GND
248GND
250GND
252VDD_IN(5V/20V)P5V/9~19VVDD_INK3-CoM260 Power
254VDD_IN(5V/20V)
256VDD_IN(5V/20V)
258VDD_IN(5V/20V)
260VDD_IN(5V/20V)

4. Electrical, Mechanical, and Thermal Characteristics​

4.1 Operating and Absolute Maximum Ratings​

SymbolParameterMinimumTypicalMaximumUnit
VDDDCVDD_IN (MODULE_ID low)4.7555.25V
VDD_IN (MODULE_ID high)12-20V
VCC_RTC1.85-5.5V

Note

The current K3-CoM260 design supports high-voltage (12 V to 20 V) input power only. Carrier board designs must meet the following requirements:

  1. Connect MODULE_ID (Pin 217) to 3.3 V through a pull-up resistor.
  2. The MODULE_ID pull-up power supply must be established before VDD_IN; otherwise, the module may fail to boot normally.
  3. For 5 V power mode support, please contact SpacemiT.

Absolute Maximum Ratings​

SymbolParameterMinimumMaximumUnitNotes
VDDMAXVDD_IN (MODULE_ID low)-0.55.5V
VDD_IN (MODULE_ID high)-0.520.5V
VCC_RTC-0.37.0V
IDDMAXVDD_IN Imax-5A
VM_PINVoltage applied to any powered I/O pin-0.5VDD + 0.2VWhen SYS_RESET* is high and the relevant I/O power rail is powered, the maximum voltage is VDD + 0.2.
Before SYS_RESET* goes high, I/O pins must not be driven high (>0.5V).
When SYS_RESET* is low, the maximum voltage that may be applied to any I/O pin is 0.5V.
TOPOperating temperature-2070°C
TSTGStorage temperatureTBDTBD°C

5. Packaging​

This section provides packaging information for the K3-CoM260.

TBD
