Bit Brick SSOM-3576 Datasheet

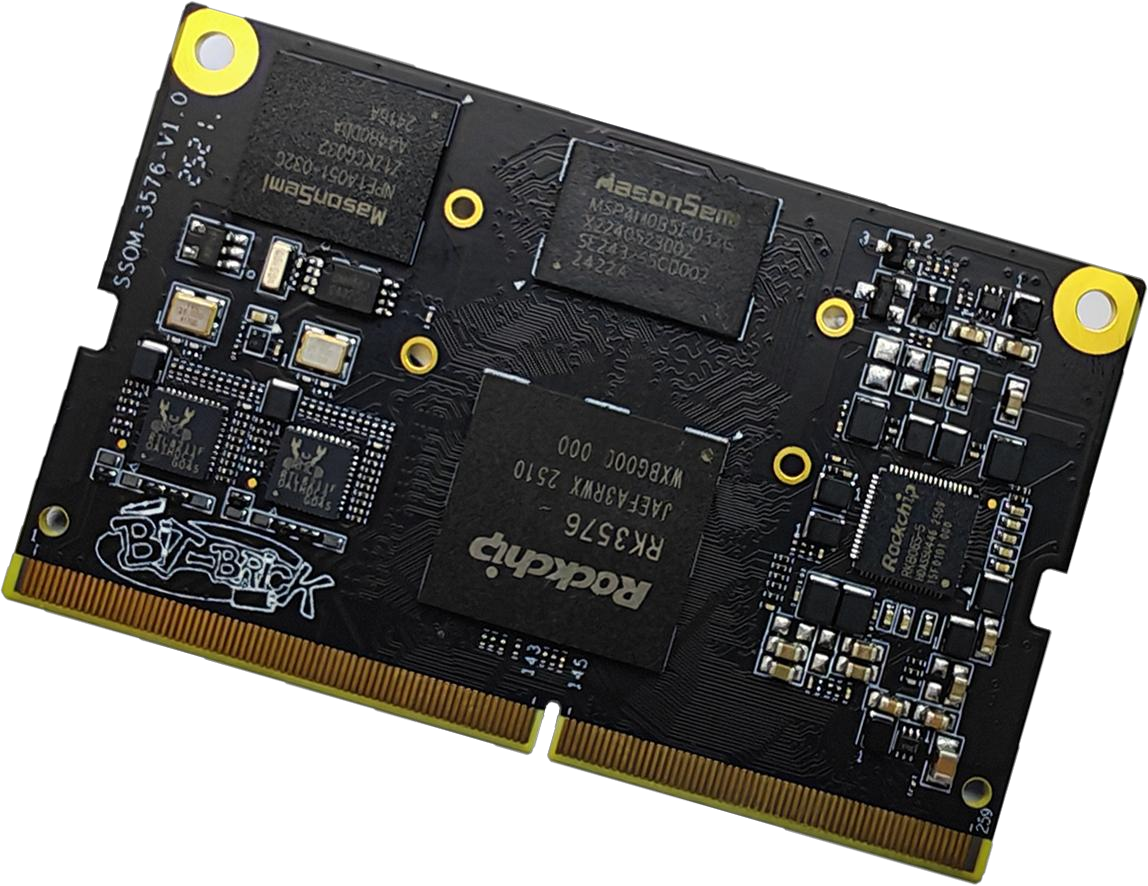

1. Product Introduction
Bit-Brick SSOM-3576 is a high-performance System-on-Module (SoM) built around the Rockchip RK3576 processor, designed for intelligent terminals, industrial control systems, and edge computing applications,etc.
The module features a heterogeneous octa-core CPU architecture, integrates quad-core Cortex-A72 and quad-core Cortex-A53, with clock speeds up to 2.2GHz. It integrates an ARM Mali-G52 MP4 GPU, delivering robust capabilities for multitasking and advanced graphics processing. A built-in Neural Processing Unit (NPU) with 6 TOPS of AI computing power enables efficient on-device inference for AI workloads, supporting applications such as computer vision and intelligent interaction at the edge.
The module incorporates a rich set of high-speed interfaces, including Gigabit Ethernet, PCIe 2.1, USB 3.0, and MIPI DSI/CSI, facilitating flexible peripheral expansion and system integration. It supports ultra-high-definition video decoding up to 4K@120fps and multi-display configurations, including both mirrored and independent output modes, addressing a wide range of multimedia and display-centric use cases.
With its low power consumption, high stability, and excellent scalability, the SSOM-3576 is ideally suited for deployment in smart retail terminals, industrial panel PCs, AI-powered vision systems, and smart home control hubs, offering developers a reliable and efficient embedded hardware platform.

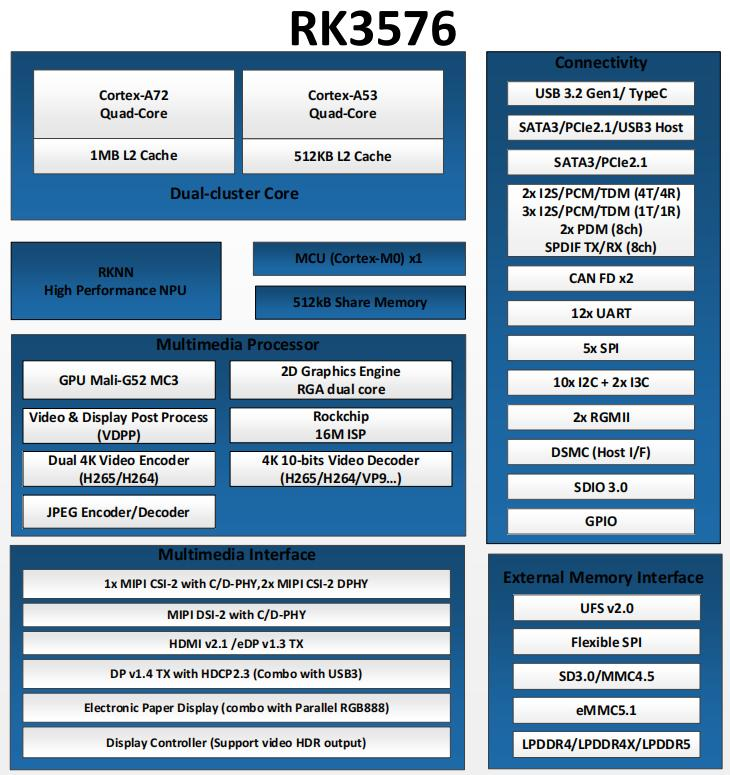

2. Processor Functional Block Diagram

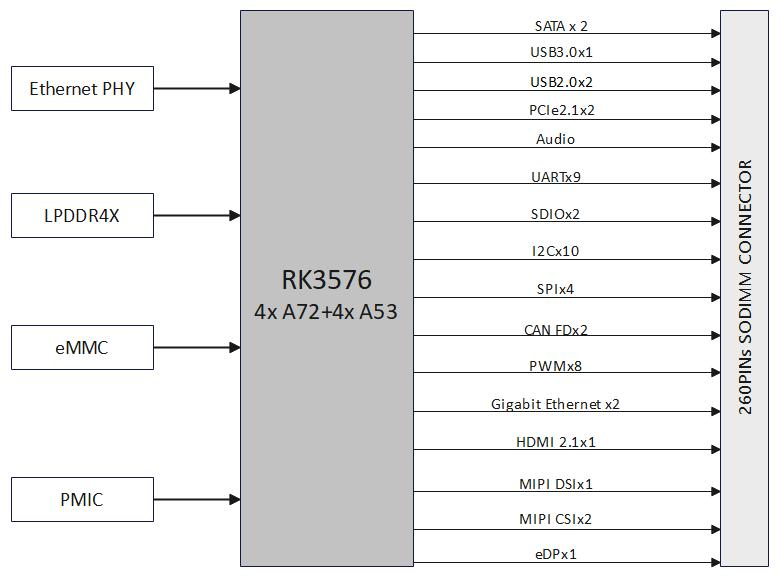

3. Hardware Functional Block Diagram
4. Specifications
| Processor | CPU | RK3576, 8-core 64-bit (4xCortex-A72 + 4xCortex-A53) with 8nm advanced process, and the main frequency can reach up to 2.2GHz |
|---|---|---|
| GPU | ARM Mali-G52 MC3 GPU, support OpenGL ES 1.1, 2.0 and 3.2/OpenCL 2.1/Vulkan 1.2 | |
| NPU | 6 TOPS@INT8, support INT4/INT8/INT16/FP16/BF16/TF32, support deep learning frameworks such as TensorFlow, PyTorch, Caffe, etc. | |
| VPU | Decoder: 8K@30fps or 4K@120fps (H.265 HEVC/VP9/AVS2/AV1), 4K@60fps (H.264 AVC); 1080P@60fps (H.264 MVC); Encoder: 4K@60fps (H.265/H.264) | |
| Memory | RAM | 4GB/8GB LPDDR4X SDRAM (optional) |
| Flash | 32GB/64GB eMMC (optional) | |
| Multimedia | Video | Output: 1x HDMI2.1(4K@120fps)/eDP(4K@60fps) combo; 1x MIPI-DSI(2560x1600@60fps) Input: 1x 16MP ISP with HDR & 3DNR; 1x DVP, support HDCP2.3; 1x MIPI-CSI DC PHY; 2x MIPI DPHY |
| Audio | 5x SAI, support I2S/TDM/PCM mode; SPDIF TX/RX; 2x 8-channel PDM | |
| IO | PCIe | 2x PCIe2.1 |
| Ethernet 2x | Gigabit Ethernet | |
| USB 1x | USB3.0; 2x USB2.0 | |
| UART | 9x | |
| SDIO | 2x | |
| I2C | 10x | |
| SPI | 4x | |
| CAN FD | 2x | |
| PWM | 8x | |
| MIPI DSI | 1x | |
| MIPI CSI | 2x | |
| SATA | 2x | |
| eDP | 1x | |
| Power supply Power | Supply Voltage | DC 4V |
| Operating Environment | Operating Temperature | -20 ~ 75 °C |
| Operating Humidity | 95% relative humidity, non-condensing | |
| Mechanical Dimensions (W x D) | 69.6 x 43mm | |
| Operation System | Linux/Android | |
| Certifications | CE/FCC Class B | |

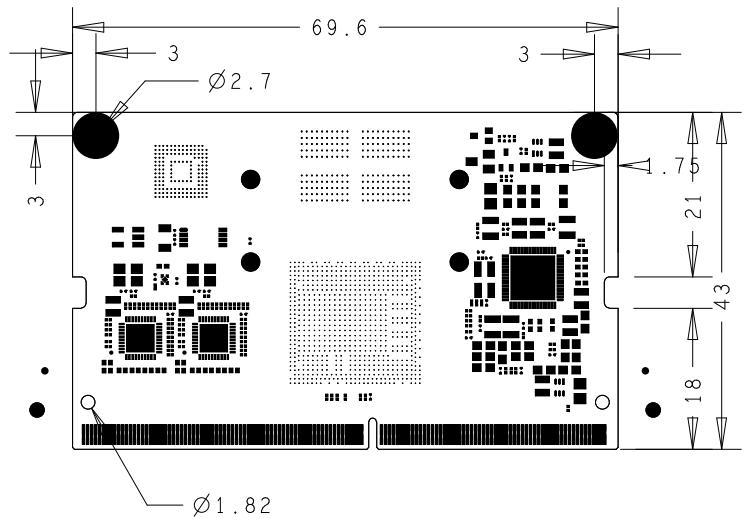

5. Dimension Specifications
Size:69.6mm X 43.0mm
6. Pin Definitions
| Pin Number | Default Corresponding GPIO | Pin Number | Definition |
| 1 | GND | 2 | GND |
| 3 | PHY1_LED1/CFG_LDO0 | 4 | CSI1_DP0 |
| 5 | PHY1_LED2/CFG_LDO1 | 6 | CSI1_DN0 |
| 7 | GND | 8 | GND |
| 9 | PHY1_MDI0+ | 10 | CSI1_CKP |
| 11 | PHY1_MDI0- | 12 | CSI1_CKN |
| 13 | GND | 14 | GND |
| 15 | PHY1_MDI1+ | 16 | CSI1_DP1 |
| 17 | PHY1_MDI1- | 18 | CSI1_DN1 |
| 19 | GND | 20 | GND |
| 21 | PHY1_MDI2+ | 22 | CSI1_DP2 |
| 23 | PHY1_MDI2- | 24 | CSI1_DN2 |
| 25 | GND | 26 | GND |
| 27 | PHY1_MDI3+ | 28 | CSI1_DP3 |
| 29 | PHY1_MDI3- | 30 | CSI1_DN3 |
| 31 | GND | 32 | GND |
| 33 | PHY0_LED1/CFG_LDO0 | 34 | CSI3_DP0 |
| 35 | PHY0_LED2/CFG_LDO1 | 36 | CSI3_DN0 |
| 37 | GND | 38 | GND |
| 39 | PHY0_MDI0+ | 40 | CSI3_CKP |
| 41 | PHY0_MDI0- | 42 | CSI3_CKN |
| 43 | GND | 44 | GND |
| 45 | PHY0_MDI1+ | 46 | CSI3_DP1 |
| 47 | PHY0_MDI1- | 48 | CSI3_DN1 |
| 49 | GND | 50 | GND |
| 51 | PHY0_MDI2+ | 52 | CSI3_DP2 |
| 53 | PHY0_MDI2- | 54 | CSI3_DN2 |
| 55 | GND | 56 | GND |
| 57 | PHY0_MDI3+ | 58 | CSI3_DP3 |
| 59 | PHY0_MDI3- | 60 | CSI3_DN3 |
| 61 | GND | 62 | GND |
| 63 | ETH_CLK0_25M_OUT_M0 GPIO3_A4_d | 64 | CSI2_CKP |
| 65 | ETH_CLK1_25M_OUT_M0 GPIO2_D6_d | 66 | CSI2_CKN |
| 67 | GND | 68 | GND |
| 69 | USB3_OTG0_SSTX1P | 70 | CSI1_PWDN (GPIO4_A4_d) |
| 71 | USB3_OTG0_SSTX1N | 72 | CSI1_RST (GPIO4_A6_d) |
| 73 | GND | 74 | GND |
| 75 | EDP_TX_AUXP | 76 | I2C4_SCL_M3_MIPI_CAM0/2 (GPIO3_C0_d) |
| 77 | EDP_TX_AUXN | 78 | I2C4_SDA_M3_MIPI_CAM0/2 (GPIO3_B7_d) |
| 79 | GND | 80 | GND |
| 81 | USB2_OTG0_DP | 82 | CSI3_RST (GPIO3_D4_d) |
| 83 | USB2_OTG0_DM | 84 | CSI3_PWDN (GPIO3_C7_d) |
| 85 | GND | 86 | GND |
| 87 | USB2_OTG1_DP | 88 | CSI_MCLK (GPIO3_D7_d) |
| 89 | USB2_OTG1_DM | 90 | USB2_PWREN (GPIO2_B7_d) |
| 91 | GND | 92 | GND |
| 93 | USB3_OTG0_SSRX1P | 94 | USB3_PWREN (GPIO3_A1_d) |
| 95 | USB3_OTG0_SSRX1N | 96 | LCD_BL_PWM1_CH1_M0 (GPIO0_B5_d) |
| 97 | GND | 98 | GND |
| 99 | MIPI_DSI1_D3N | 100 | I2C3_SCL_M2 (GPIO3_D5_d) |
| 101 | MIPI_DSI1_D3P | 102 | I2C3_SDA_M2 (GPIO3_D6_d) |
| 103 | GND | 104 | GND |
| 105 | MIPI_DSI1_D2N | 106 | USB1_PWREN (GPIO2_B6_d) |
| 107 | MIPI_DSI1_D2P | 108 | GPIO3_B0 (GPIO3_B0_d) |
| 109 | GND | 110 | GPIO3_D0 (GPIO3_D0_d) |
| 111 | MIPI_DSI1_CLKN | 112 | GMAC1_MCLKINOUT_M0 (GPIO2_D7_d) |
| 113 | MIPI_DSI1_CLKP | 114 | GPIO3_A0_d |
| 115 | GND | 116 | PCIE0_CLKREQn_M0 (GPIO2_B2_d) |
| 117 | MIPI_DSI1_D1N | 118 | PCIE1_PERSTn (GPIO2_A6_d) |
| 119 | MIPI_DSI1_D1P | 120 | PCIE0_PERSTn (GPIO2_B1_d) |
| 121 | GND | 122 | PCIE0_WAKEN_M0 (GPIO0_D2_d) |
| 123 | MIPI_DSI1_D0N | 124 | SDMMC0_PWREN_H (GPIO0_B6_d) |
| 125 | MIPI_DSI1_D0P | 126 | CLK1_32K_OUT_WIFI (GPIO1_D5_d) |
| 127 | GND | 128 | GND |
| 129 | HDMI_TXCN | 130 | GPIO0_C3_d |
| 131 | HDMI_TXCP | 132 | GPIO0_C4_d |
| 133 | GND | 134 | GND |
| 135 | HDMI_TX0N | 136 | HDMI_CEC (GPIO4_C0_d) |
| 137 | HDMI_TX0P | 138 | HDMI_HPD (GPIO4_C1_d) |
| 139 | GND | 140 | LCD_BL_EN (GPIO0_D1_d) |
| 141 | HDMI_TX1N | 142 | LCD_PWREN_H (GPIO0_C6_d) |
| 143 | HDMI_TX1P | 144 | LCD_RST_3V3 (GPIO0_C7_d) |
| 145 | GND | 146 | GND |
| 147 | HDMI_TX2N | 148 | SDMMC0_D1 (GPIO2_A1_d) |
| 149 | HDMI_TX2P | 150 | SDMMC0_CLK (GPIO2_A5_d) |
| 151 | GND | 152 | SDMMC0_D3 (GPIO2_A3_d) |
| 153 | USB3_OTG0_SSRX2N | 154 | SDMMC0_DET_L (GPIO0_A6_u) |
| 155 | USB3_OTG0_SSRX2P | 156 | SDMMC0_D2 (GPIO2_A2_d) |
| 157 | GND | 158 | SDMMC0_CMD (GPIO2_A4_d) |
| 159 | PCIE0_REFCLKN | 160 | SDMMC0_D0 (GPIO2_A0_d) |
| 161 | PCIE0_REFCLKP | 162 | HDMI_SCL (GPIO4_C2_d) |
| 163 | GND | 164 | HDMI_SDA (GPIO4_C3_d) |
| 165 | PCIE0_RXN | 166 | I2C5_SDA_M3/CAN0_RX_M3 (GPIO3_C1_d) |
| 167 | PCIE0_RXP | 168 | I2C5_SCL_M3/CAN0_TX_M3 (GPIO3_C0_d) |
| 169 | GND | 170 | I2C7_SCL_M2 (GPIO4_A0_d) |
| 171 | USB3_OTG0_SSTX2N | 172 | I2C7_SDA_M2 (GPIO4_A1_d) |
| 173 | USB3_OTG0_SSTX2P | 174 | I2C0_SCL_M1_TP (GPIO0_C1_d) |
| 175 | GND | 176 | I2C0_SDA_M1_TP (GPIO0_C2_d) |
| 177 | PCIE0_TXN | 178 | GND |
| 179 | PCIE0_TXP | 180 | MIPI_LCD_ADC_1V8 (GPIO4_A7_d) |
| 181 | GND | 182 | GND |
| 183 | DP_TX_AUXN | 184 | SARADC_VIN3_HP_HOOK |
| 185 | DP_TX_AUXP | 186 | UART8_RX_M0 (GPIO3_C5_d) |
| 187 | GND | 188 | UART8_TX_M0 (GPIO3_C6_d) |
| 189 | PCIE1_RXN | 190 | GND |
| 191 | PCIE1_RXP | 192 | UART2_RX_M1 (GPIO4_B4_d) |
| 193 | GND | 194 | UART2_TX_M1 (GPIO4_B5_d) |
| 195 | NC | 196 | SARADC_VIN0_BOOT |
| 197 | NC | 198 | SARADC_VIN2_HW_ID |
| 199 | GND | 200 | GND |
| 201 | PCIE1_REFCLKN | 202 | TP_INT_L (GPIO0_C5_d) |
| 203 | PCIE1_REFCLKP | 204 | TP_RST (GPIO0_D0_d) |
| 205 | GND | 206 | GND |
| 207 | PCIE1_TXN | 208 | UART0_RX_M0_DEBUG (GPIO0_D5_u) |
| 209 | PCIE1_TXP | 210 | UART0_TX_M0_DEBUG (GPIO0_D4_u) |
| 211 | GND | 212 | UART4_CTSN_M1 (GPIO1_C3_u) |
| 213 | PCIE1_WAKEN_M0 (GPIO2_A7_d) | 214 | UART4_RTSN_M1 (GPIO1_C2_u) |
| 215 | GND | 216 | UART4_RX_M1 (GPIO1_C5_u) |
| 217 | PCIE1_CLKREQn_M0 (GPIO2_B3_d) | 218 | UART4_TX_M1 (GPIO1_C4_u) |
| 219 | GPIO0_B4_d | 220 | SAI2_SCLK_M0 (GPIO1_D1_d) |
| 221 | GND | 222 | SAI2_LRCK_M0 (GPIO1_D2_d) |
| 223 | SDMMC1_D0_M0 (GPIO1_B4_d) | 224 | SAI2_SDI_M0 (GPIO1_D3_d) |
| 225 | SDMMC1_D1_M0 (GPIO1_B5_d) | 226 | SAI2_SDO_M0 (GPIO1_D0_d) |
| 227 | SDMMC1_D2_M0 (GPIO1_B6_d) | 228 | SAI1_SDO2_M0 (GPIO4_B1_d) |
| 229 | SDMMC1_D3_M0 (GPIO1_B7_d) | 230 | SAI1_SCLK_M0 (GPIO4_A3_d) |
| 231 | SDMMC1_CMD_M0 (GPIO1_C0_d) | 232 | SAI1_LRCK_M0 (GPIO4_A5_d) |
| 233 | SDMMC1_CLK_M0 (GPIO1_C1_d) | 234 | SAI1_MCLK_M0 (GPIO4_A2_d) |
| 235 | GND | 236 | SAI1_SDI0_M0 (GPIO4_B3_d) |
| 237 | WL_DIS_N (GPIO4_B2_d) | 238 | HP_DET_L (GPIO2_B5_d) |
| 239 | WIFI_REG_ON_H (GPIO1_C6_d) | 240 | PA_SHUTDOWN (GPIO4_B0_d) |
| 241 | HOST_WAKE_BT_H (GPIO1_D4_d) | 242 | SPI4_CLK_M0 (GPIO4_C7_d) |
| 243 | BT_REG_ON_H (GPIO1_C7_d) | 244 | SPI4_MISO_M0 (GPIO4_C6_d) |
| 245 | WIFI_WAKE_HOST_H (GPIO0_B0_z) | 246 | SPI4_MOSI_M0 (GPIO4_C5_d) |
| 247 | BT_WAKE_HOST_H (GPIO0_B1_z) | 248 | SPI4_CSN0_M0 (GPIO4_C4_d) |
| 249 | PCIE0_PWREN_H (GPIO0_D3_d) | 250 | PWRON_L |
| 251 | SARADC_VIN1_KEY/RECOVERY | 252 | RESET_L |
| 253 | VCC5V0_SYS_S5 | 254 | VCC5V0_SYS_S5 |
| 255 | VCC5V0_SYS_S5 | 256 | VCC5V0_SYS_S5 |
| 257 | VCC5V0_SYS_S5 | 258 | VCC5V0_SYS_S5 |
| 259 | VCC5V0_SYS_S5 | 260 | RTC_VBAT |
7. Ordering Information
| Part No. | CPU | Memory | Flash |
| SSOM-3576-0432 | RK3576 | 4GB | 32GB |
| SSOM-3576-0864 | RK3576 | 8GB | 64GB |
8. Update History
| Version Revision | Update Date | Content |
| Provisional V 1.0 | 2025-5-16 | Initial the first version |
