K1 Pro M.2 Interface Description

1. M.2 Interface

M.2 is a specification for internally mounted computer expansion cards and associated connectors. It adopts a new physical layout and connector to replace the PCI Express (PCIE) and mSATA interface standards. M.2 has flexible physical specifications, allowing for a wider variety of module widths and lengths, and supports more advanced interfaces, making it more suitable than mSATA for everyday applications, especially for solid-state drives in ultrabooks or tablets.

M.2 was developed by the PCI-SIG and SATA-IO standards organizations and is defined in the PCI-SIG M.2 and SATA Rev. 3.2 specifications. Originally called NGFF (Next Generation Form Factor), it was officially renamed M.2 in 2013.

For detailed information, refer to Wikipedia.

The common M.2 interfaces are as follows: front

Different types of interfaces correspond to different pin shapes and pin definitions. front The pin definitions are as follows:

  • KEY-A pin definition
  • KEY-B pin definition
  • KEY-E pin definition
  • KEY-M pin definition

K1 Pro Onboard M.2 Interface

The K1 Pro integrates three M.2 interfaces onboard, as shown below:

M.2 Interface Diagram M.2 Interface Diagram

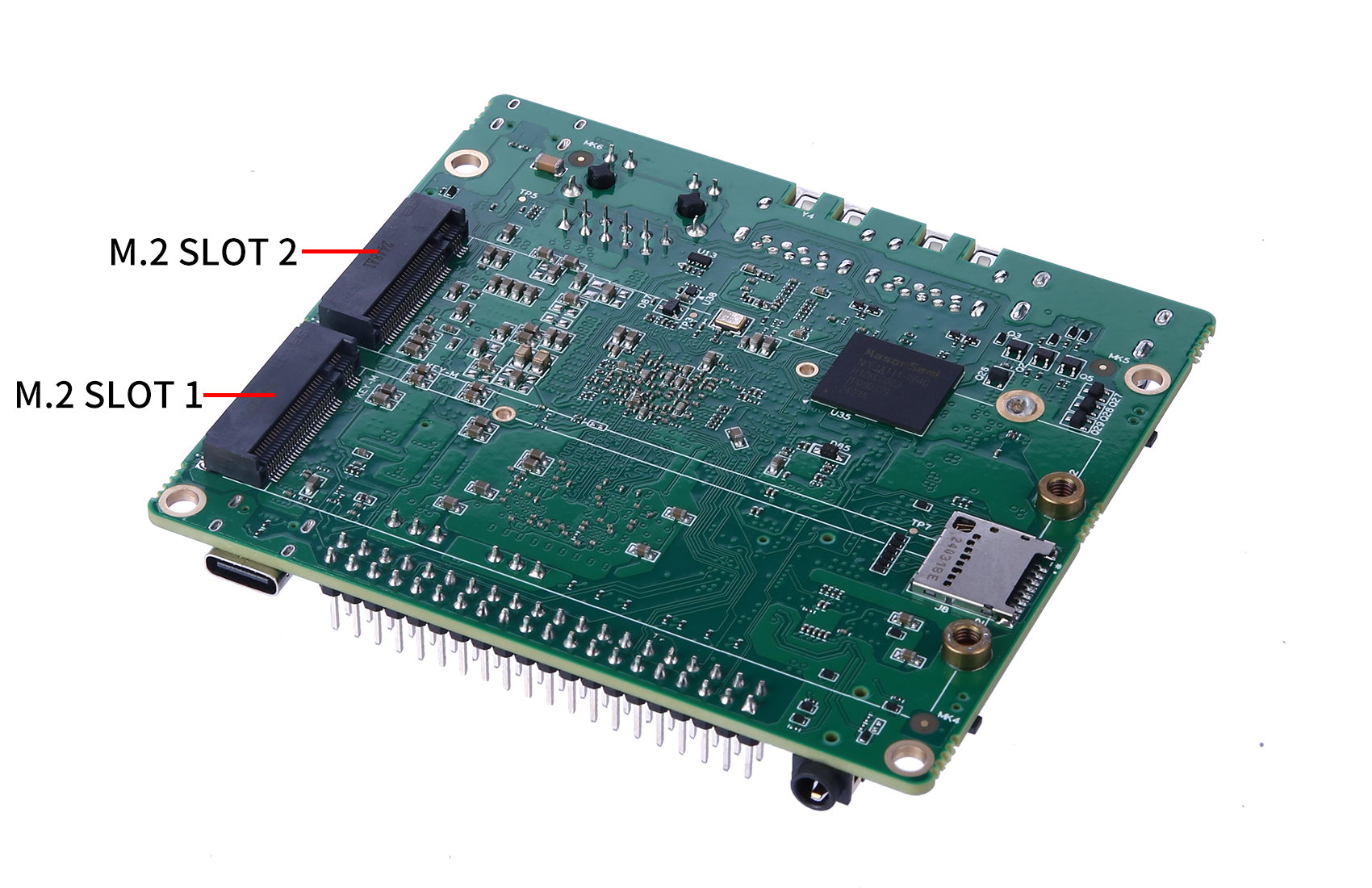

Among them, M.2 SLOT 1 and SLOT 2 are standard M.2 KEY-M interface definitions, which can directly support NVME interface solid-state drives. The solid-state drive length can be 2280.

Users can choose mainstream NVME interface SSDs. The installation method is shown below:

SSD Installation Diagram

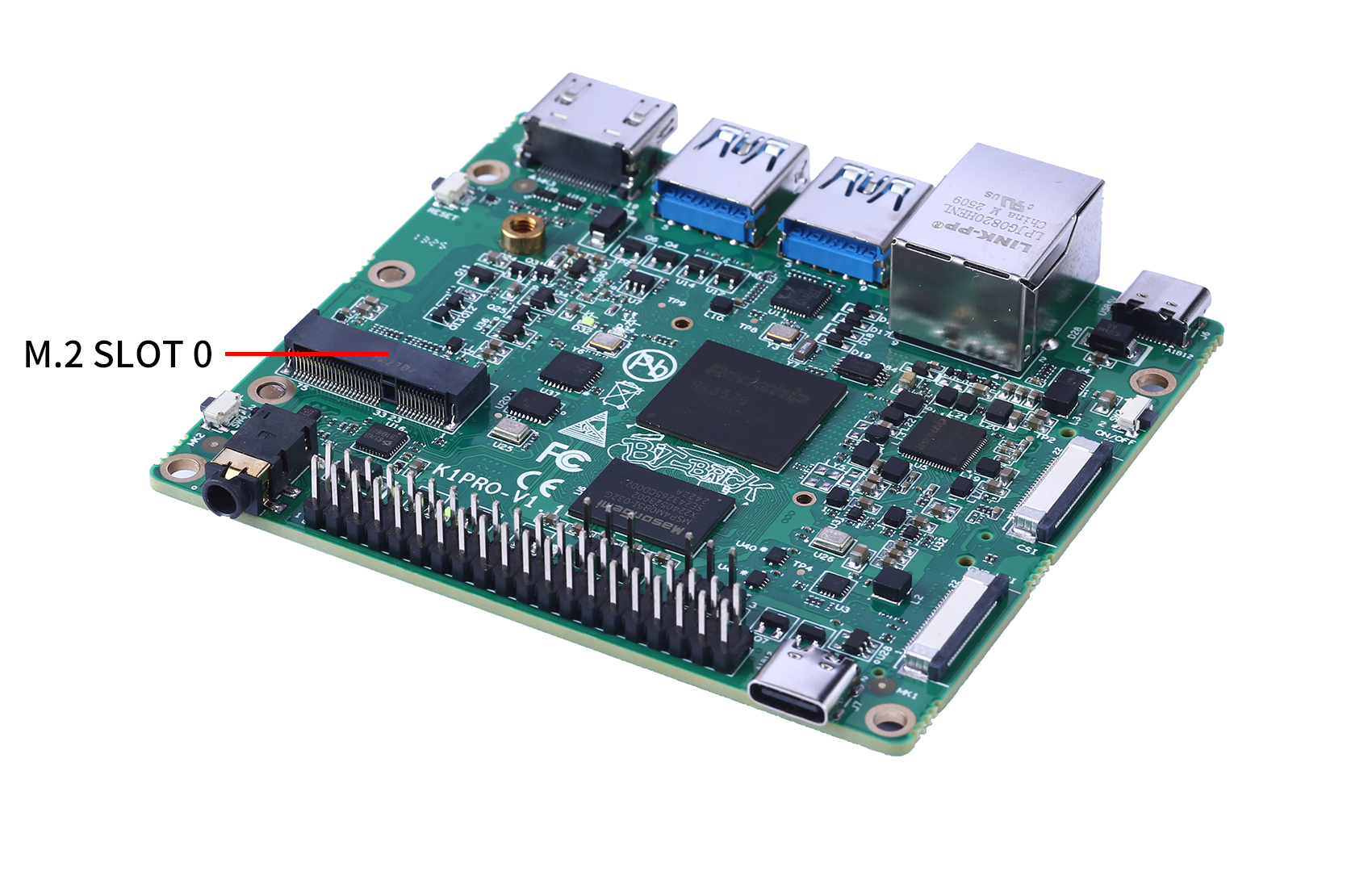

Another M.2 SLOT 0 is defined as a KEY-E interface with a length of 2230, mainly used to support various wireless modules. Since the processor has only three USB interfaces, SLOT 0 does not reserve a USB interface and also removes compatibility with NGFF's PCIE interface, so it cannot support modules defined by USB and PCIE interfaces. The detailed pin definition of the SLOT 0 interface is as follows: frame

K1 Pro Default Supported BIT-BRICK Hardware Modules

The supported categories and models are as follows:

ModelCategorySpecification Description
WIFI+BluetoothWireless Module
LORAWireless Module
ZIGBEEWireless Module
Bluetooth+StarFlashWireless Module
GPSPositioning Module
