K1 Pro Hardware Specifications

K1 Pro is a low-power, high-performance single-board computer based on the Rockchip RK3576 application processor. The motherboard integrates large-capacity high-speed memory, eMMC storage, Gigabit Ethernet, HDMI interface, USB 3.0 and 2.0 interfaces, supports multiple official functional modules, dual NVMe solid-state drives, and rich bus interface extensions. K1 Pro is suitable for various application fields such as smart home, industrial control, gateways, NAS, and edge devices.

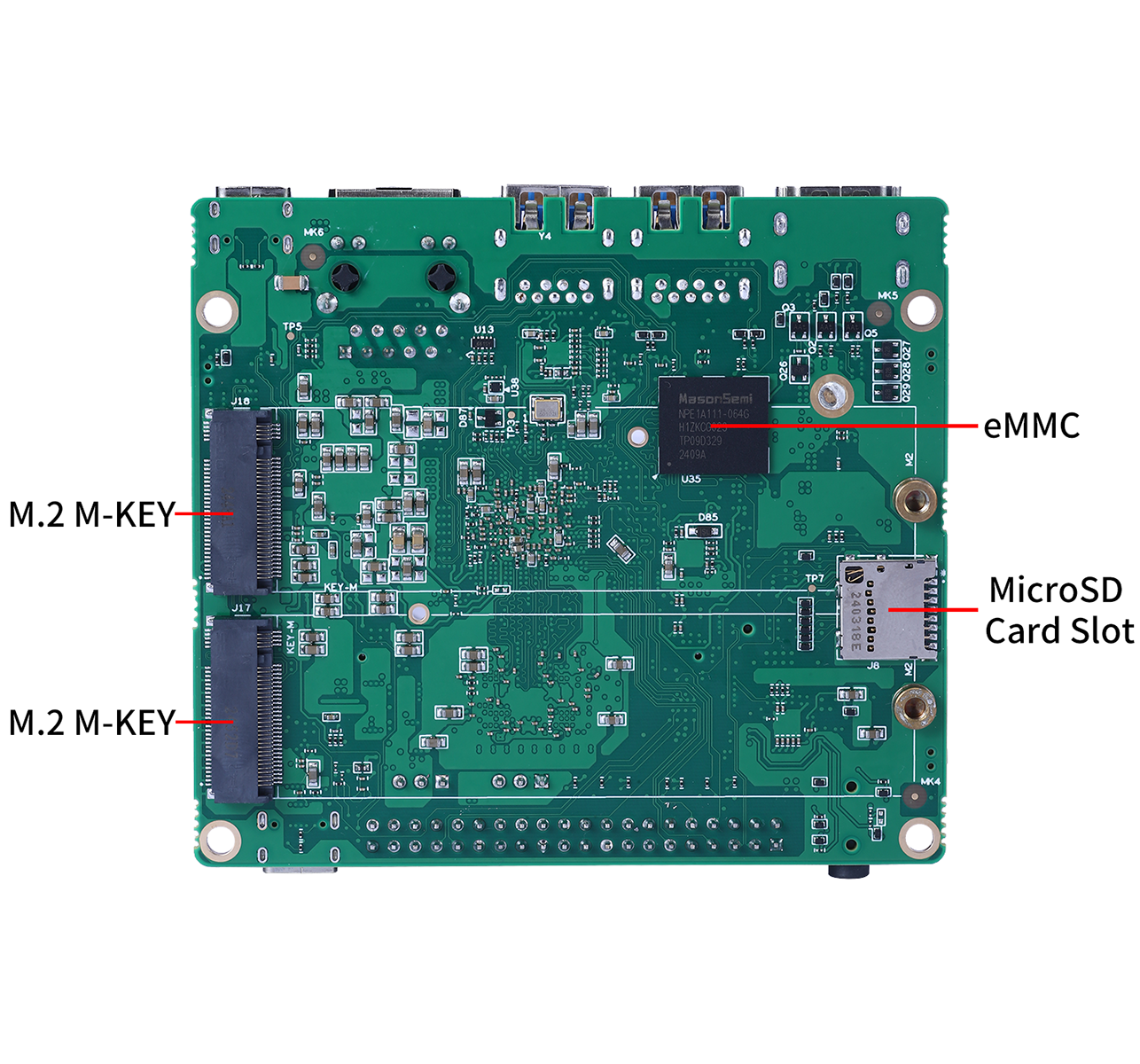

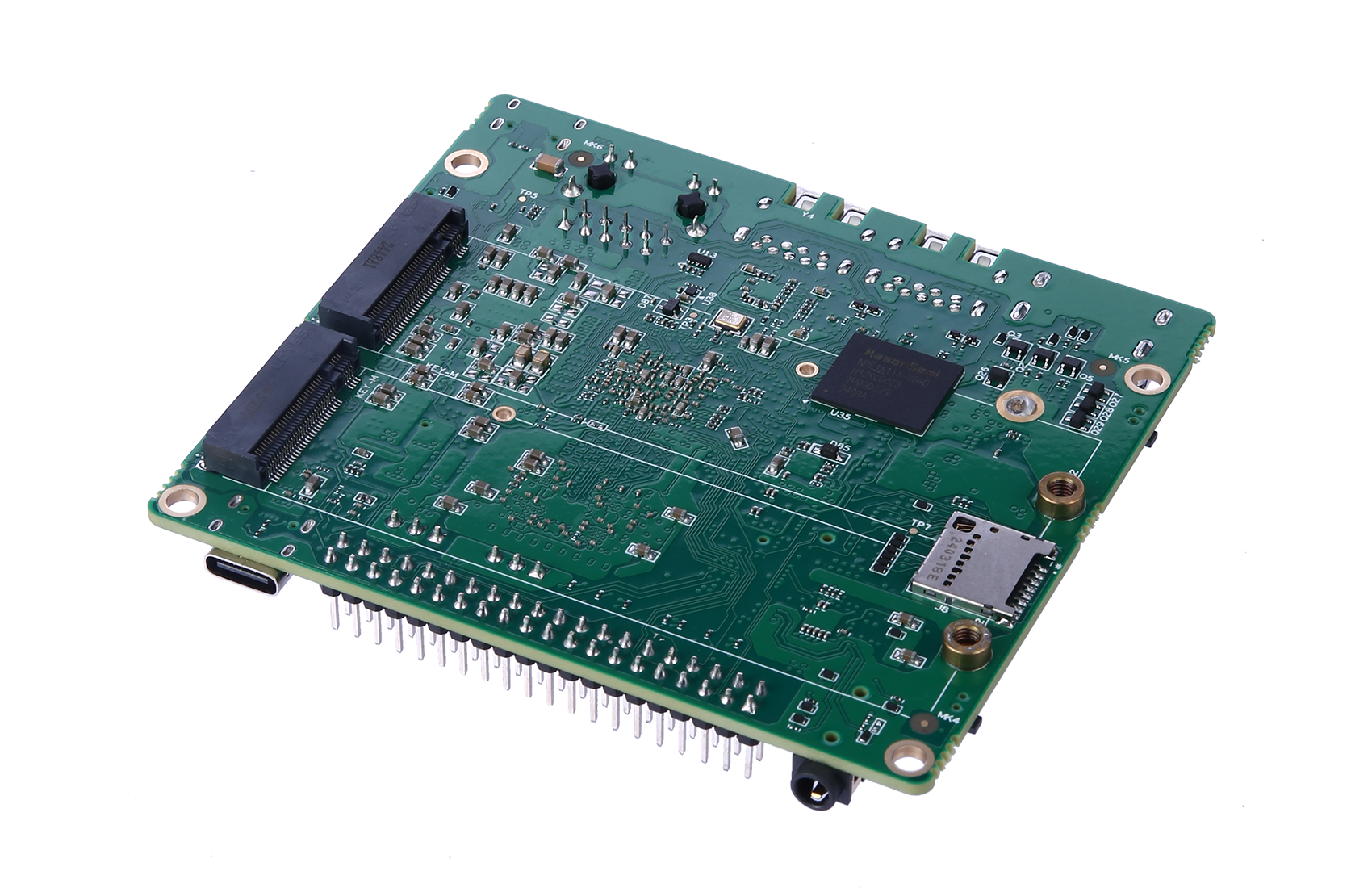

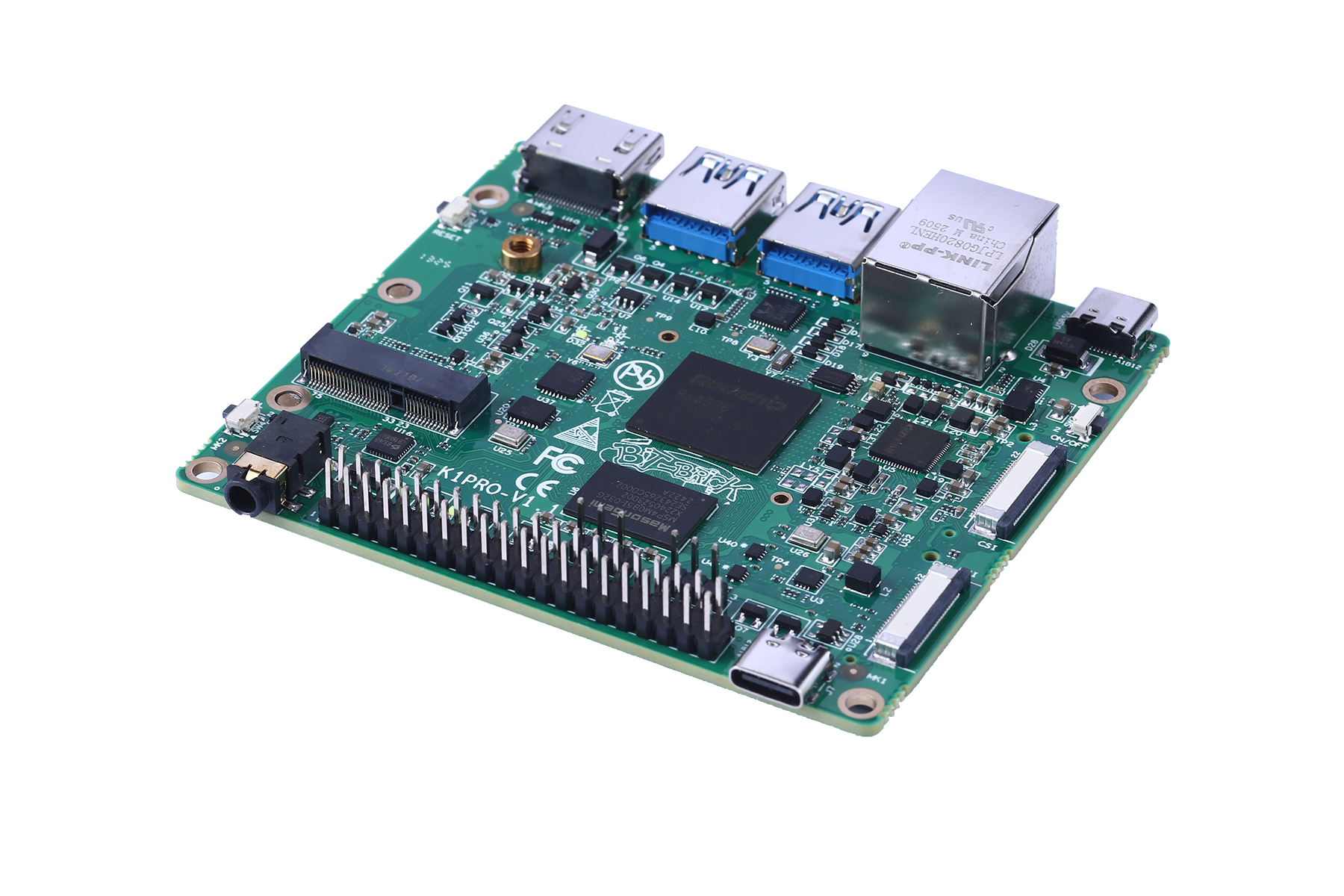

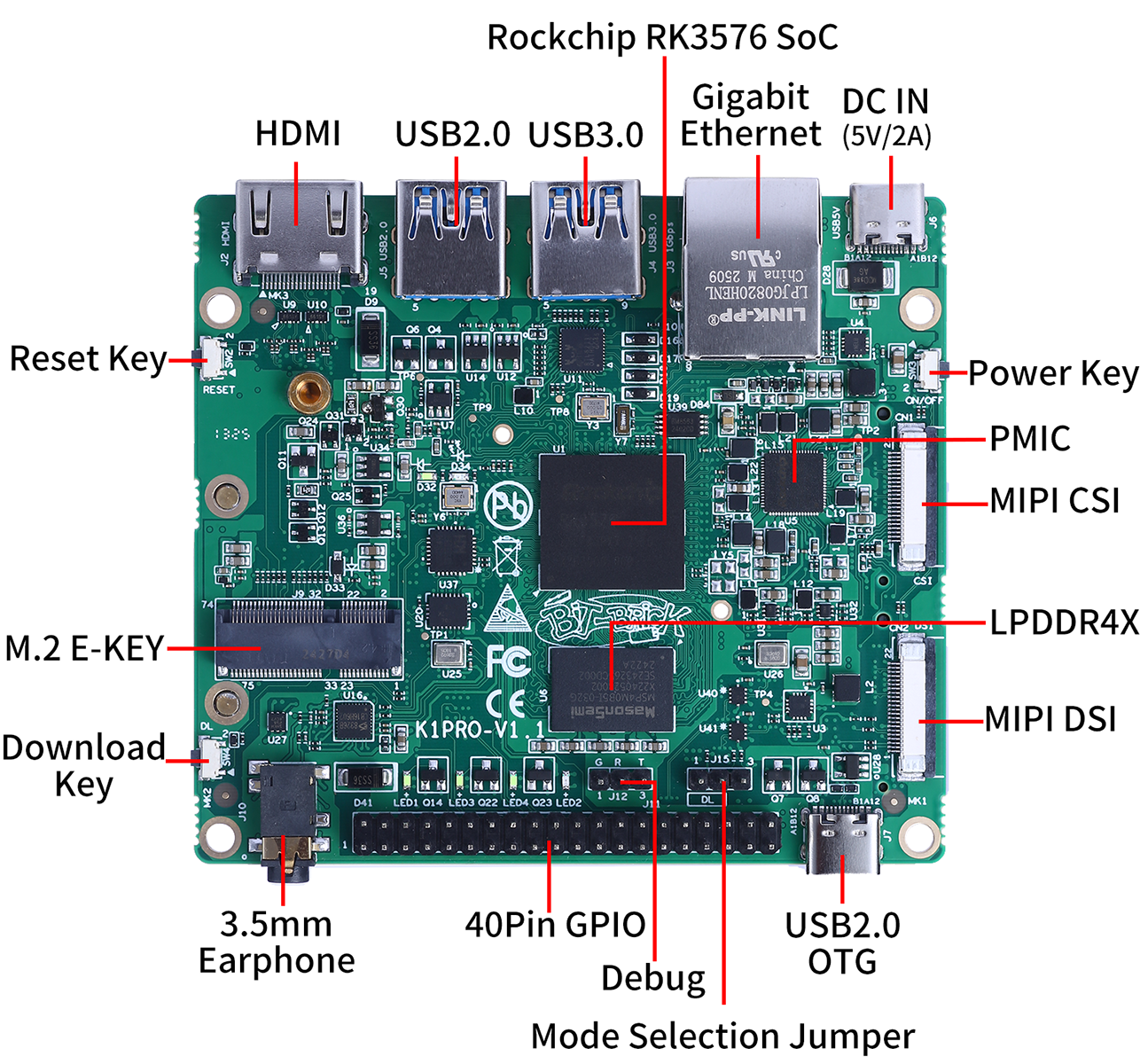

1. Overview​

front

front

2. Hardware Specifications​

ItemValue
Processor- Quad-core Cortex-A72 (up to 2.2GHz) and quad-core Cortex-A55 (up to 1.8GHz) with separate NEON coprocessor
- Mali-G52 MC3 GPU (up to 1GHz), supports OpenGL ES 3.2, Vulkan 1.1, and OpenCL 2.0
- 6 TOPS@INT8 AI performance, supports INT4/INT8/INT16/FP16/BF16/TF32 hybrid operation
Details- LPDDR4X SDRAM (2GB / 4GB / 8GB available)
- eMMC flash (typical 64GB)
- HDMI 2.1 supports up to 4K@120fps
- 1x USB 3.0, 1x USB 2.0 HOST, 1x USB 2.0 OTG
- 1x microSD card slot
- 1x Gigabit Ethernet
- 1x 4-lane MIPI CSI
- 1x 4-lane MIPI DSI
- 2x PCIe 2.0 interfaces for fast peripherals, supports NVMe SSD
- Power LED and 3 programmable LEDs
- 3.5mm headset interface, 2 onboard mics
- 5V/2A DC power via USB-C
- 40-pin connector, supports CAN/UART/SPI/I2C/PWM/I2S, etc.
- WIFI/Bluetooth OPTIONAL (M.2 slot supports SDIO WIFI module)

3. Functional Block Diagram​

front front

4. Dimensions​

front
