K1 Pro 硬件规格

K1 Pro是一款基于Rockchip RK3576应用处理器的低功耗高性能单板计算机，主板集成大容量高速内存、eMMC存储、千兆以太网口、HMDI接口、USB3.0和2.0等接口，支持多种官方功能模块，支持双NVMe固态硬盘，支持丰富的总线接口扩展。K1 Pro适合智能家居、工业控制、网关、NAS、端侧等多种应用领域。

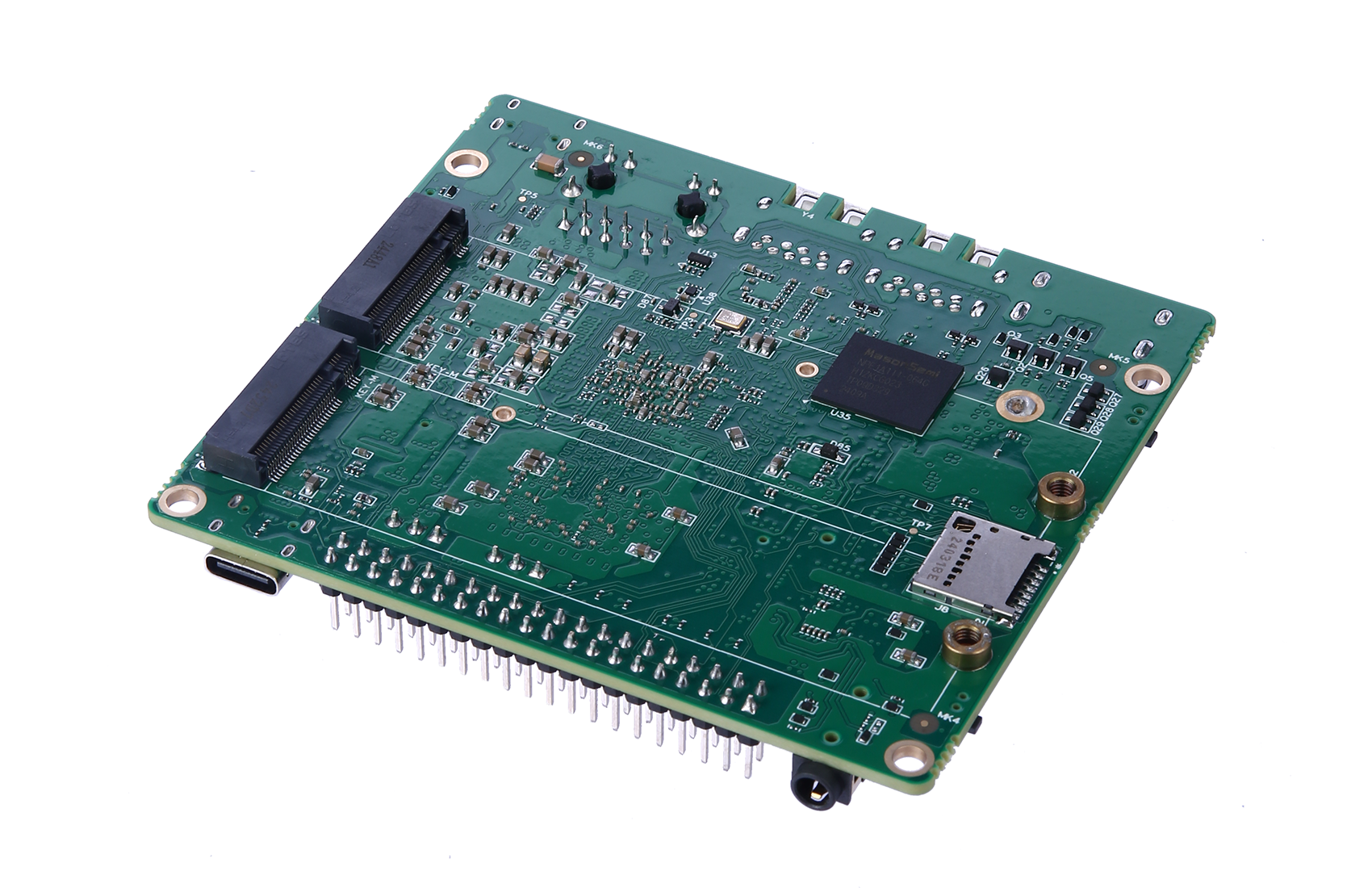

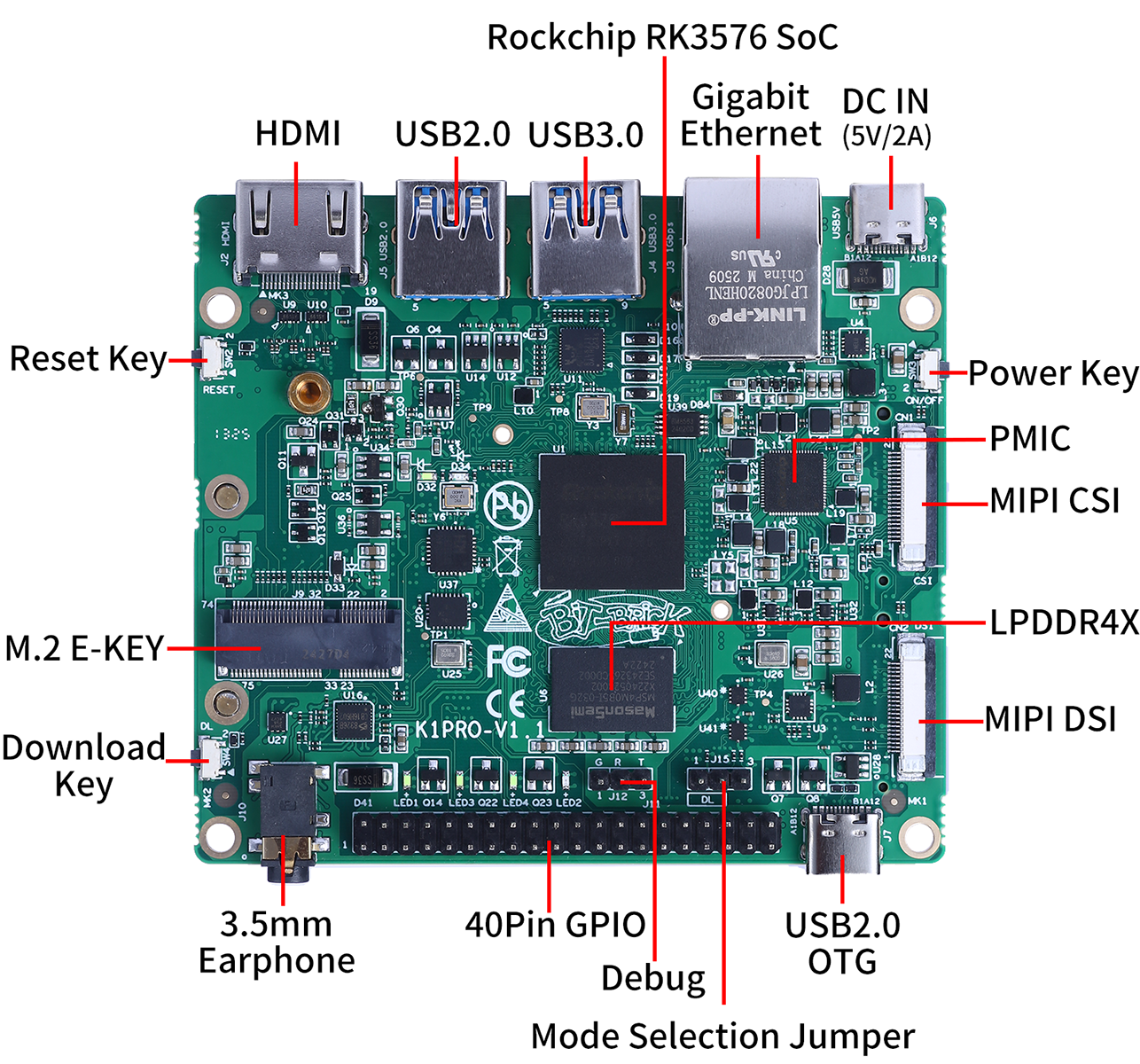

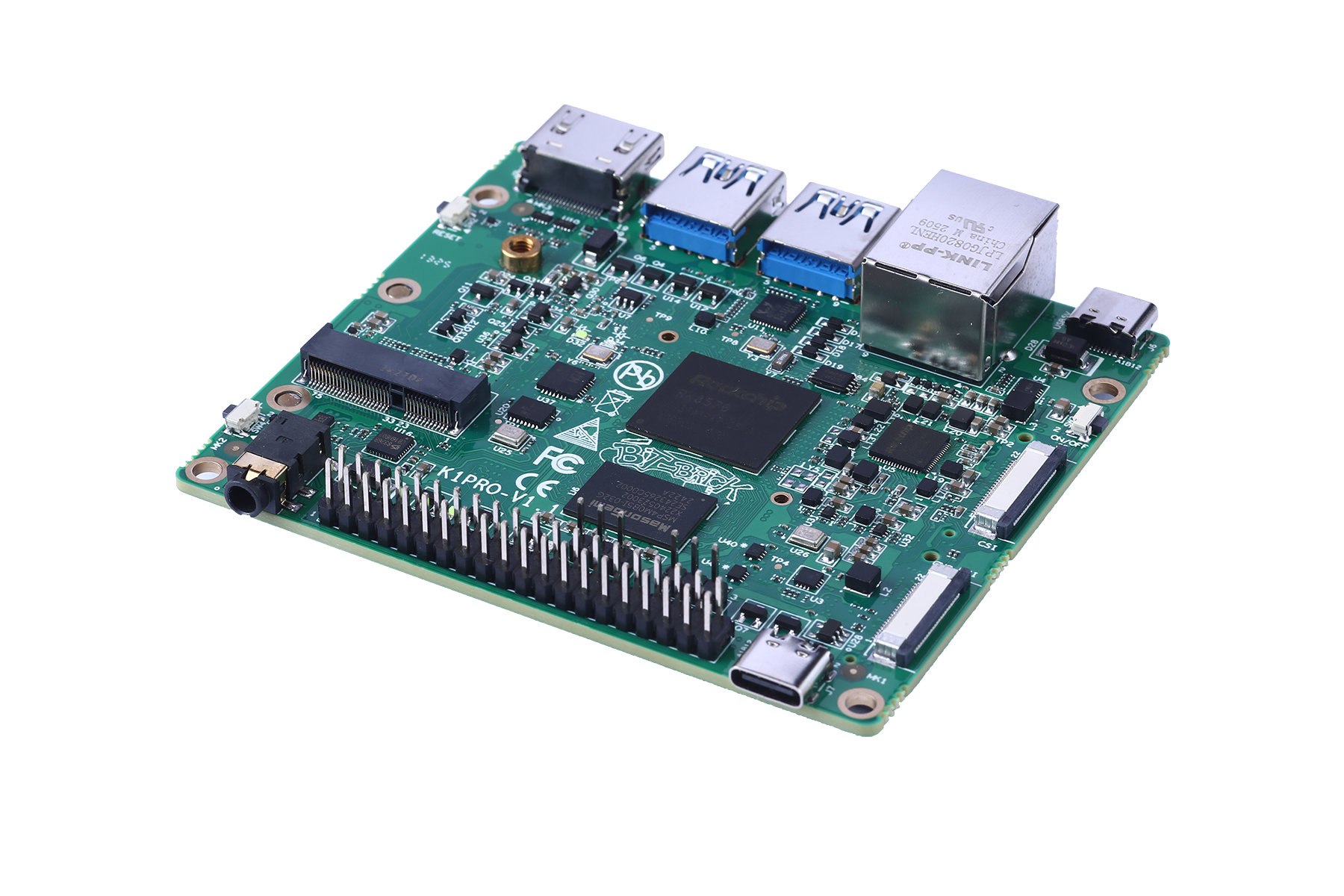

1、总览​

front

front

2、硬件规格​

项目Value
处理器-quad-core Cortex-A72（up to 2.2GHz）and quad-core Cortex-A55（up to 1.8GHz） with separately NEON coprocessor
-Mali-G52 MC3 GPU（up to 1GHz）,Support OpenGL ES 3.2, Vulkan 1.1, and OpenCL 2.0
-6 TOPS@INT8 AI performance,support INT4/INT8/INT16/FP16/BF16/TF32 hybrid operation
详细规格- LPDDR4X SDRAM (2GB / 4GB/8GB available)
-eMMC flash（typical 64GB）
-HDMI2.1 support up to 4K@120fps
-1x USB 3.0, 1x USB2.0 HOST, 1x USB2.0 OTG
-1x microSD card slot
-1x Gigabit Ethernet
-1× 4-lane MIPI CSI
-1x 4-lane MIPI DSI
-2x PCIe 2.0 interface for fast peripherals, support NVMe SSD
-Power led, and 3 programmable led support
-3.5mm headset interface, 2 mics support on board
-5V/2A DC power via USB-C
-40 pin connector, support CAN/UART/SPI/I2C/PWM/I2S,etc
-WIFI/Bluetooth OPTIONAL (M.2 slot support SDIO WIFI module)

3、功能框图​

front front

4、尺寸规格​

front
