Bit-Brick K1

Published Sep 2024

NOTE:

BIT-BRICK IS THE TRADEMARK OF BIT BRICK LTD.ANYONE WANT TO USE THIS SHOULD GET THE PERMISSION FROM BIT BRICK COMPANY.

BIT-BRICK K1是一款基于进迭时空RISC-V应用处理器的单板电脑，主板集成了大容量高速存储器，千兆以太网，高清数字显示接口，USB3.0和USB2.0接口，支持双NVME的固态硬盘接口，并支持了丰富的总线接口扩展。K1适合于不同人群对计算技术学习需求不一样的要求。

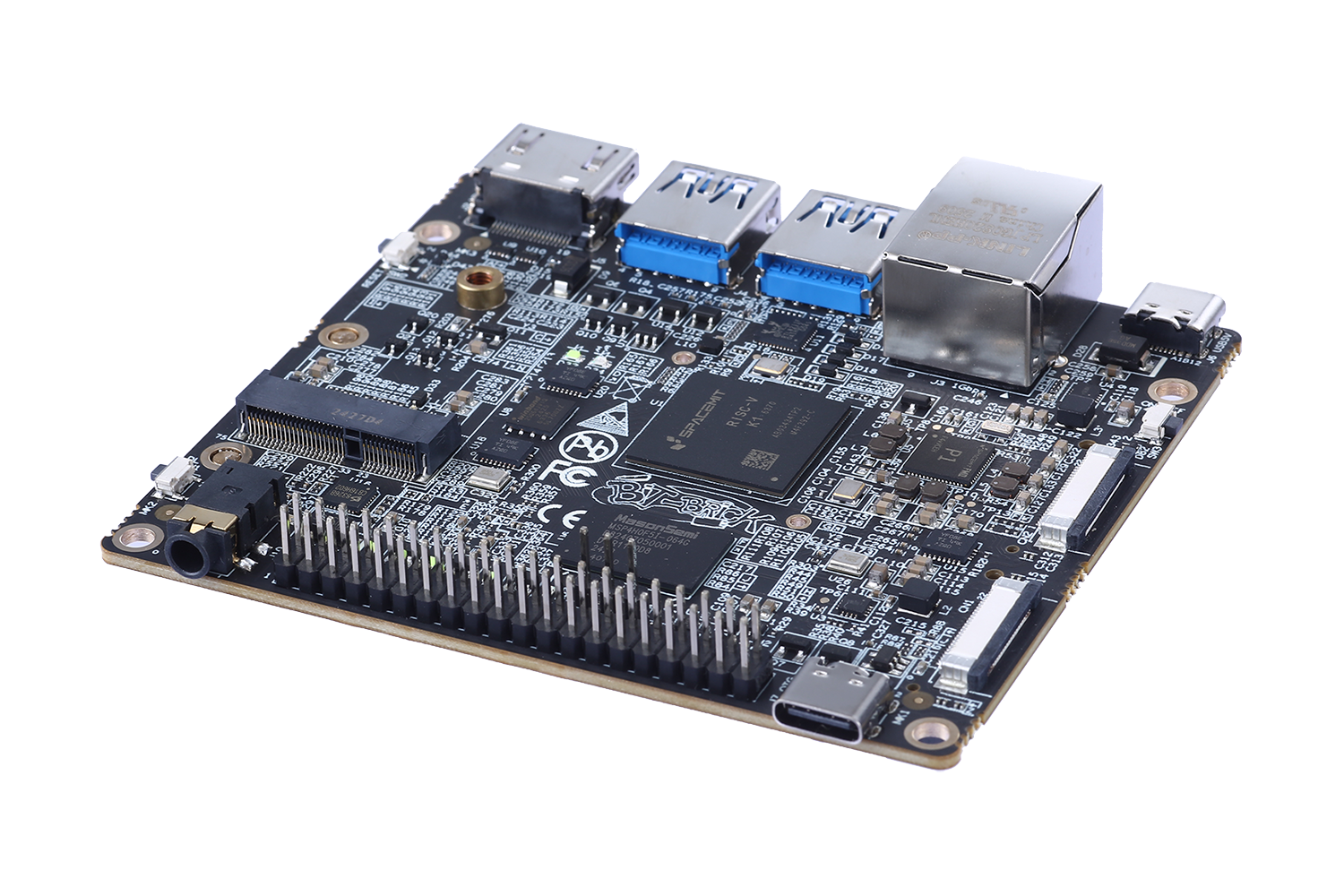

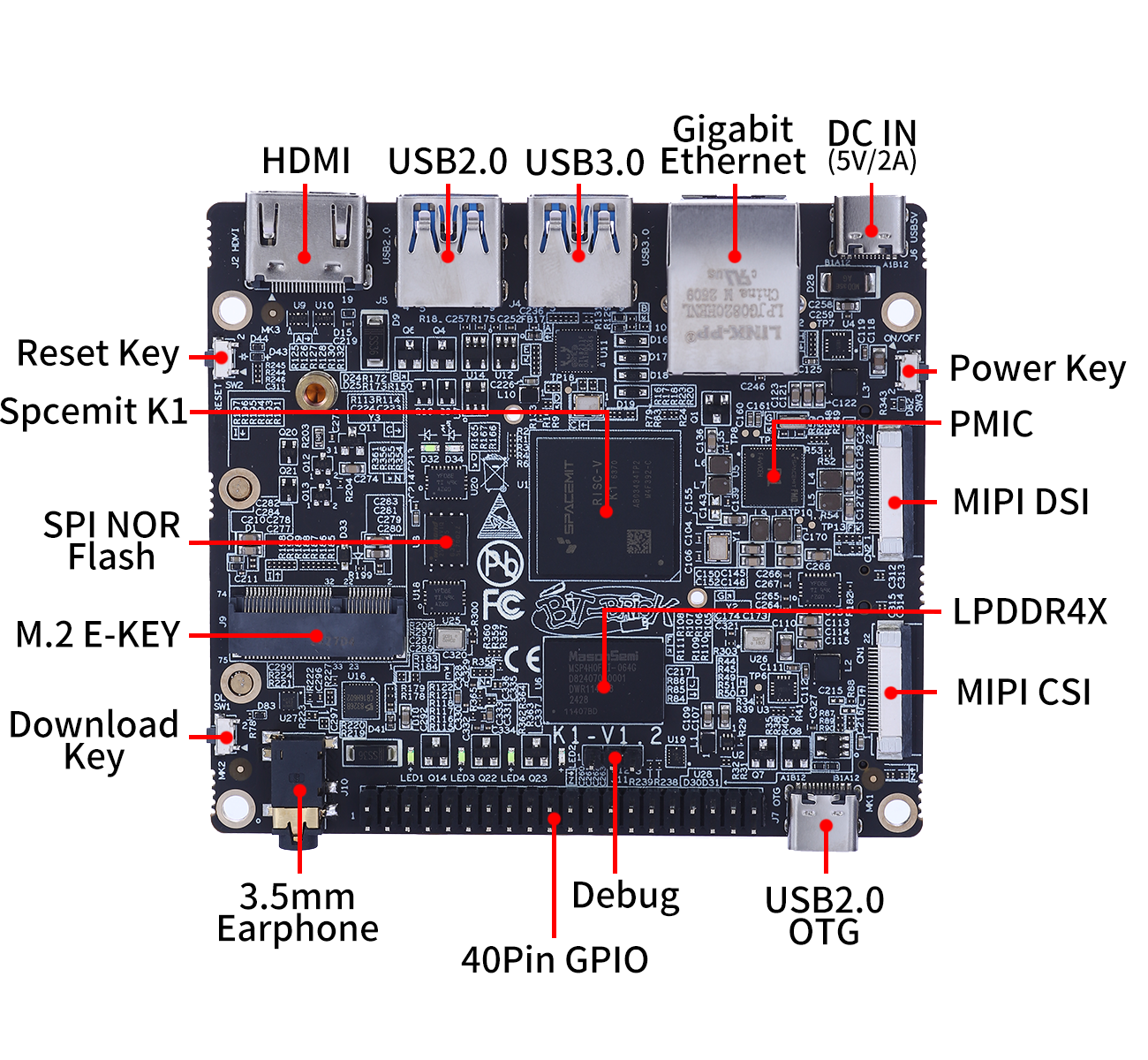

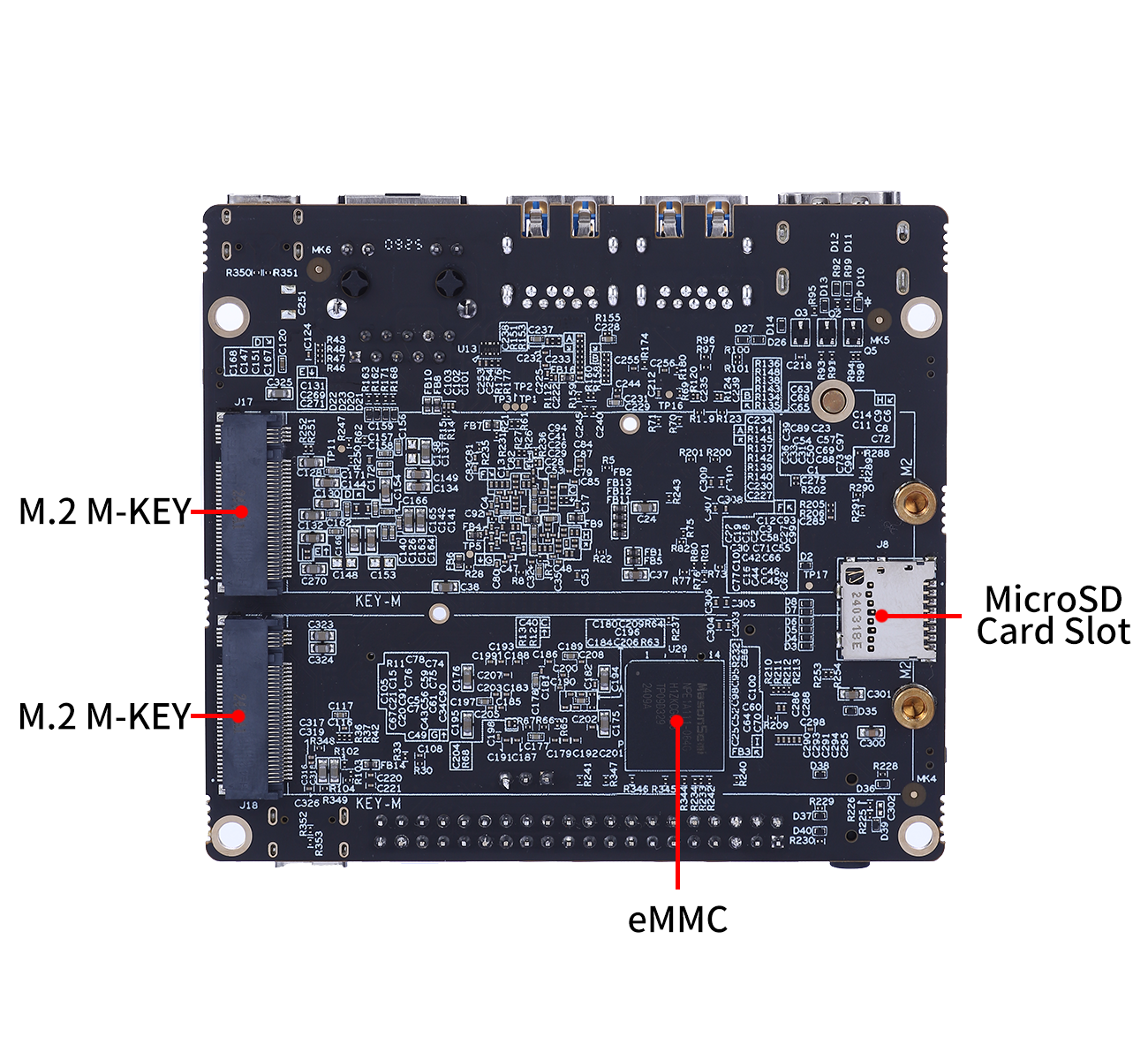

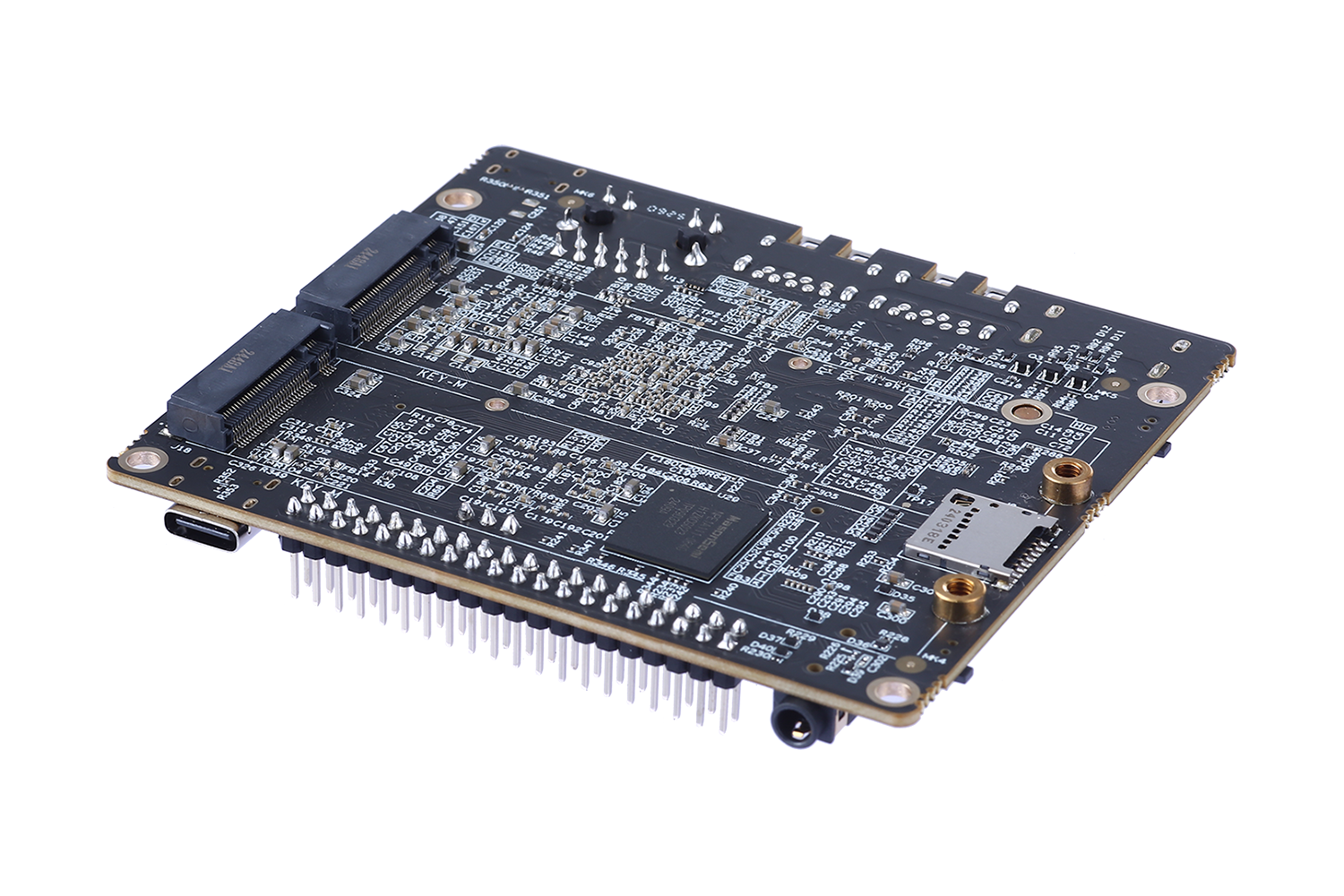

1、Overview​

front

front

2、硬件规格​

项目Value
处理器- RISC-V SpacemiT® X60™ Dual-Cluster Octa-core processors, adhere to the RISC-V 64GCVB architecture and RVA22 standard
- IMG BXE-2-32@819MHz, 32KB SLC, support OpenCL3.0/OpenGL ES 3.2/Vulkan1.3
- 2TOPS AI performance
- 详细规格参考官方芯片规格说明:官方芯片规格说明
详细规格- LPDDR4X SDRAM (2GB / 4GB/8GB available)
- HDMI 1.4a, Resolution up to 1920x1440@60Hz
- 1×USB 3.0 ports, 1xUSB2.0 HOST, 1xUSB2.0 OTG
- 1xmicroSD card slot
- 1×Gigabit Ethernet
- 1×4-lane MIPI camera/display transceivers
- PCIe 2.0 x2 interface for fast peripherals, support NVME SSD
- Power, reset key, and upgrade key support
- Power led, and 3 programmable led support
- 3.5mm headset interface, 2 mics support on board.
- 5V/5A DC power via USB-C
- 40 pin connector, support CAN/UART/SPI/I2C/PWM/I2S etc.
- WIFI/Bluetooth OPTIONAL (M.2 slot support SDIO WIFI module)

3、功能框图​

front front

4、尺寸规格​

front
