Bit-Brick SSOM-3588-X2 datasheet


0 Release Note

RevisionDataContents
V1.0June 18, 2025First Draft

2. Summary​

• The SSOM-RK3588-V2 SoM (System on Module), developed by Bit-Brick, leverages the Rockchip RK3588 SoC, which is grounded in the ARM architecture. This board combines the advanced quad-core ARM Cortex-A76 and quad-core Cortex-A55 CPUs, ensuring a balance between performance and efficiency.

• Additionally, the RK3588 boasts a high-performance 4-channel external memory interface (LPDDR4/LPDDR4X/LPDDR5), designed to meet the high memory bandwidth requirements of applications ranging from graphic post-processing to demanding computational tasks.

• The SoM contains LPDDR4X, eMMC, PMIC and four board-to-board connectors

• Since most of the SoC signals can connected through the board-to-board connectors, most of the Soc’s functions are available.

2.1 Devices​

• Soc: RK3588 of Rockchip.

• 2xLPDDR4X up to 8GB

• eMMC up to 128GB

• PMIC: RK806-1 of Rockchip

2.2 Features​

• Microprocessor

  • Quad-core Cortex-A76 up to 2.4GHz

  • Quad-core Cortex-A55 up to 1.8GHz

  • 64KB I-cache 64KB D-cache and 512KB L2 for A76 each core, 32KB I-cache 32KB D-cache and 512KB L2 for A55 each core, 3MB L3 cache

  • 6.0 TOPS Neural Process Unit, Embedded 384KB*3 internal buffer

  • Mali-G610 MP4 up to 0.8GHz

• Memory Organization

  • LPDDR4X RAM 16GB

  • EMMC 64GB

• Boot ROM

  • Supports system code download through USB OTG

• Secure system

  • Embedded two cipher engine

  • Support key ladder to guarantee key secure

  • Support secure OS and data scrambling

  • Support OTP

• Video Decoder/Encoder

  • Supports video decoding up to 8K@60fps

  • Supports H.264/265 encode up to 8K@30fps

  • H.264 HP encoding up to 1080p@100fps

  • Picture size up to 8192x8192

• NPU

  • Include Triple NPU core

  • Support deep learning frameworks

• Display Subsystem

Video Output

  • Supports 2-CH HDMI 2.1 TX with ARC, up to 8K@60fps

  • Or EDP TX interface up to 4K@60Hz

  • HDMI 2.1 support FRL mode

  • Supports 4 lanes MIPI DSI up to 4K@60Hz

  • Supports 2-CH PD1.4a interface up to 8K@30Hz

  • Supports BT-1120 16bit output

Video/Image Input

  • Supports 3-CH MIPI 4lanes CSI interfaces

  • Or 4-CH MIPI 2lanes + 1-CH 4lanes CSI interfaces

  • Supports HDMI 2.0 RX interface up to 4K@30Hz

  • Supports DVP 8/16-bit input

• Audio

  • Three I2S/PCM interfaces

  • Support 8-ch TX/RX on I2S0/1

  • Support Mic array Up to 8ch PDM/TDM interface

  • Two SPDIF output

  • Support voice activity detection

• USB/PCIE/SATA3

  • Two USB2.0 OTG/Host and two USB2.0 Host interfaces

  • Two USB3.0 OTG/Host or DP interface

  • One USB3.0 Host or SATA3 interface.

  • One PCIE2.1x1 or SATA3 interface.

  • One SATA3 interface.

  • One PCIE3.0x2 interface

  • Not support USB3.0/USB2.0 OTG SRP, HNP and RSP

  • SATA3 support five device each port via PM switch

• Ethernet

  • Support up to 2-CH 1GB Ethernet

  • Support RMII/RGMII PHY interface

• I2C

  • Up to 7-CH I2C

  • Support standard mode and fast mode (up to 400kbit/s)

• SDIO / SDMMC

  • Support SDIO 3.0 protocol

  • Support SD3.0 card

• SPI

  • Up to four SPI controllers,

  • Full-duplex synchronous serial interface

• UART

  • Support up to 10 UARTs

  • UART2 with 2 wires for debug

  • Embedded two 64byte FIFO

• CAN

  • Support up to three CAN controller

  • Support CAN 2.0B protocol

• ADC

  • Up to Two ADC channels

  • 12-bit resolution up to 1MS/s sampling rate

  • Voltage input range between 0V to 1.8V

• PWM

  • Up to15 PWMs with interrupt-based operation

  • Support 32bit time/counter facility

  • IR option on PWM3/7/11/15

• Power unit

  • PMIC RK806-1 on board

  • 3.3 ~ 4.4V Power input

  • 1.8V and 3.3V max 500mA out

2.3 SoM Block Diagram​

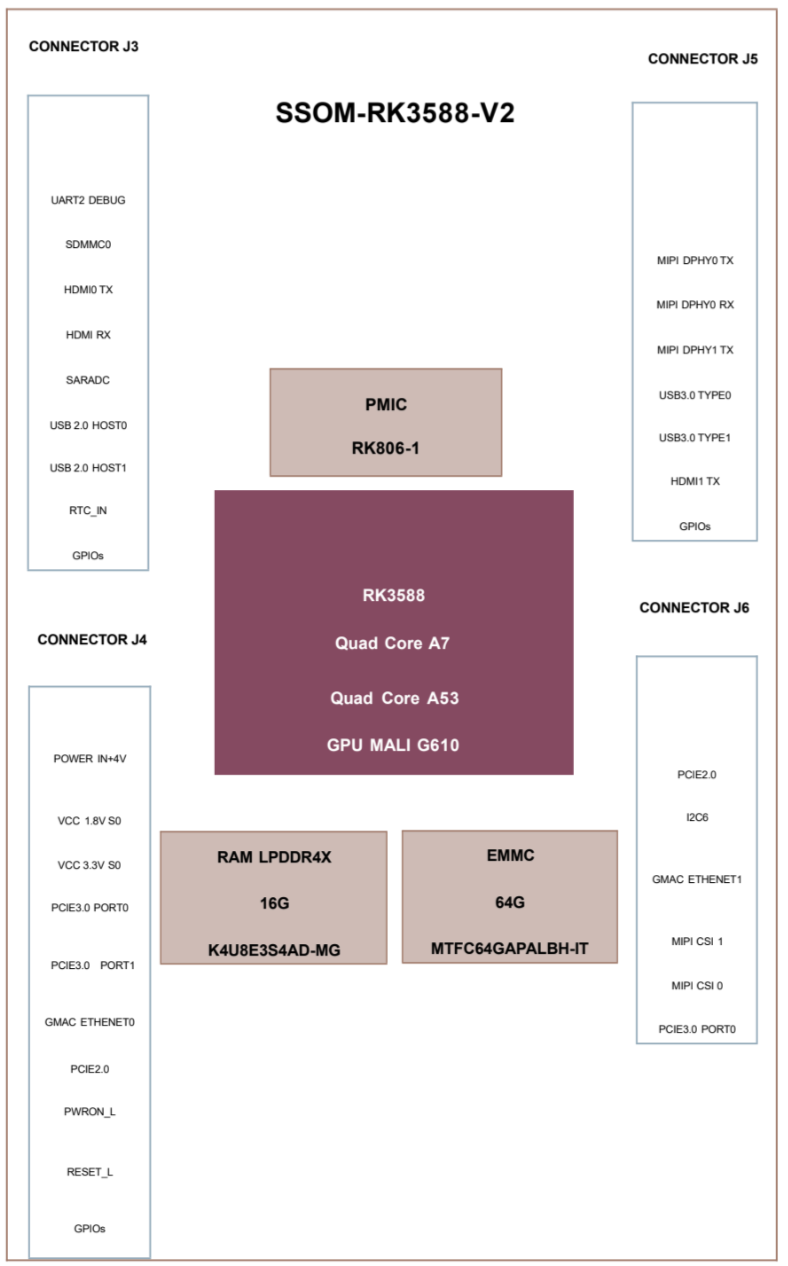

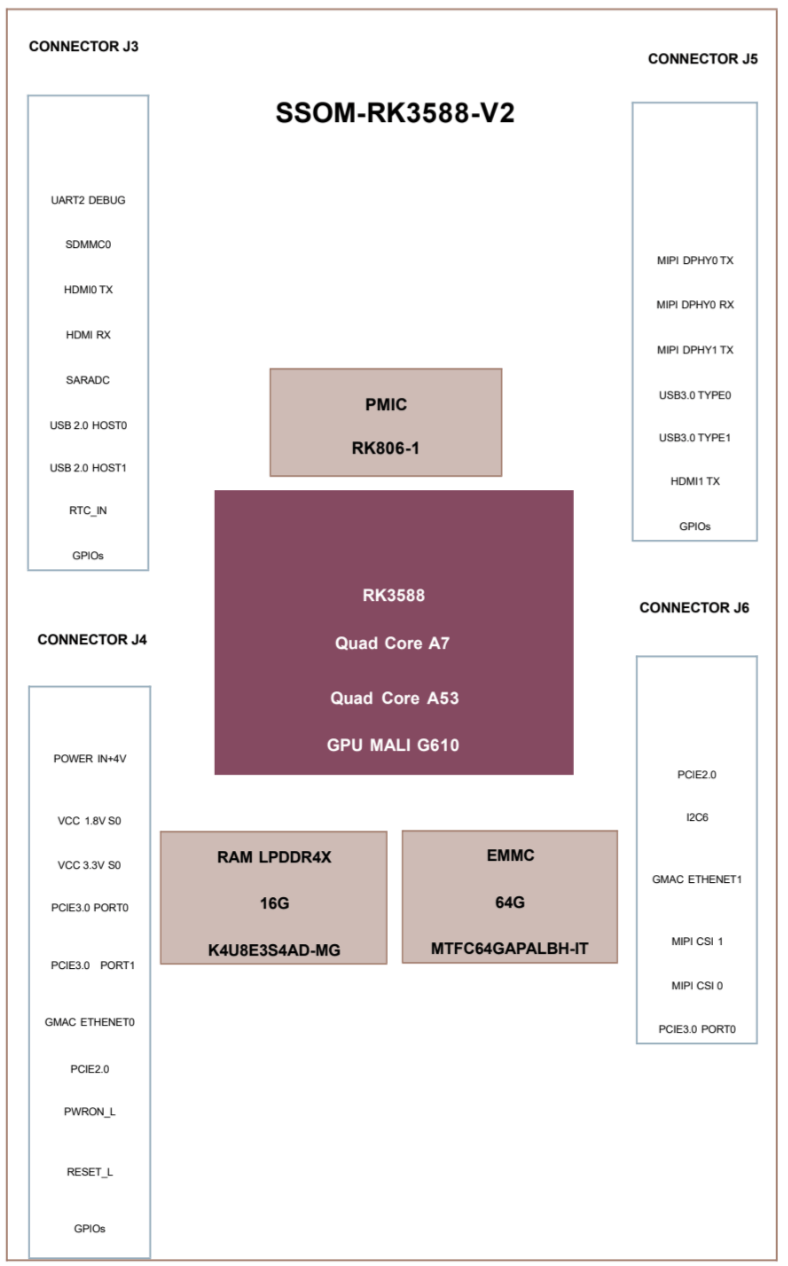

alt text

Figure 1: Shows SSOM-RK3588-V2 block diagram

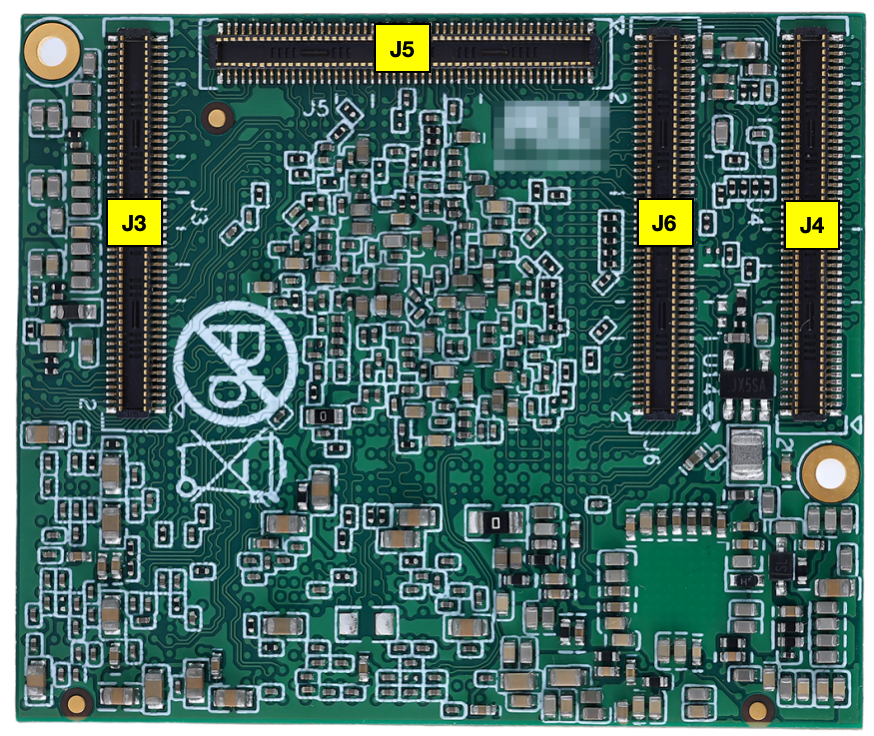

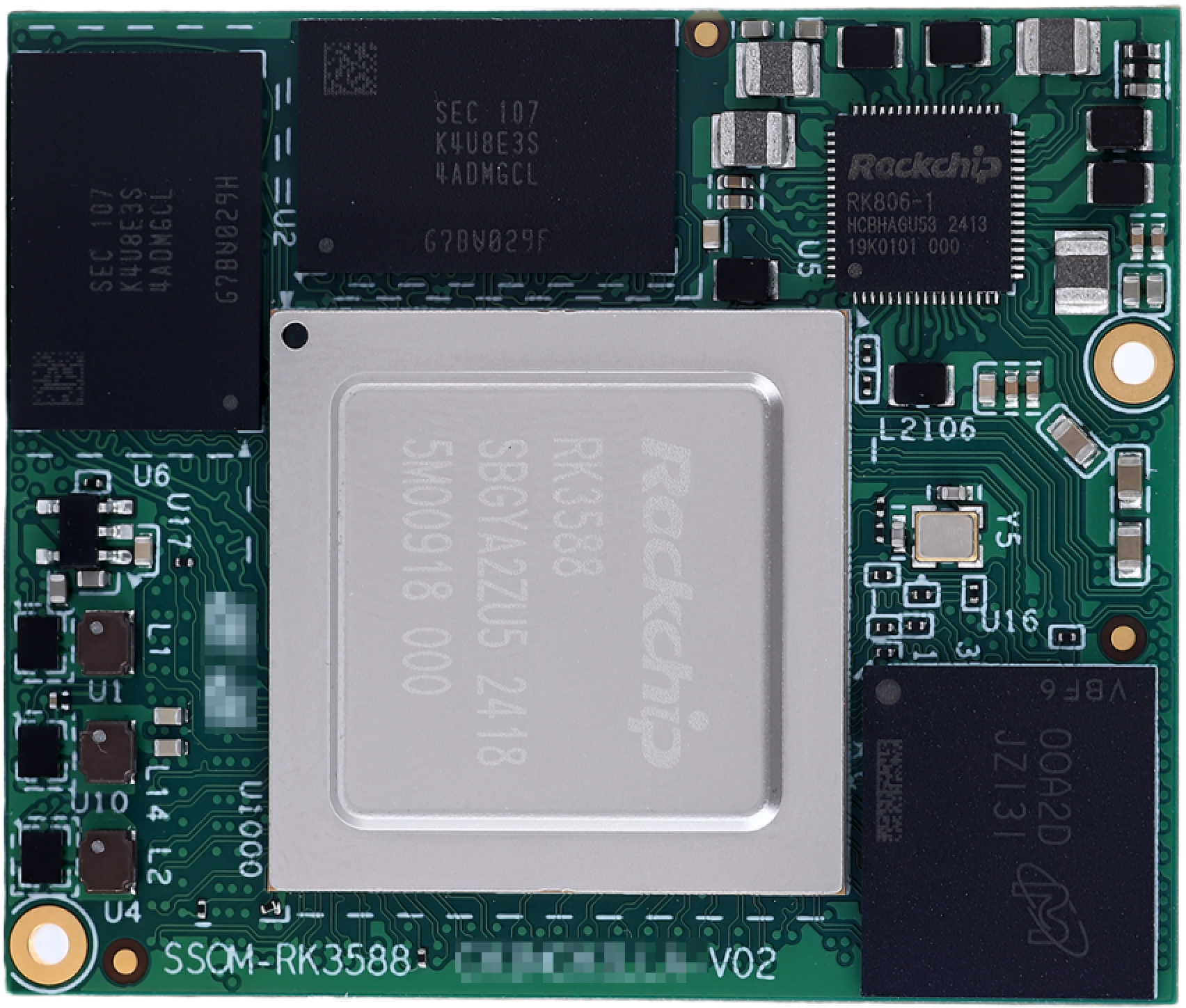

2.4 Board Pictures​


Figure 2: shows the top-side view of the SSOM-RK3588-V2 board

alt text

Figure 3: shows the bottom-side view of the SSOM-RK3588-V2 board

3 Mechanical Specification​

3.1 Board​

• Board dimensions: 47mm x 39.4mm x 4.7mm (dimensional tolerance ±0.10mm)

• Component mounting surface: Maximum height: 2mm (Soc part RK3588)

• Connectors surface P/N: DF40C-100DP-0.4V(51)

• Board thickness: 1.2mm

• 10 layers of immersion gold PCB.

3.2 Holes For Fixing The Board​

• Holes size: Hole diameter: 1.6mm

• Pad outer diameter: 3.175mm

• Holes position


Figure 4: Holes position on top-side

All dimension is mm

3.3 Connectors Position​


Figure 5: Connectors position on bottom-side All dimension is mm

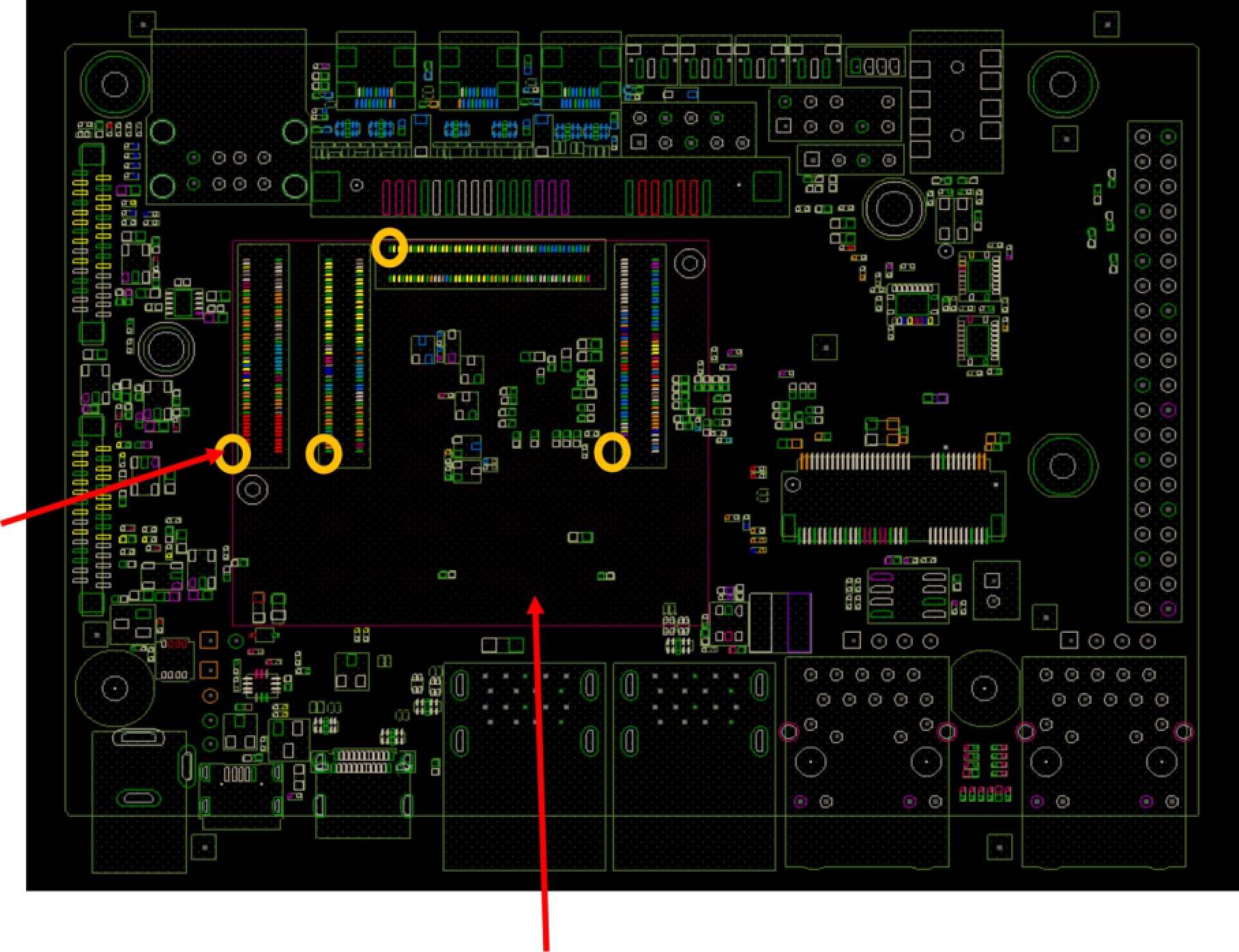

The SoM board connectors used DF40C-100DP-0.4V(51) and the corresponding carrier board connector is DF40HC(3.0)-100DS-0.4V(58)

These model numbers suggest that these connectors are part of Hirose Electric Co's DF40 series, which are known for their compact size and high reliability in board-to-board connection.

3.4 Main Components​

• Part location


Figure 6: Parts position on top-side All dimension is mm

• Part Height

U1000: 2mm (Soc part RK3588)

U2, U6: 0.8 to 1mm (RAM LPDDR4X)

U5: 0.9mm (PMIC)

U17: 1.25mm

L1, L2, L4: 1.2mm

L2100, L2102, L2104, L2106, L2108, L2109: 1mm

L2101, L2103, L2105, L2107: 1.2mm

4.Connector Pin Function Description​

Note: Pin Type Symbol Definitions

SymbolDescription
IInput
OOutput
I/OInput/Output
AIAnalog Input
AOAnalog Output
AI/OAnalog Input/Output
PIPower Supply
POPower Output
SOMSystem on module

Table 1: J3 Connector Interface Pin Definition

Pin NumberSignal NameSignal TypeIOVoltageMain ICIC Pin NumberIC Pin Name
1(J3)GNDPI0V
2(J3)GPIO1_A7I/O1.8VRK3588C25PDM1_SDI0_M1/PCIE30X1_1_PERSTN_M2/PWM3 _IR_M3/SPI2_CS0_M0/GPIO1_A7_u
3(J3)GPIO1_A6I/O1.8VRK3588C24HDMI_TX1_HPD_M0/SPI2_CLK_M0/GPIO1_A6_d
4(J3)GPIO3_D1I/O3.3VRK3588AG23CIF_D13/PCIE20X1_2_PERSTN_M0/HDMI_RX_CE C_M1/UART4_TX_M1/PWM9_M2/SPI0_MISO_M3/ GPIO3_D1_d
5(J3)GPIO3_D2I/O3.3VRK3588AG25CIF_D14/PCIE30X2_CLKREQN_M2/HDMI_RX_SCL _M1/I2C7_SCL_M2/UART9_RTSN_M2/SPI0_MOSI _M3/GPIO3_D2_d
6(J3)GPIO1_D4I/O1.8VRK3588D28I2S0_SDI0/GPIO1_D4_d
7(J3)GPIO4_B7I/O3.3VRK3588AJ28BT1120_D13/PCIE20X1_2_CLKREQN_M1/HDMI_T X0_SCL_M0/I2C5_SDA_M1/SPI3_CLK_M1/GPIO4_ B7_u
8(J3)UART2_TX_M0_DEBUGI/O1.8VRK3588P29I2S1_MCLK_M1/JTAG_TCK_M2/I2C1_SCL_M0/UA RT2_TX_M0/PCIE30X1_1_CLKREQN_M0/GPIO0_B 5_d
9(J3)GPIO3_D3I/O3.3VRK3588AG24CIF_D15/PCIE30X2_WAKEN_M2/HDMI_RX_SDA_ M1/I2C7_SDA_M2/UART9_CTSN_M2/PWM10_M2/ SPI0_CLK_M3/GPIO3_D3_d
10(J3)UART2_RX_M0_DEBUGI/O1.8VRK3588R29I2S1_SCLK_M1/JTAG_TMS_M2/I2C1_SDA_M0/UA RT2_RX_M0/PCIE30X1_1_WAKEN_M0/GPIO0_B6_ d
11(J3)GPIO3_C6I/O3.3VRK3588AG26CIF_D10/PCIE30X4_PERSTN_M2/HDMI_TX1_SCL_ M1/SPI3_MISO_M3/GPIO3_C6_u
12(J3)GPIO1_A0I/O1.8VRK3588A24PCIE30X1_1_CLKREQN_M2/DP0_HPDIN_M2/I2C2 SDA_M4/UART6_RX_M1/SPI4_MISO_M2/GPIO1 A0_d
13(J3)TYPEC1_OTG_IDIRK3588AK8TYPEC1_USB20_OTG_ID
14(J3)SDMMC0_D0I/ORK3588AD2SDMMC_D0/PDM1_SDI3_M0/JTAG_TCK_M1/I2C3 _SCL_M4/UART2_TX_M1/PWM8_M1/GPIO4_D0_u
15(J3)TYPEC1_USB20_VBUSDETIRK3588AL8TYPEC1_USB20_VBUSDET
16(J3)SDMMC0_D1I/ORK3588AD1SDMMC_D1/PDM1_SDI2_M0/JTAG_TMS_M1/I2C 3_SDA_M4/UART2_RX_M1/PWM9_M1/GPIO4_D1 _u
17(J3)GNDPI0V
18(J3)SDMMC0_D3I/ORK3588AF1SDMMC_D3/PDM1_SDI0_M0/JTAG_TMS_M0/I2C 8_SDA_M0/UART5_RTSN_M0/PWM10_M1/GPIO4 _D3_u
19(J3)HDMI_RX_CLKPAIRK3588AF6HDMI_RX_CLKP
20(J3)SDMMC0_D2I/ORK3588AF2SDMMC_D2/PDM1_SDI1_M0/JTAG_TCK_M0/I2C8 _SCL_M0/UART5_CTSN_M0/GPIO4_D2_u
21(J3)HDMI_RX_CLKNAIRK3588AF5HDMI_RX_CLKN
22(J3)SD_CLKI/ORK3588AE1SDMMC_CLK/PDM1_CLK0_M0/TEST_CLKOUT_M 0/MCU_JTAG_TMS_M0/CAN0_RX_M1/UART5_TX _M0/GPIO4_D5_d
23(J3)GNDPI0V
24(J3)SDMMC0_CMDI/ORK3588AE2SDMMC_CMD/PDM1_CLK1_M0/MCU_JTAG_TCK_ M0/CAN0_TX_M1/UART5_RX_M0/PWM7_IR_M1/ GPIO4_D4_u
25(J3)HDMI_RX_D0NAIRK3588AG4HDMI_RX_D0N
26(J3)GNDPI0V
27(J3)HDMI_RX_D0PAIRK3588AG5HDMI_RX_D0P
28(J3)GPIO1_B2I/O1.8VRK3588D26PDM1_SDI3_M1/PCIE30X4_PERSTN_M3/UART4_ RX_M2/SPI0_MOSI_M2/GPIO1_B2_d
29(J3)GNDPI0V
30(J3)GPIO0_C6I/O1.8VRK3588T29I2S1_SDI1_M1/NPU_AVS/UART0_RTSN/PWM5_M 1/SPI0_CLK_M0/PCIE30X4_CLKREQN_M0/SATA_ CP_POD/GPIO0_C6_u
31(J3)HDMI_RX_D1NAIRK3588AH5HDMI_RX_D1N
32(J3)GPIO0_C5I/O1.8VRK3588P30I2S1_SDI0_M1/GPU_AVS/UART0_TX_M0/I2C4_SC L_M2/DP1_HPDIN_M1/PWM4_M0/PCIE30X1_0_P ERSTN_M0/GPIO0_C5_u
33(J3)HDMI_RX_D1PAIRK3588AH6HDMI_RX_D1P
34(J3)GPIO0_B7I/O1.8VRK3588T28I2S1_LRCK_M1/PWM0_M0/I2C2_SCL_M0/CAN0_ TX_M0/SPI0_CS1_M0/PCIE30X1_1_PERSTN_M0/ GPIO0_B7_d
35(J3)GNDPI0V
36(J3)SDMMC_DET/GPIO0_A4_ UI/ORK3588P31SDMMC_DET/GPIO0_A4_u
37(J3)HDMI_RX_D2NAIRK3588AJ4HDMI_RX_D2N
38(J3)GPIO3_C1I/O3.3VRK3588Y27GMAC1_PPSCLK/PCIE30X2_BUTTON_RSTN/UART 7_RX_M1/SPI1_CLK_M1/GPIO3_C1_d
39(J3)HDMI_RX_D2PAIRK3588AJ5HDMI_RX_D2P
40(J3)GPIO0_C4I/O1.8VRK3588R30PDM0_CLK1_M1/PWM2_M0/UART0_RX_M0/I2C4 SDA_M2/DP0_HPDIN_M1/PCIE30X1_0_WAKEN M0/GPIO0_C4_d
41(J3)GNDPI0V
42(J3)GPIO3_D4I/O3.3VRK3588AA27HDMI_TX0_HPD_M1/PCIE30X2_PERSTN_M2/HD MI_RX_HPDOUT_M1/MCU_JTAG_TCK_M1/UART9 _RX_M2/SPI0_CS0_M3/GPIO3_D4_d
43(J3)USB20_HOST0_DPAI/ORK3588AK6USB20_HOST0_DP
44(J3)GPIO3_D5I/O3.3VRK3588AB28PCIE30X4_BUTTON_RSTN/DP1_HPDIN_M0/MCU_ JTAG_TMS_M1/UART9_TX_M2/PWM11_IR_M3/S PI0_CS1_M3/GPIO3_D5_d
45(J3)USB20_HOST0_DMAI/ORK3588AL6USB20_HOST0_DM
46(J3)GPIO1_B1I/O1.8VRK3588D25PDM1_SDI2_M1/PCIE30X4_WAKEN_M3/SPI0_MIS O_M2/GPIO1_B1_d
47(J3)GNDPI0V
48(J3)GPIO1_B4I/O1.8VRK3588E24PDM1_CLK0_M1/PCIE30X1_0_PERSTN_M2/UART 7_RX_M2/SPI0_CS0_M2/GPIO1_B4_u
49(J3)USB20_HOST1_DPAI/ORK3588AL7USB20_HOST1_DP
50(J3)GPIO1_B6I/O1.8VRK3588E26MIPI_CAMERA1_CLK_M0/SPDIF0_TX_M0/PCIE30 X2_WAKEN_M3/HDMI_RX_HPDOUT_M2/I2C5_SC L_M3/UART1_TX_M1/GPIO1_B6_u
51(J3)USB20_HOST1_DMAI/ORK3588AM7USB20_HOST1_DM
52(J3)GPIO1_D7I/O1.8VRK3588F25MIPI_CAMERA4_CLK_M0/PCIE30X2_CLKREQN_M 3/HDMI_RX_SDA_M2/I2C8_SDA_M2/UART1_CTS N_M1/PWM15_IR_M3/GPIO1_D7_u
53(J3)GNDPI0V
54(J3)GPIO1_D6I/O1.8VRK3588F24MIPI_CAMERA3_CLK_M0/HDMI_RX_SCL_M2/I2C 8_SCL_M2/UART1_RTSN_M1/PWM14_M2/GPIO1 _D6_u
55(J3)GPIO1_D0I/O1.8VRK3588F26I2S0_SDO1/I2C7_SCL_M0/UART6_TX_M2/SPI1_M ISO_M2/GPIO1_D0_d
56(J3)GPIO1_D2I/O1.8VRK3588F28I2S0_SDO3/I2S0_SDI2/PDM0_SDI2_M0/I2C1_SCL _M4/UART4_TX_M0/PWM0_M1/SPI1_CLK_M2/GP IO1_D2_d
57(J3)GPIO1_D1I/O1.8VRK3588F27I2S0_SDO2/I2S0_SDI3/PDM0_SDI1_M0/I2C7_SDA _M0/UART6_RX_M2/SPI1_MOSI_M2/GPIO1_D1_d
58(J3)GPIO1_B5I/O1.8VRK3588E25PCIE30X1_0_CLKREQN_M2/UART7_TX_M2/SPI0_ CS1_M2/GPIO1_B5_u
59(J3)GPIO1_D5I/O1.8VRK3588G26PDM0_SDI0_M0/SPI1_CS1_M2/GPIO1_D5_d
60(J3)GPIO1_D3I/O1.8VRK3588E28I2S0_SDI1/PDM0_SDI3_M0/I2C1_SDA_M4/UART4 _RX_M0/PWM1_M1/SPI1_CS0_M2/GPIO1_D3_d
61(J3)GPIO1_C1I/O1.8VRK3588G27I2C3_SCL_M0/UART3_TX_M0/SPI4_MOSI_M0/GPI O1_C1_z
62(J3)GPIO1_C0I/O1.8VRK3588G29I2C3_SDA_M0/UART3_RX_M0/SPI4_MISO_M0/GP IO1_C0_z
63(J3)GPIO1_B3I/O1.8VRK3588D27PDM1_CLK1_M1/PCIE30X1_0_WAKEN_M2/SATA0 _ACT_LED_M1/UART4_TX_M2/SPI0_CLK_M2/GPI O1_B3_d
64(J3)GNDPI0V
65(J3)GPIO1_C2I/O1.8VRK3588F30I2S0_MCLK/I2C6_SDA_M1/UART3_RTSN/PWM3_I R_M2/SPI4_CLK_M0/GPIO1_C2_d
66(J3)HDMI0_TX_SBDP/EDP0_T X_AUXPAI/ORK3588AG2HDMI_TX0_SBDP/EDP_TX0_AUXP
67(J3)GPIO3_C4I/O3.3VRK3588AH26CIF_D8/FSPI_CS0N_M2/PCIE30X4_CLKREQN_M2/ HDMI_TX1_CEC_M2/CAN2_RX_M0/UART5_TX_M 1/SPI3_CS0_M3/GPIO3_C4_u
68(J3)HDMI0_TX_SBDN/EDP0_T X_AUXNAI/ORK3588AG1HDMI_TX0_SBDN/EDP_TX0_AUXN
69(J3)GPIO3_D0I/O3.3VRK3588AH24CIF_D12/PCIE20X1_2_WAKEN_M0/HDMI_TX0_SD A_M2/I2C5_SDA_M0/UART4_RX_M1/PWM8_M2/S PI3_CLK_M3/GPIO3_D0_u
70(J3)GNDPI0V
71(J3)GPIO3_C5I/O3.3VRK3588AH25CIF_D9/FSPI_CS1N_M2/PCIE30X4_WAKEN_M2/H DMI_TX1_SDA_M1/CAN2_TX_M0/UART5_RX_M1/ SPI3_CS1_M3/GPIO3_C5_u
72(J3)HDMI0_TX3P_PORT/EDP0 _TX_D3PAORK3588AH3HDMI_TX0_D3P/EDP_TX0_D3P
73(J3)SARADC_VIN5_HW_IDAI1.8VRK3588AK15SARADC_IN5
74(J3)HDMI0_TX3N_PORT/EDP0 _TX_D3NAORK3588AH2HDMI_TX0_D3N/EDP_TX0_D3N
75(J3)GPIO4_B6I/O3.3VRK3588AJ27BT1120_D12/PCIE30X4_PERSTN_M1/HDMI_RX_H PDOUT_M0/SATA0_ACT_LED_M0/I2C5_SCL_M1/ PWM13_M1/SPI3_MOSI_M1/GPIO4_B6_d
76(J3)GNDPI0V
77(J3)TYPEC0_OTG_IDIRK3588AL14TYPEC0_USB20_OTG_ID
78(J3)HDMI0_TX0P_PORT/EDP0 _TX_D0PAORK3588AJ2HDMI_TX0_D0P/EDP_TX0_D0P
79(J3)TYPEC0_USB20_VBUSDETIRK3588AM14TYPEC0_USB20_VBUSDET
80(J3)HDMI0_TX0N_PORT/EDP0 _TX_D0NAORK3588AJ1HDMI_TX0_D0N/EDP_TX0_D0N
81(J3)RTC_INT_LI/O1.8VRK3588L30SPI2_CS1_M2/I2C1_SCL_M1/UART0_RX_M1/GPI O0_B0_z
82(J3)GNDPI0V
83(J3)GPIO3_C7I/O3.3VRK3588AJ24CIF_D11/PCIE20X1_2_CLKREQN_M0/HDMI_TX0_ SCL_M2/I2C5_SCL_M0/SPI3_MOSI_M3/GPIO3_C7 _u
84(J3)HDMI0_TX1P_PORT/EDP0 _TX_D1PAORK3588AK3HDMI_TX0_D1P/EDP_TX0_D1P
85(J3)GPIO3_C0I/O3.3VRK3588Y29GMAC1_PPSTRIG/I2C3_SDA_M1/UART7_TX_M1/S PI1_MISO_M1/GPIO3_C0_d
86(J3)HDMI0_TX1N_PORT/EDP0 _TX_D1NAORK3588AK2HDMI_TX0_D1N/EDP_TX0_D1N
87(J3)BOOT_SARADC_IN0AI1.8VRK3588AM16SARADC_IN0_BOOT
88(J3)GNDPI0V
89(J3)SARADC_VIN1_KEY/RECO VERYAI1.8VRK3588AL16SARADC_IN1
90(J3)HDMI0_TX2P_PORT/EDP0 _TX_D2PAORK3588AL2HDMI_TX0_D2P/EDP_TX0_D2P
91(J3)SARADC_IN3AI1.8VRK3588AN17SARADC_IN3
92(J3)HDMI0_TX2N_PORT/EDP0 _TX_D2NAORK3588AL1HDMI_TX0_D2N/EDP_TX0_D2N
93(J3)SARADC_IN2AI1.8VRK3588AK16SARADC_IN2
94(J3)GNDPI0V
95(J3)SARADC_IN6AI1.8VRK3588AL17SARADC_IN6
96(J3)HDMI1_TX_SBDN/EDP1_T X_AUXNAI/ORK3588AP2HDMI_TX1_SBDN/EDP_TX1_AUXN
97(J3)SARADC_IN7AI1.8VRK3588AK17SARADC_IN7
98(J3)HDMI1_TX_SBDP/EDP1_T X_AUXPAI/ORK3588AN2HDMI_TX1_SBDP/EDP_TX1_AUXP
99(J3)SARADC_IN4AI1.8VRK3588AM17SARADC_IN4
100(J3)GNDPI0V

Table 2: J4 Connector Interface Pin Definition

PinNumberSignal NameSignal TypeIOVoltageMain ICIC Pin NumberIC Pin Name
1(J4)VCC4V0_SYSPI4.0V
2(J4)VCC4V0_SYSPI4.0V
3(J4)VCC4V0_SYSPI4.0V
4(J4)VCC4V0_SYSPI4.0V
5(J4)VCC4V0_SYSPI4.0V
6(J4)VCC4V0_SYSPI4.0V
7(J4)VCC4V0_SYSPI4.0V
8(J4)VCC4V0_SYSPI4.0V
9(J4)VCC4V0_SYSPI4.0V
10(J4)VCC4V0_SYSPI4.0V
11(J4)VCC4V0_SYSPI4.0V
12(J4)VCC4V0_SYSPI4.0V
13(J4)VCC4V0_SYSPI4.0V
14(J4)VCC4V0_SYSPI4.0V
15(J4)VCC4V0_SYSPI4.0V
16(J4)VCC4V0_SYSPI4.0V
17(J4)VCC4V0_SYSPI4.0V
18(J4)VCC4V0_SYSPI4.0V
19(J4)VCC4V0_SYSPI4.0V
20(J4)VCC4V0_SYSPI4.0V
21(J4)GNDPI0V
22(J4)VCC_1V8_S0PO1.8V
23(J4)PCIE30_PORT0_TX1PAORK3588C33PCIE30_PORT0_TX1P
24(J4)VCC_1V8_S0PO1.8V
25(J4)PCIE30_PORT0_TX1NAORK3588C34PCIE30_PORT0_TX1N
26(J4)VCC_3V3_S0PO3.3V
27(J4)GNDPI0V
28(J4)VCC_3V3_S0PO3.3V
29(J4)PCIE30_PORT0_RX1NAIRK3588F33PCIE30_PORT0_RX1N
30(J4)GNDPI0V
31(J4)PCIE30_PORT0_RX1PAIRK3588F32PCIE30_PORT0_RX1P
32(J4)PCIE30_PORT0_RX0NAIRK3588G34PCIE30_PORT0_RX0N
33(J4)GNDPI0V
34(J4)PCIE30_PORT0_RX0PAIRK3588G33PCIE30_PORT0_RX0P
35(J4)PMIC_EXT_EN_OUTOMAX 4V
36(J4)GNDPI0V
37(J4)GPIO1_A4I/O1.8VRK3588B25HDMI_TX1_SCL_M2/SPI2_MISO_M0/GPIO1_A4_d
38(J4)PCIE20_1_RXN/SATA30_1 _RXNAIRK3588J34PCIE20_1_RXN/SATA30_1_RXN
39(J4)GPIO1_A1I/O1.8VRK3588A25PCIE30X1_1_WAKEN_M2/DP1_HPDIN_M2/SATA1 _ACT_LED_M1/I2C2_SCL_M4/UART6_TX_M1/SPI 4_MOSI_M2/GPIO1_A1_d
40(J4)PCIE20_1_RXP/SATA30_1 _RXPAIRK3588J33PCIE20_1_RXP/SATA30_1_RXP
41(J4)GPIO1_B7I/O1.8VRK3588E27MIPI_CAMERA2_CLK_M0/SPDIF1_TX_M0/PCIE30 X2_PERSTN_M3/HDMI_RX_CEC_M2/SATA2_ACT_ LED_M1/I2C5_SDA_M3/UART1_RX_M1/PWM13_ M2/GPIO1_B7_u
42(J4)GNDPI0V
43(J4)GPIO1_A2I/O1.8VRK3588A26VOP_POST_EMPTY/I2C4_SDA_M3/UART6_RTSN_ M1/PWM0_M2/SPI4_CLK_M2/GPIO1_A2_d
44(J4)ETH1_REFCLKO_25MI/ORK3588AH27ETH1_REFCLKO_25M/MIPI_CAMERA1_CLK_M1/I2 C4_SCL_M0/GPIO3_A6_d
45(J4)GPIO1_A5I/O1.8VRK3588B26HDMI_TX0_HPD_M0/SPI2_MOSI_M0/GPIO1_A5_d
46(J4)GMAC1_RXD2I/ORK3588AD27GMAC1_RXD2/SDIO_D2_M1/I2S3_LRCK/AUDDSM _LP/FSPI_D2_M2/UART8_TX_M1/SPI4_CLK_M1/G PIO3_A2_u
47(J4)GPIO1_A3I/O1.8VRK3588A27HDMI_TX1_SDA_M2/I2C4_SCL_M3/UART6_CTSN _M1/PWM1_M2/SPI4_CS0_M2/GPIO1_A3_d
48(J4)GMAC1_RXDV_CRSI/ORK3588AH29GMAC1_RXDV_CRS/MIPI_CAMERA4_CLK_M1/UA RT2_TX_M2/PWM2_M1/GPIO3_B1_d
49(J4)GPIO1_B0I/O1.8VRK3588C27PDM1_SDI1_M1/PCIE30X4_CLKREQN_M3/SPI2_C S1_M0/GPIO1_B0_u
50(J4)GMAC1_RXCLKI/ORK3588AH30GMAC1_RXCLK/SDIO_CLK_M1/MIPI_CAMERA0_C LK_M1/FSPI_CLK_M2/I2C4_SDA_M0/UART8_CTS N_M1/GPIO3_A5_d
51(J4)GNDPI0V
52(J4)GMAC1_RXD3I/ORK3588AE27GMAC1_RXD3/SDIO_D3_M1/I2S3_SDO/AUDDSM_ RN/FSPI_D3_M2/UART8_RX_M1/SPI4_CS0_M1/G PIO3_A3_u
53(J4)PCIE30_PORT1_REFCLKP_ INAIRK3588A28PCIE30_PORT1_REF_CLKP
54(J4)GMAC1_RXD0I/ORK3588AG29GMAC1_RXD0/MIPI_CAMERA2_CLK_M1/PWM8_ M0/GPIO3_A7_u
55(J4)PCIE30_PORT1_REFCLKN _INAIRK3588B28PCIE30_PORT1_REF_CLKN
56(J4)GMAC1_RXD1I/ORK3588AG28GMAC1_RXD1/MIPI_CAMERA3_CLK_M1/PWM9_ M0/GPIO3_B0_u
57(J4)GNDPI0V
58(J4)GNDPI0V
59(J4)PCIE30_PORT1_TX3NAORK3588B29PCIE30_PORT1_TX1N
60(J4)GPIO1_C6I/O1.8VRK3588D29PDM0_CLK0_M0/I2C4_SDA_M4/PWM15_IR_M2/G PIO1_C6_d
61(J4)PCIE30_PORT1_TX3PAORK3588C29PCIE30_PORT1_TX1P
62(J4)GPIO1_C5I/O1.8VRK3588D30I2S0_LRCK/I2C2_SCL_M3/UART4_RTSN/GPIO1_C 5_d
63(J4)GNDPI0V
64(J4)GPIO1_C3I/O1.8VRK3588E31I2S0_SCLK/I2C6_SCL_M1/UART3_CTSN/PWM7_I R_M2/SPI4_CS0_M0/GPIO1_C3_d
65(J4)PCIE30_PORT1_TX2NAORK3588A30PCIE30_PORT1_TX0N
66(J4)GPIO1_C4I/O1.8VRK3588E30PDM0_CLK1_M0/I2C2_SDA_M3/PWM11_IR_M2/S PI4_CS1_M0/GPIO1_C4_d
67(J4)PCIE30_PORT1_TX2PAORK3588B30PCIE30_PORT1_TX0P
68(J4)GPIO1_C7I/O1.8VRK3588E29I2S0_SDO0/I2C4_SCL_M4/UART4_CTSN/GPIO1_C 7_d
69(J4)GNDPI0V
70(J4)GNDPI0V
71(J4)PCIE20_2_TXNAORK3588H29PCIE20_2_TXN/SATA30_2_TXN/USB30_2_SSTXN
72(J4)PCIE20_2_RXPAIRK3588J31PCIE20_2_RXP/SATA30_2_RXP/USB30_2_SSRXP
73(J4)PCIE20_2_TXPAORK3588H30PCIE20_2_TXP/SATA30_2_TXP/USB30_2_SSTXP
74(J4)PCIE20_2_RXNAIRK3588J30PCIE20_2_RXN/SATA30_2_RXN/USB30_2_SSRXN
75(J4)GNDPI0V
76(J4)GNDPI0V
77(J4)PCIE20_0_REFCLKPAI/ORK3588L32PCIE20_0_REFCLKP
78(J4)GPIO4_A0I/O3.3VRK3588AK30CIF_D0/BT1120_D0/I2S1_MCLK_M0/PCIE30X1_1_ CLKREQN_M1/UART9_RTSN_M1/SPI0_MISO_M1/ GPIO4_A0_d
79(J4)PCIE20_0_REFCLKNAI/ORK3588L33PCIE20_0_REFCLKN
80(J4)GPIO4_A1I/O3.3VRK3588AL30CIF_D1/BT1120_D1/I2S1_SCLK_M0/PCIE30X1_1_ WAKEN_M1/UART9_CTSN_M1/SPI0_MOSI_M1/GP IO4_A1_d
81(J4)GNDPI0V
82(J4)GPIO4_A5I/O3.3VRK3588AK27CIF_D5/BT1120_D5/I2S1_SDI0_M0/PCIE30X1_0_P ERSTN_M1/I2C3_SDA_M2/UART3_TX_M2/SPI2_M OSI_M1/GPIO4_A5_d
83(J4)GPIO2_B4I/O1.8VRK3588AB31GMAC0_PTP_REFCLK/FSPI_CS0N_M1/HDMI_TX1 _SDA_M0/I2C4_SDA_M1/UART7_RX_M0/GPIO2_B 4_u
84(J4)PWRON_LI
85(J4)GPIO2_A6I/O1.8VRK3588AC32GMAC0_RXD2/SDIO_D0_M0/FSPI_D0_M1/UART6 _RX_M0/GPIO2_A6_u
86(J4)RESET_LIRK3588M31NPOR
87(J4)GPIO2_A7I/O1.8VRK3588AC31GMAC0_RXD3/SDIO_D1_M0/FSPI_D1_M1/UART6 _TX_M0/GPIO2_A7_u
88(J4)GPIO4_A3I/O3.3VRK3588AL29CIF_D3/BT1120_D3/PCIE30X1_0_CLKREQN_M1/U ART0_TX_M2/GPIO4_A3_d
89(J4)GPIO2_C1I/O1.8VRK3588AD32GMAC0_RXD0/I2C2_SCL_M1/UART1_CTSN_M0/S PI1_MISO_M0/GPIO2_C1_d
90(J4)GPIO4_A2I/O3.3VRK3588AM29CIF_D2/BT1120_D2/I2S1_LRCK_M0/PCIE30X1_1_ PERSTN_M1/SPI0_CLK_M1/GPIO4_A2_d
91(J4)GPIO2_C5I/O1.8VRK3588AE30CLK32K_OUT1/GPIO2_C5_d
92(J4)GPIO4_A4I/O3.3VRK3588AL28CIF_D4/BT1120_D4/PCIE30X1_0_WAKEN_M1/I2C 3_SCL_M2/UART0_RX_M2/SPI2_MISO_M1/GPIO4 _A4_d
93(J4)GPIO2_C3I/O1.8VRK3588AD30ETH0_REFCLKO_25M/I2S2_SDI_M0/I2C6_SCL_M 2/SPI1_CS0_M0/GPIO2_C3_d
94(J4)GPIO4_A6I/O3.3VRK3588AL27CIF_D6/BT1120_D6/I2S1_SDI1_M0/PCIE30X2_CL KREQN_M1/I2C5_SCL_M2/UART3_RX_M2/SPI2_C LK_M1/GPIO4_A6_d
95(J4)GPIO2_B5I/O1.8VRK3588AB30GMAC0_PPSTRIG/FSPI_CS1N_M1/HDMI_TX1_SC L_M0/I2C4_SCL_M1/UART7_TX_M0/GPIO2_B5_u
96(J4)GPIO4_A7I/O3.3VRK3588AM27CIF_D7/BT1120_D7/I2S1_SDI2_M0/PCIE30X2_WA KEN_M1/I2C5_SDA_M2/SPI2_CS0_M1/GPIO4_A7 _d
97(J4)GPIO3_B2I/O3.3VRK3588AE28GMAC1_TXER/I2S2_SDI_M1/UART2_RX_M2/PWM 3_IR_M1/GPIO3_B2_d
98(J4)GPIO4_B0I/O3.3VRK3588AK26CIF_CLKIN/BT1120_CLKOUT/I2S1_SDI3_M0/PCIE3 0X2_PERSTN_M1/I2C6_SDA_M3/UART8_TX_M0/ SPI2_CS1_M1/GPIO4_B0_d
99(J4)GPIO4_C5I/O3.3VRK3588AB33GMAC0_MDIO/I2C0_SCL_M1/UART9_CTSN_M0/P WM6_M2/SPI3_MOSI_M0/GPIO4_C5_d
100(J4)GNDPI0V

Table 3: J5 Connector Interface Pin Definition

PinNumberSignal NameSignal TypeIOVoltageMain ICIC Pin NumberIC Pin Name
1(J5)GNDPI0V
2(J5)GNDPI0V
3(J5)MIPI_DPHY0_RX_D1PAIRK3588AN30MIPI_DPHY0_RX_D1P/MIPI_CPHY0_RX_TRIO1_A
4(J5)MIPI_DPHY0_RX_D2PAIRK3588AN33MIPI_DPHY0_RX_D2P/MIPI_CPHY0_RX_TRIO2_B
5(J5)MIPI_DPHY0_RX_D1NAIRK3588AP30MIPI_DPHY0_RX_D1N/MIPI_CPHY0_RX_TRIO0_C
6(J5)MIPI_DPHY0_RX_D2NAIRK3588AP32MIPI_DPHY0_RX_D2N/MIPI_CPHY0_RX_Trio2_A
7(J5)GNDPI0V
8(J5)GNDPI0V
9(J5)MIPI_DPHY0_RX_D0PAIRK3588AN29MIPI_DPHY0_RX_D0P/MIPI_CPHY0_RX_TRIO0_B
10(J5)MIPI_DPHY0_RX_CLKPAIRK3588AN32MIPI_DPHY0_RX_CLKP/MIPI_CPHY0_RX_TRIO1_ C
11(J5)MIPI_DPHY0_RX_D0NAIRK3588AP29MIPI_DPHY0_RX_D0N/MIPI_CPHY0_RX_TRIO0_A
12(J5)MIPI_DPHY0_RX_CLKNAIRK3588AP31MIPI_DPHY0_RX_CLKN/MIPI_CPHY0_RX_TRIO1_ B
13(J5)GNDPI0V
14(J5)GNDPI0V
15(J5)MIPI_DPHY0_TX_D2NAORK3588AP27MIPI_DPHY0_TX_D2N/MIPI_CPHY0_TX_TRIO2_A
16(J5)MIPI_DPHY0_TX_D3PAORK3588AN28MIPI_DPHY0_TX_D3P/NO_USE
17(J5)MIPI_DPHY0_TX_D2PAORK3588AN27MIPI_DPHY0_TX_D2P/MIPI_CPHY0_TX_TRIO2_B
18(J5)MIPI_DPHY0_TX_D3NAORK3588AP28MIPI_DPHY0_TX_D3N/MIPI_CPHY0_TX_TRIO2_C
19(J5)GNDPI0V
20(J5)GNDPI0V
21(J5)MIPI_DPHY0_TX_CLKPAORK3588AN26MIPI_DPHY0_TX_CLKP/MIPI_CPHY0_TX_TRIO1_C
22(J5)GPIO4_B4GPIO3.3VRK3588AL26CIF_CLKOUT/BT1120_D10/I2S1_SDO3_M0/PCIE30 X4_CLKREQN_M1/DP0_HPDIN_M0/SPDIF0_TX_M 1/UART9_TX_M1/PWM11_IR_M1/GPIO4_B4_u
23(J5)MIPI_DPHY0_TX_CLKNAORK3588AP26MIPI_DPHY0_TX_CLKN/MIPI_CPHY0_TX_TRIO1_ B
24(J5)GPIO4_B2GPIO3.3VRK3588AK25CIF_HREF/BT1120_D8/I2S1_SDO1_M0/PCIE30X1_ 1_BUTTON_RSTN/I2C7_SCL_M3/UART8_RTSN_M 0/PWM14_M1/SPI0_CS0_M1/CAN1_RX_M1/GPIO4 _B2_u
25(J5)GNDPI0V
26(J5)GPIO4_B3GPIO3.3VRK3588AM25CIF_VSYNC/BT1120_D9/I2S1_SDO2_M0/PCIE20X1 2_BUTTON_RSTN/I2C7_SDA_M3/UART8_CTSN M0/PWM15_IR_M1/CAN1_TX_M1/GPIO4_B3_u
27(J5)MIPI_DPHY0_TX_D1PAORK3588AN25MIPI_DPHY0_TX_D1P/MIPI_CPHY0_TX_TRIO1_A
28(J5)GPIO4_B1GPIO3.3VRK3588AL24MIPI_CAMERA0_CLK_M0/SPDIF1_TX_M1/I2S1_S DO0_M0/PCIE30X1_0_BUTTON_RSTN/SATA2_AC T_LED_M0/I2C6_SCL_M3/UART8_RX_M0/SPI0_C S1_M1/GPIO4_B1_u
29(J5)MIPI_DPHY0_TX_D1NAORK3588AP25MIPI_DPHY0_TX_D1N/MIPI_CPHY0_TX_TRIO0_C
30(J5)GPIO4_C1GPIO3.3VRK3588AK24BT1120_D15/SPDIF1_TX_M2/PCIE20X1_2_PERST N_M1/HDMI_TX0_CEC_M0/I2C8_SDA_M3/PWM6_ M1/SPI3_CS1_M1/GPIO4_C1_d
31(J5)GNDPI0V
32(J5)GNDPI0V
33(J5)MIPI_DPHY0_TX_D0PAORK3588AN24MIPI_DPHY0_TX_D0P/MIPI_CPHY0_TX_TRIO0_B
34(J5)MIPI_DPHY1_TX_D3NAORK3588AP22MIPI_DPHY1_TX_D3N/MIPI_CPHY1_TX_TRIO2_C
35(J5)MIPI_DPHY0_TX_D0NAORK3588AP24MIPI_DPHY0_TX_D0N/MIPI_CPHY0_TX_TRIO0_A
36(J5)MIPI_DPHY1_TX_D3PAORK3588AN22MIPI_DPHY1_TX_D3P/NO_USE
37(J5)GNDPI0V
38(J5)GNDPI0V
39(J5)MIPI_DPHY1_TX_D2PAORK3588AN21MIPI_DPHY1_TX_D2P/MIPI_CPHY1_TX_TRIO2_B
40(J5)MIPI_DPHY1_TX_CLKNAORK3588AP20MIPI_DPHY1_TX_CLKN/MIPI_CPHY1_TX_TRIO1_ B
41(J5)MIPI_DPHY1_TX_D2NAORK3588AP21MIPI_DPHY1_TX_D2N/MIPI_CPHY1_TX_TRIO2_A
42(J5)MIPI_DPHY1_TX_CLKPAORK3588AN20MIPI_DPHY1_TX_CLKP/MIPI_CPHY1_TX_TRIO1_C
43(J5)GNDPI0V
44(J5)GNDPI0V
45(J5)MIPI_DPHY1_TX_D1NAORK3588AP19MIPI_DPHY1_TX_D1N/MIPI_CPHY1_TX_TRIO0_C
46(J5)MIPI_DPHY1_TX_D0NAORK3588AP18MIPI_DPHY1_TX_D0N/MIPI_CPHY1_TX_TRIO0_A
47(J5)MIPI_DPHY1_TX_D1PAORK3588AN19MIPI_DPHY1_TX_D1P/MIPI_CPHY1_TX_TRIO1_A
48(J5)MIPI_DPHY1_TX_D0PAORK3588AN18MIPI_DPHY1_TX_D0P/MIPI_CPHY1_TX_TRIO0_B
49(J5)GNDPI0V
50(J5)GNDPI0V
51(J5)TYPEC0_SSTX2P/DP0_TX 3PAORK3588AP16TYPEC0_SSTX2P/DP0_TX3P
52(J5)TYPEC0_SSRX2P/DP0_TX 2PAI/ORK3588AN15TYPEC0_SSRX2P/DP0_TX2P
53(J5)TYPEC0_SSTX2N/DP0_TX 3NAORK3588AN16TYPEC0_SSTX2N/DP0_TX3N
54(J5)TYPEC0_SSRX2N/DP0_TX 2NAI/ORK3588AP15TYPEC0_SSRX2N/DP0_TX2N
55(J5)GNDPI0V
56(J5)GNDPI0V
57(J5)TYPEC1_SSRX2P/DP1_TX 2PAI/ORK3588AN10TYPEC1_SSRX2P/DP1_TX2P
58(J5)TYPEC0_SSTX1N/DP0_TX 1NAORK3588AN14TYPEC0_SSTX1N/DP0_TX1N
59(J5)TYPEC1_SSRX2N/DP1_TX 2NAI/ORK3588AP10TYPEC1_SSRX2N/DP1_TX2N
60(J5)TYPEC0_SSTX1P/DP0_TX 1PAORK3588AP14TYPEC0_SSTX1P/DP0_TX1P
61(J5)GNDPI0V
62(J5)GNDPI0V
63(J5)TYPEC1_SSTX1P/DP1_TX 1PAORK3588AP9TYPEC1_SSTX1P/DP1_TX1P
64(J5)TYPEC0_SSRX1P/DP0_TX 0PAI/ORK3588AN13TYPEC0_SSRX1P/DP0_TX0P
65(J5)TYPEC1_SSTX1N/DP1_TX 1NAORK3588AN9TYPEC1_SSTX1N/DP1_TX1N
66(J5)TYPEC0_SSRX1N/DP0_TX 0NAI/ORK3588AP13TYPEC0_SSRX1N/DP0_TX0N
67(J5)GNDPI0V
68(J5)GNDPI0V
69(J5)TYPEC1_SSRX1N/DP1_TX 0NAI/ORK3588AP8TYPEC1_SSRX1N/DP1_TX0N
70(J5)TYPEC1_SSTX2P/DP1_TX 3PAORK3588AP11TYPEC1_SSTX2P/DP1_TX3P
71(J5)TYPEC1_SSRX1P/DP1_TX 0PAI/ORK3588AN8TYPEC1_SSRX1P/DP1_TX0P
72(J5)TYPEC1_SSTX2N/DP1_TX 3NAORK3588AN11TYPEC1_SSTX2N/DP1_TX3N
73(J5)GNDPI0V
74(J5)GNDPI0V
75(J5)HDMI1_TX2P_PORT/EDP1 _TX_D2PAORK3588AN6HDMI_TX1_D2P/EDP_TX1_D2P
76(J5)TYPEC1_SBU2/DP1_AUXNAI/ORK3588AM10TYPEC1_SBU2/DP1_AUXN
77(J5)HDMI1_TX2N_PORT/EDP1 _TX_D2NAORK3588AP6HDMI_TX1_D2N/EDP_TX1_D2N
78(J5)TYPEC1_SBU1/DP1_AUXPAI/ORK3588AL10TYPEC1_SBU1/DP1_AUXP
79(J5)GNDPI0V
80(J5)GNDPI0V
81(J5)HDMI1_TX1P_PORT/EDP1 _TX_D1PAORK3588AM5HDMI_TX1_D1P/EDP_TX1_D1P
82(J5)TYPEC1_OTG_DMAI/ORK3588AL9TYPEC1_USB20_OTG_DM
83(J5)HDMI1_TX1N_PORT/EDP1 _TX_D1NAORK3588AN5HDMI_TX1_D1N/EDP_TX1_D1N
84(J5)TYPEC1_OTG_DPAI/ORK3588AK9TYPEC1_USB20_OTG_DP
85(J5)GNDPI0V
86(J5)GNDPI0V
87(J5)HDMI1_TX0P_PORT/EDP1 _TX_D0PAORK3588AN4HDMI_TX1_D0P/EDP_TX1_D0P
88(J5)TYPEC0_SBU2/DP0_AUXNAI/ORK3588AM15TYPEC0_SBU2/DP0_AUXN
89(J5)HDMI1_TX0N_PORT/EDP1 _TX_D0NAORK3588AP4HDMI_TX1_D0N/EDP_TX1_D0N
90(J5)TYPEC0_SBU1/DP0_AUXPAI/ORK3588AL15TYPEC0_SBU1/DP0_AUXP
91(J5)GNDPI0V
92(J5)GNDPI0V
93(J5)HDMI1_TX3P_PORT/EDP1 _TX_D3PAORK3588AM3HDMI_TX1_D3P/EDP_TX1_D3P
94(J5)TYPEC0_OTG_DPAI/ORK3588AL12TYPEC0_USB20_OTG_DP
95(J5)HDMI1_TX3N_PORT/EDP1 _TX_D3NAORK3588AN3HDMI_TX1_D3N/EDP_TX1_D3N
96(J5)TYPEC0_OTG_DMAI/ORK3588AM12TYPEC0_USB20_OTG_DM
97(J5)GNDPI0V
98(J5)GNDPI0V
99(J5)GPIO4_B5GPIO3.3VRK3588AJ26BT1120_D11/PCIE30X4_WAKEN_M1/HDMI_RX_C EC_M0/SATA1_ACT_LED_M0/UART9_RX_M1/PW M12_M1/SPI3_MISO_M1/GPIO4_B5_d
100(J5)GPIO4_C0GPIO3.3VRK3588AJ25BT1120_D14/PCIE20X1_2_WAKEN_M1/HDMI_TX0 _SDA_M0/I2C8_SCL_M3/SPI3_CS0_M1/GPIO4_C0 _u

Table 4: J6 Connector Interface Pin Definition

PinNumberSignal NameSignal TypeIOVoltageMain ICIC Pin NumberIC Pin Name
1(J6)GNDPI0V
2(J6)GNDPI0V
3(J6)PCIE30_PORT0_REFCLKN _INAIRK3588E34PCIE30_PORT0_REF_CLKN
4(J6)PCIE20_1_REFCLKPAI/ORK3588H32PCIE20_1_REFCLKP
5(J6)PCIE30_PORT0_REFCLKP_ INAIRK3588E33PCIE30_PORT0_REF_CLKP
6(J6)PCIE20_1_REFCLKNAI/ORK3588H33PCIE20_1_REFCLKN
7(J6)GNDPI0V
8(J6)GNDPI0V
9(J6)PCIE30_PORT0_TX0PAORK3588D32PCIE30_PORT0_TX0P
10(J6)PCIE20_1_TXN/SATA30_1 _TXNAORK3588K34PCIE20_1_TXN/SATA30_1_TXN
11(J6)PCIE30_PORT0_TX0NAORK3588D33PCIE30_PORT0_TX0N
12(J6)PCIE20_1_TXP/SATA30_1 _TXPAORK3588K33PCIE20_1_TXP/SATA30_1_TXP
13(J6)GNDPI0V
14(J6)GNDPI0V
15(J6)PCIE30_PORT1_RX3NAIRK3588B31PCIE30_PORT1_RX1N
16(J6)PCIE20_0_TXP/SATA30_0 _TXPAORK3588M34PCIE20_0_TXP/SATA30_0_TXP
17(J6)PCIE30_PORT1_RX3PAIRK3588C31PCIE30_PORT1_RX1P
18(J6)PCIE20_0_TXN/SATA30_0 _TXNAORK3588M33PCIE20_0_TXN/SATA30_0_TXN
19(J6)GNDPI0V
20(J6)GNDPI0V
21(J6)PCIE30_PORT1_RX2PAIRK3588B32PCIE30_PORT1_RX0P
22(J6)PCIE20_0_RXN/SATA30_0 _RXNAIRK3588N34PCIE20_0_RXN/SATA30_0_RXN
23(J6)PCIE30_PORT1_RX2NAIRK3588A32PCIE30_PORT1_RX0N
24(J6)PCIE20_0_RXP/SATA30_0 _RXPAIRK3588N33PCIE20_0_RXP/SATA30_0_RXP
25(J6)GNDPI0V
26(J6)GNDPI0V
27(J6)PCIE20_2_REFCLKNAI/ORK3588G30PCIE20_2_REFCLKN
28(J6)GPIO0_C2I/O1.8VRK3588T32PMIC_SLEEP4/GPIO0_C2_d
29(J6)PCIE20_2_REFCLKPAI/ORK3588G31PCIE20_2_REFCLKP
30(J6)GPIO0_D3I/O1.8VRK3588U33LITCPU_AVS/SPI3_CLK_M2/GPIO0_D3_u
31(J6)GNDPI0V
32(J6)GPIO0_C0I/O1.8VRK3588T31PDM0_CLK0_M1/PWM1_M0/I2C2_SDA_M0/CAN0 RX_M0/SPI0_MOSI_M0/PCIE30X1_0_CLKREQN M0/GPIO0_C0_d
33(J6)GMAC1_MDCI/ORK3588Y31GMAC1_MDC/MIPI_TE0/I2C8_SCL_M4/UART7_RT SN_M1/PWM14_M0/SPI1_CS0_M1/GPIO3_C2_d
34(J6)I2C6_SDA_M0I/O1.8VRK3588V31I2S1_SDI2_M1/PDM0_SDI0_M1/I2C6_SDA_M0/U ART1_RTSN_M2/PWM6_M0/SPI0_MISO_M0/PCIE 30X4_WAKEN_M0/GPIO0_C7_d
35(J6)GMAC1_RSTN_LI/ORK3588AA28GMAC1_PTP_REF_CLK/HDMI_TX1_HPD_M1/I2C3 _SCL_M1/SPI1_MOSI_M1/GPIO3_B7_d
36(J6)I2C6_SCL_M0I/O1.8VRK3588W31I2S1_SDI3_M1/PDM0_SDI1_M1/I2C6_SCL_M0/UA RT1_CTSN_M2/PWM7_IR_M0/SPI3_MISO_M2/PCI E30X4_PERSTN_M0/GPIO0_D0_d
37(J6)GNDPI0V
38(J6)GNDPI0V
39(J6)GPIO4_C4I/O1.8VRK3588AB34GMAC0_MDC/I2C7_SDA_M1/UART9_RTSN_M0/P WM5_M2/SPI3_MISO_M0/GPIO4_C4_d
40(J6)GMAC1_MDIOI/ORK3588Y30GMAC1_MDIO/MIPI_TE1/I2C8_SDA_M4/UART7_C TSN_M1/PWM15_IR_M0/SPI1_CS1_M1/GPIO3_C3 _d
41(J6)GPIO2_B2I/O1.8VRK3588AC34GMAC0_TXD3/SDIO_CMD_M0/I2C3_SCL_M3/GPI O2_B2_u
42(J6)GMAC1_TXD2I/ORK3588AA29GMAC1_TXD2/SDIO_D0_M1/I2S3_MCLK/FSPI_D0 _M2/I2C6_SDA_M4/PWM10_M0/SPI4_MISO_M1/ GPIO3_A0_u
43(J6)GPIO2_B1I/O1.8VRK3588AC33GMAC0_TXD2/SDIO_D3_M0/FSPI_D3_M1/I2C8_S DA_M1/UART6_CTSN_M0/GPIO2_B1_u
44(J6)GMAC1_TXD3I/ORK3588AA30GMAC1_TXD3/SDIO_D1_M1/I2S3_SCLK/AUDDSM _LN/FSPI_D1_M2/I2C6_SCL_M4/PWM11_IR_M0/S PI4_MOSI_M1/GPIO3_A1_u
45(J6)GPIO2_C0I/O1.8VRK3588AE34GMAC0_TXEN/I2S2_LRCK_M0/I2C2_SDA_M1/UAR T1_RTSN_M0/SPI1_CLK_M0/GPIO2_C0_d
46(J6)GMAC1_TXD0I/ORK3588AC28GMAC1_TXD0/I2S2_SDO_M1/UART2_RTSN/GPIO3 _B3_u
47(J6)GPIO2_B6I/O1.8VRK3588AD33GMAC0_TXD0/I2S2_MCLK_M0/I2C5_SCL_M4/UA RT1_RX_M0/GPIO2_B6_d
48(J6)GMAC1_TXD1I/ORK3588AC29GMAC1_TXD1/I2S2_MCLK_M1/UART2_CTSN/GPI O3_B4_u
49(J6)GPIO2_B7I/O1.8VRK3588AD34GMAC0_TXD1/I2S2_SCLK_M0/I2C5_SDA_M4/UAR T1_TX_M0/GPIO2_B7_d
50(J6)GMAC1_TXENI/ORK3588AD29GMAC1_TXEN/I2S2_SCLK_M1/CAN1_RX_M0/UAR T3_TX_M1/PWM12_M0/GPIO3_B5_u
51(J6)GPIO2_B3I/O1.8VRK3588AE33GMAC0_TXCLK/SDIO_CLK_M0/FSPI_CLK_M1/I2C 3_SDA_M3/GPIO2_B3_d
52(J6)GMAC1_MCLKINOUTI/ORK3588AE29GMAC1_MCLKINOUT/I2S2_LRCK_M1/CAN1_TX_ M0/UART3_RX_M1/PWM13_M0/GPIO3_B6_d
53(J6)GPIO4_C6I/O1.8VRK3588AF33GMAC0_TXER/I2C0_SDA_M1/UART7_CTSN_M0/P WM7_IR_M3/SPI3_CLK_M0/GPIO4_C6_d
54(J6)GMAC1_TXCLKI/ORK3588AD28GMAC1_TXCLK/SDIO_CMD_M1/I2S3_SDI/AUDDS M_RP/UART8_RTSN_M1/SPI4_CS1_M1/GPIO3_A4 _d
55(J6)GPIO4_C3I/O1.8VRK3588AF34GMAC0_MCLKINOUT/I2S2_SDO_M0/I2C7_SCL_M 1/PWM4_M1/SPI3_CS1_M0/GPIO4_C3_d
56(J6)GNDPI0V
57(J6)GNDPI0V
58(J6)MIPI_CSI1_RX_D0NAIRK3588AG32MIPI_CSI1_D0N
59(J6)MIPI_CSI0_RX_D0PAIRK3588AG33MIPI_CSI0_D0P
60(J6)MIPI_CSI1_RX_D0PAIRK3588AG31MIPI_CSI1_D0P
61(J6)MIPI_CSI0_RX_D0NAIRK3588AG34MIPI_CSI0_D0N
62(J6)GNDPI0V
63(J6)GNDPI0V
64(J6)MIPI_CSI1_RX_D1NAIRK3588AH32MIPI_CSI1_D1N
65(J6)MIPI_CSI0_RX_D1NAIRK3588AH34MIPI_CSI0_D1N
66(J6)MIPI_CSI1_RX_D1PAIRK3588AH31MIPI_CSI1_D1P
67(J6)MIPI_CSI0_RX_D1PAIRK3588AH33MIPI_CSI0_D1P
68(J6)GNDPI0V
69(J6)GNDPI0V
70(J6)MIPI_CSI1_RX_CLK0NAIRK3588AJ32MIPI_CSI1_CLK0N
71(J6)MIPI_CSI0_RX_CLK0PAIRK3588AJ33MIPI_CSI0_CLK0P
72(J6)MIPI_CSI1_RX_CLK0PAIRK3588AJ31MIPI_CSI1_CLK0P
73(J6)MIPI_CSI0_RX_CLK0NAIRK3588AJ34MIPI_CSI0_CLK0N
74(J6)GNDPI0V
75(J6)GNDPI0V
76(J6)MIPI_CSI1_RX_D2NAIRK3588AK32MIPI_CSI1_D2N
77(J6)MIPI_CSI0_RX_D2PAIRK3588AK33MIPI_CSI0_D2P
78(J6)MIPI_CSI1_RX_D2PAIRK3588AK31MIPI_CSI1_D2P
79(J6)MIPI_CSI0_RX_D2NAIRK3588AK34MIPI_CSI0_D2N
80(J6)GNDPI0V
81(J6)GNDPI0V
82(J6)MIPI_CSI1_RX_D3NAIRK3588AL32MIPI_CSI1_D3N
83(J6)MIPI_CSI0_RX_D3NAIRK3588AL34MIPI_CSI0_D3N
84(J6)MIPI_CSI1_RX_D3PAIRK3588AL31MIPI_CSI1_D3P
85(J6)MIPI_CSI0_RX_D3PAIRK3588AL33MIPI_CSI0_D3P
86(J6)GNDPI0V
87(J6)GNDPI0V
88(J6)MIPI_CSI1_RX_CLK1NAIRK3588AM32MIPI_CSI1_CLK1N
89(J6)MIPI_CSI0_RX_CLK1PAIRK3588AM33MIPI_CSI0_CLK1P
90(J6)MIPI_CSI1_RX_CLK1PAIRK3588AM31MIPI_CSI1_CLK1P
91(J6)MIPI_CSI0_RX_CLK1NAIRK3588AM34MIPI_CSI0_CLK1N
92(J6)GNDPI0V
93(J6)GNDPI0V
94(J6)GPIO2_B0I/O1.8VRK3588AE32GMAC0_RXCLK/SDIO_D2_M0/FSPI_D2_M1/I2C8_ SCL_M1/UART6_RTSN_M0/GPIO2_B0_u
95(J6)MIPI_DPHY0_RX_D3NAIRK3588AP33MIPI_DPHY0_RX_D3N/MIPI_CPHY0_RX_TRIO2_C
96(J6)GPIO4_C2I/O1.8VRK3588AE31GMAC0_RXDV_CRS/UART7_RTSN_M0/PWM2_M2 /SPI3_CS0_M0/GPIO4_C2_d
97(J6)MIPI_DPHY0_RX_D3PAIRK3588AN34MIPI_DPHY0_RX_D3P/NO_USE
98(J6)GPIO2_C2I/O1.8VRK3588AD31GMAC0_RXD1/I2C6_SDA_M2/UART9_TX_M0/SPI1 _MOSI_M0/GPIO2_C2_d
99(J6)GNDPI0V
100(J6)GPIO2_C4I/O1.8VRK3588AC30GMAC0_PPSCLK/TEST_CLKOUT_M1/HDMI_TX1_ CEC_M0/UART9_RX_M0/SPI1_CS1_M0/GPIO2_C4 _d

5 Connecting Main IC RK3588 To Each Device​

The main ic RK3588 is connected to 2 IC LPDDR4x, eMMC, PMICs, and board-to-board connector. The connection between main ic RK3588 and each devices on the SoM is shown below.

5.1 Connection Main Ic RK3588 With 2 IC LPDDR4x​

The connection between main ic RK3588 and DDR4X IC1 and IC2 is shown in table 5 and table 6.

Table 5: Relationship between main ic RK3588 with DDR4X ic1

Net NameRK3588 Pin NumberRK3588 Pin NameDDR4X PinNumber IC1DDR4X Pin Name IC1
DDR_CH0_A0_AT7DDR_CH0_A0_AH2CA0_A
DDR_CH0_A0_BM8DDR_CH0_A0_BR2CA0_B
DDR_CH0_A1_AT8DDR_CH0_A1_AJ2CA1_A
DDR_CH0_A1_BM5DDR_CH0_A1_BP2CA1_B
DDR_CH0_A2_AP4DDR_CH0_A2_AH9CA2_A
DDR_CH0_A2_BN5DDR_CH0_A2_BR9CA2_B
DDR_CH0_A3_AP5DDR_CH0_A3_AH10CA3_A
DDR_CH0_A3_BN4DDR_CH0_A3_BR10CA3_B
DDR_CH0_A4_AR1DDR_CH0_A4_AH11CA4_A
DDR_CH0_A4_BK1DDR_CH0_A4_BR11CA4_B
DDR_CH0_A5_AP2DDR_CH0_A5_AJ11CA5_A
DDR_CH0_A5_BL2DDR_CH0_A5_BP11CA5_B
DDR_CH0_CLKN_AN1DDR_CH0_CKB_AJ9CK_C_A
DDR_CH0_CLKN_BM1DDR_CH0_CKB_BP9CK_C_B
DDR_CH0_CLKP_AN2DDR_CH0_CK_AJ8CK_T_A
DDR_CH0_CLKP_BM2DDR_CH0_CK_BP8CK_T_B
DDR_CH0_DM0_AY4DDR_CH0_DM0_AC3DMI0_A
DDR_CH0_DM0_BG4DDR_CH0_DM0_BY3DMI0_B
DDR_CH0_DM1_AAB4DDR_CH0_DM1_AC10DMI1_A
DDR_CH0_DM1_BE4DDR_CH0_DM1_BY10DMI1_B
DDR_CH0_DQ0_AU1DDR_CH0_DQ0_AB2DQ0_A
DDR_CH0_DQ0_BH1DDR_CH0_DQ0_BAA2DQ0_B
DDR_CH0_DQ1_AT2DDR_CH0_DQ1_AC2DQ1_A
DDR_CH0_DQ1_BJ2DDR_CH0_DQ1_BY2DQ1_B
DDR_CH0_DQ10_AAC1DDR_CH0_DQ10_AE11DQ10_A
DDR_CH0_DQ10_BC2DDR_CH0_DQ10_BV11DQ10_B
DDR_CH0_DQ11_AAC2DDR_CH0_DQ11_AF11DQ11_A
DDR_CH0_DQ11_BB1DDR_CH0_DQ11_BU11DQ11_B
DDR_CH0_DQ12_AY1DDR_CH0_DQ12_AF9DQ12_A
DDR_CH0_DQ12_BF2DDR_CH0_DQ12_BU9DQ12_B
DDR_CH0_DQ13_AY2DDR_CH0_DQ13_AE9DQ13_A
DDR_CH0_DQ13_BE1DDR_CH0_DQ13_BV9DQ13_B
DDR_CH0_DQ14_AAA1DDR_CH0_DQ14_AC9DQ14_A
DDR_CH0_DQ14_BE2DDR_CH0_DQ14_BY9DQ14_B
DDR_CH0_DQ15_AAA2DDR_CH0_DQ15_AB9DQ15_A
DDR_CH0_DQ15_BD1DDR_CH0_DQ15_BAA9DQ15_B
DDR_CH0_DQ2_AT1DDR_CH0_DQ2_AE2DQ2_A
DDR_CH0_DQ2_BJ1DDR_CH0_DQ2_BV2DQ2_B
DDR_CH0_DQ3_AR2DDR_CH0_DQ3_AF2DQ3_A
DDR_CH0_DQ3_BK2DDR_CH0_DQ3_BU2DQ3_B
DDR_CH0_DQ4_AW1DDR_CH0_DQ4_AF4DQ4_A
DDR_CH0_DQ4_BF1DDR_CH0_DQ4_BU4DQ4_B
DDR_CH0_DQ5_AV2DDR_CH0_DQ5_AE4DQ5_A
DDR_CH0_DQ5_BG2DDR_CH0_DQ5_BV4DQ5_B
DDR_CH0_DQ6_AV1DDR_CH0_DQ6_AC4DQ6_A
DDR_CH0_DQ6_BG1DDR_CH0_DQ6_BY4DQ6_B
DDR_CH0_DQ7_AU2DDR_CH0_DQ7_AB4DQ7_A
DDR_CH0_DQ7_BH2DDR_CH0_DQ7_BAA4DQ7_B
DDR_CH0_DQ8_AAB2DDR_CH0_DQ8_AB11DQ8_A
DDR_CH0_DQ8_BD2DDR_CH0_DQ8_BAA11DQ8_B
DDR_CH0_DQ9_AAB1DDR_CH0_DQ9_AC11DQ9_A
DDR_CH0_DQ9_BC1DDR_CH0_DQ9_BY11DQ9_B
DDR_CH0_DQS0N_AU4DDR_CH0_DQS0N_AE3DQS0_C_A
DDR_CH0_DQS0N_BJ7DDR_CH0_DQS0N_BV3DQS0_C_B
DDR_CH0_DQS0P_AU5DDR_CH0_DQS0P_AD3DQS0_T_A
DDR_CH0_DQS0P_BJ8DDR_CH0_DQS0P_BW3DQS0_T_B
DDR_CH0_DQS1N_AAA4DDR_CH0_DQS1N_AE10DQS1_C_A
DDR_CH0_DQS1N_BF4DDR_CH0_DQS1N_BV10DQS1_C_B
DDR_CH0_DQS1P_AAA5DDR_CH0_DQS1P_AD10DQS1_T_A
DDR_CH0_DQS1P_BF5DDR_CH0_DQS1P_BW10DQS1_T_B
DDR_CH0_LP4/4X_CKE0/LP5_CS0_AP7DDR_CH0_LP4/4X_CKE0/LP5_CS0_AJ4CKE0_A
DDR_CH0_LP4/4X_CKE0/LP5_CS0_BL5DDR_CH0_LP4/4X_CKE0/LP5_CS0_BP4CKE0_B
DDR_CH0_LP4/4X_CKE1/LP5_CS1_AN7DDR_CH0_LP4/4X_CKE1/LP5_CS1_AJ5CKE1_A
DDR_CH0_LP4/4X_CKE1/LP5_CS1_BL4DDR_CH0_LP4/4X_CKE1/LP5_CS1_BP5CKE1_B
DDR_CH0_LP4/4X_CS0_AR6DDR_CH0_LP4/4X_CS0_AH4CS0_A
DDR_CH0_LP4/4X_CS0_BL7DDR_CH0_LP4/4X_CS0_BR4CS0_B
DDR_CH0_LP4/4X_CS1_AR7DDR_CH0_LP4/4X_CS1_AH3CS1_A
DDR_CH0_LP4/4X_CS1_BL8DDR_CH0_LP4/4X_CS1_BR3CS1_B
DDR_RESETT4DDR_CH0_RESET_AT11RESET_N

Table 6: Relationship between main ic RK3588 with DDR4X ic2

Net NameRK3588 Pin NumberRK3588 Pin NameDDR4X PinNumber IC2DDR4X Pin Name IC2
DDR_CH1_A0_CG12DDR_CH1_A0_CH2CA0_A
DDR_CH1_A0_DH15DDR_CH1_A0_DR2CA0_B
DDR_CH1_A1_CF12DDR_CH1_A1_CJ2CA1_A
DDR_CH1_A1_DG14DDR_CH1_A1_DP2CA1_B
DDR_CH1_A2_CE13DDR_CH1_A2_CH9CA2_A
DDR_CH1_A2_DG13DDR_CH1_A2_DR9CA2_B
DDR_CH1_A3_CD13DDR_CH1_A3_CH10CA3_A
DDR_CH1_A3_DE14DDR_CH1_A3_DR10CA3_B
DDR_CH1_A4_CA10DDR_CH1_A4_CH11CA4_A
DDR_CH1_A4_DA15DDR_CH1_A4_DR11CA4_B
DDR_CH1_A5_CB11DDR_CH1_A5_CJ11CA5_A
DDR_CH1_A5_DB14DDR_CH1_A5_DP11CA5_B
DDR_CH1_CLKN_CA12DDR_CH1_CKB_CJ9CK_C_A
DDR_CH1_CLKN_DA13DDR_CH1_CKB_DP9CK_C_B
DDR_CH1_CLKP_CB12DDR_CH1_CK_CJ8CK_T_A
DDR_CH1_CLKP_DB13DDR_CH1_CK_DP8CK_T_B
DDR_CH1_DM0_CF8DDR_CH1_DM0_CC3DMI0_A
DDR_CH1_DM0_DD20DDR_CH1_DM0_DY3DMI0_B
DDR_CH1_DM1_CD4DDR_CH1_DM1_CC10DMI1_A
DDR_CH1_DM1_DD22DDR_CH1_DM1_DY10DMI1_B
DDR_CH1_DQ0_CA8DDR_CH1_DQ0_CB2DQ0_A
DDR_CH1_DQ0_DA17DDR_CH1_DQ0_DAA2DQ0_B
DDR_CH1_DQ1_CB9DDR_CH1_DQ1_CC2DQ1_A
DDR_CH1_DQ1_DB16DDR_CH1_DQ1_DY2DQ1_B
DDR_CH1_DQ10_CA2DDR_CH1_DQ10_CE11DQ10_A
DDR_CH1_DQ10_DA23DDR_CH1_DQ10_DV11DQ10_B
DDR_CH1_DQ11_CB2DDR_CH1_DQ11_CF11DQ11_A
DDR_CH1_DQ11_DB23DDR_CH1_DQ11_DU11DQ11_B
DDR_CH1_DQ12_CA5DDR_CH1_DQ12_CF9DQ12_A
DDR_CH1_DQ12_DA20DDR_CH1_DQ12_DU9DQ12_B
DDR_CH1_DQ13_CB5DDR_CH1_DQ13_CE9DQ13_A
DDR_CH1_DQ13_DB20DDR_CH1_DQ13_DV9DQ13_B
DDR_CH1_DQ14_CA4DDR_CH1_DQ14_CC9DQ14_A
DDR_CH1_DQ14_DA21DDR_CH1_DQ14_DY9DQ14_B
DDR_CH1_DQ15_CB4DDR_CH1_DQ15_CB9DQ15_A
DDR_CH1_DQ15_DB21DDR_CH1_DQ15_DAA9DQ15_B
DDR_CH1_DQ2_CA9DDR_CH1_DQ2_CE2DQ2_A
DDR_CH1_DQ2_DA16DDR_CH1_DQ2_DV2DQ2_B
DDR_CH1_DQ3_CB10DDR_CH1_DQ3_CF2DQ3_A
DDR_CH1_DQ3_DB15DDR_CH1_DQ3_DU2DQ3_B
DDR_CH1_DQ4_CA6DDR_CH1_DQ4_CF4DQ4_A
DDR_CH1_DQ4_DA19DDR_CH1_DQ4_DU4DQ4_B
DDR_CH1_DQ5_CB7DDR_CH1_DQ5_CE4DQ5_A
DDR_CH1_DQ5_DB18DDR_CH1_DQ5_DV4DQ5_B
DDR_CH1_DQ6_CA7DDR_CH1_DQ6_CC4DQ6_A
DDR_CH1_DQ6_DA18DDR_CH1_DQ6_DY4DQ6_B
DDR_CH1_DQ7_CB8DDR_CH1_DQ7_CB4DQ7_A
DDR_CH1_DQ7_DB17DDR_CH1_DQ7_DAA4DQ7_B
DDR_CH1_DQ8_CA3DDR_CH1_DQ8_CB11DQ8_A
DDR_CH1_DQ8_DA22DDR_CH1_DQ8_DAA11DQ8_B
DDR_CH1_DQ9_CB3DDR_CH1_DQ9_CC11DQ9_A
DDR_CH1_DQ9_DB22DDR_CH1_DQ9_DY11DQ9_B
DDR_CH1_DQS0N_CD9DDR_CH1_DQS0N_CE3DQS0_C_A
DDR_CH1_DQS0N_DG16DDR_CH1_DQS0N_DV3DQS0_C_B
DDR_CH1_DQS0P_CE9DDR_CH1_DQS0P_CD3DQS0_T_A
DDR_CH1_DQS0P_DH16DDR_CH1_DQS0P_DW3DQS0_T_B
DDR_CH1_DQS1N_CD5DDR_CH1_DQS1N_CE10DQS1_C_A
DDR_CH1_DQS1N_DE21DDR_CH1_DQS1N_DV10DQS1_C_B
DDR_CH1_DQS1P_CE5DDR_CH1_DQS1P_CD10DQS1_T_A
DDR_CH1_DQS1P_DD21DDR_CH1_DQS1P_DW10DQS1_T_B
DDR_CH1_LP4/4X_CKE0/LP5_CS0_CD11DDR_CH1_LP4/4X_CKE0/LP5_CS0_CJ4CKE0_A
DDR_CH1_LP4/4X_CKE0/LP5_CS0_DD16DDR_CH1_LP4/4X_CKE0/LP5_CS0_DP4CKE0_B
DDR_CH1_LP4/4X_CKE1/LP5_CS1_CE11DDR_CH1_LP4/4X_CKE1/LP5_CS1_CJ5CKE1_A
DDR_CH1_LP4/4X_CKE1/LP5_CS1_DE16DDR_CH1_LP4/4X_CKE1/LP5_CS1_DP5CKE1_B
DDR_CH1_LP4/4X_CS0_CG11DDR_CH1_LP4/4X_CS0_CH4CS0_A
DDR_CH1_LP4/4X_CS0_DE19DDR_CH1_LP4/4X_CS0_DR4CS0_B
DDR_CH1_LP4/4X_CS1_CH11DDR_CH1_LP4/4X_CS1_CH3CS1_A
DDR_CH1_LP4/4X_CS1_DD19DDR_CH1_LP4/4X_CS1_DR3CS1_B
DDR_RESETT4DDR_CH0_RESET_AT11RESET_N

5.2 Connection Main Ic RK3588 With EMMC​

The connection between main ic RK3588 with eMMC IC is shown in table 7

Table 7: Relationship between main ic RK3588 with eMMC

Net NameRK3588 Pin NumberRK3588 Pin NameEMMC Pin NumberEMMC Pin Name
EMMC_CLKOUTV34EMMC_CLKOUT/GPIO2_A1_dU16.M6CLK
EMMC_CMDW34EMMC_CMD/FSPI_CLK_M0/GPIO2_A0_uU16.M5CMD
EMMC_D0Y33EMMC_D0/FSPI_D0_M0/GPIO2_D0_uU16.A3DATA0
EMMC_D1W33EMMC_D1/FSPI_D1_M0/GPIO2_D1_uU16.A4DATA1
EMMC_D2V32EMMC_D2/FSPI_D2_M0/GPIO2_D2_uU16.A5DATA2
EMMC_D3AA33EMMC_D3/FSPI_D3_M0/GPIO2_D3_uU16.B2DATA3
EMMC_D4Y32EMMC_D4/I2C1_SCL_M3/UART5_RX_M2/GPIO2_D4_uU16.B3DATA4
EMMC_D5AA32EMMC_D5/I2C1_SDA_M3/UART5_TX_M2/GPIO2_D5_uU16.B4DATA5
EMMC_D6W32EMMC_D6/FSPI_CS0N_M0/GPIO2_D6_uU16.B5DATA6
EMMC_D7V33EMMC_D7/FSPI_CS1N_M0/GPIO2_D7_uU16.B6DATA7
EMMC_DATA_STROBEY34EMMC_DATA_STROBE/I2C2_SDA_M2/UART5_CTSN_M1/GPI O2_A2_dU16.H5DATASTROBE
EMMC_RSTNAA34EMMC_RSTN/I2C2_SCL_M2/UART5_RTSN_M1/GPIO2_A3_dU16.K5RST_N

5.3 Connection Main Ic RK3588 With PMIC​

The connection between main ic RK3588 with PMIC is shown in table 8

Table 8: Relationship between main ic RK3588 with PMIC

Net NameRK3588 Pin NumberRK3588 Pin NamePMIC Pin NumberPMIC Pin Name
PMIC_INT_LM30PMIC_INT_L/GPIO0_A7_u19INT
PMIC_SPI_CSK30SPI2_CS0_M2/I2C1_SDA_M1/PWM5_M0/UART0_TX_M1/GPIO0_ B1_z18(IIC/SPI)CS
PMIC_SPI_CLKN31SPI2_CLK_M2/SDMMC_PWREN/PMU_DEBUG/GPIO0_A5_d17(SCL)CLK
PMIC_SPI_MOSIL29SPI2_MISO_M2/I2C0_SCL_M0/GPIO0_B3_z15(SDA)MOSI
PMIC_PWR_CTRL2T30PMIC_SLEEP5/GPIO0_C3_d61PWRCTRL2
PMIC_PWR_CTRL1R32PMIC_SLEEP1/GPIO0_A2_d62PWRCTRL1
RESET_LM31NPOR40RESETB

5.4 Connection Main Ic RK3588 With Other Devices​

The connection between main ic RK3588 with other devices is shown in table 9

Table 9: Relationship between main ic RK3588 with other devices

Net NameRK3588 Pin NumberRK3588 Pin NameOther devices
CPU_BIG0_VSELR31PMIC_SLEEP2/GPIO0_A3_dControl power output power netVDD_CPU_BIG0
CPU_BIG1_VSELW28PMIC_SLEEP6/PDM0_SDI3_M1/GPIO0_D6_dControl power output power netVDD_CPU_BIG1
I2C0_SCL_M2W30I2S1_SDO0_M1/CPU_BIG0_AVS/I2C0_SCL_M2/UART0_CTSN/UART1_ TX_M2/HDMI_RX_SDA_M0/SPI0_CS0_M0/PCIE30X2_CLKREQN_M0/H DMI_TX0_CEC_M1/GPIO0_D1_uIc PMIC for power net VDD_CPU_BIG0 and BIG1
I2C0_SDA_M2W29I2S1_SDO1_M1/I2C0_SDA_M2/UART1_RX_M2/HDMI_RX_SCL_M0/SP I3_MOSI_M2/PCIE30X2_WAKEN_M0/HDMI_TX1_CEC_M1/GPIO0_D2_ u
I2C1_SCL_M2V29I2S1_SDO2_M1/PDM0_SDI2_M1/PWM3_IR_M0/I2C1_SCL_M2/CAN2_ RX_M1/HDMI_TX0_SDA_M1/SPI3_CS0_M2/PCIE30X2_PERSTN_M0/S ATA_CPDET/GPIO0_D4_uIc PMIC for power net VDD_NPU
I2C1_SDA_M2V28I2S1_SDO3_M1/CPU_BIG1_AVS/I2C1_SDA_M2/CAN2_TX_M1/HDMI_T X0_SCL_M1/SPI3_CS1_M2/SATA_MP_SWITCH/GPIO0_D5_u
NPU_VSELU32PMIC_SLEEP3/GPIO0_C1_dControl power output power net VDD_NPU
XIN24MR34XIN_24Mcrystal oscillator24MHz
XOUT24MT34XOUT_24M

6 Electrical Specifications​

6.1 Power Supply Block Diagram​

This Power supply block diagram description points to a scenario involving a power management integrated circuit (PMIC) in a system that includes the RK3588 SoC (System on Chip) and the RK806-1 PMIC.

Here's a more detailed breakdown of how this setup typically functions:

• Power source from VCC4V_SYS (4V) power supply through the SOM connector.

• RK806-1 PMIC is main systems power management unit.

• Some other parts PMIC as: RK860-2, RK860-3, SY8089, SGM2576

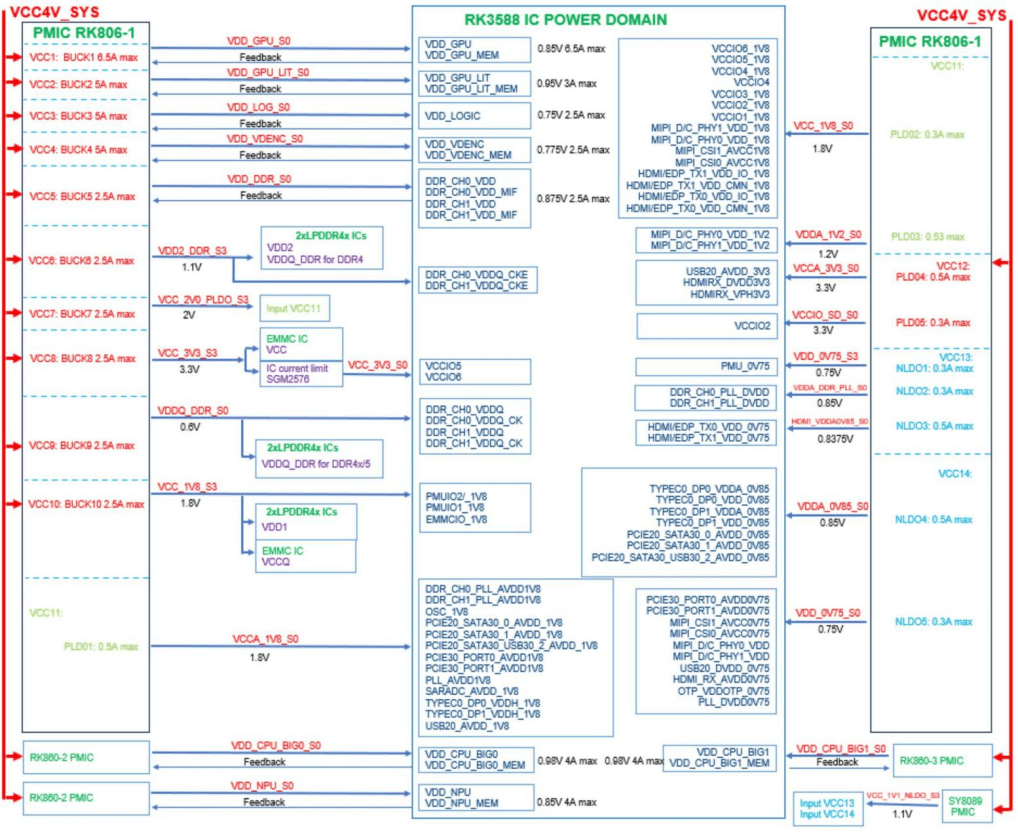

Figure 6: Power supply block diagram

6.2 Total Power Consumption on SoM​

Maximum total power consumption on SOM is about 25.6W in high performance conditions

The Extreme Current of Core ModulePower NetworkVoltage***(V)***Peak Current***（A）***PeakPower***(W)***NOTE
VDD_CPU_BIG0_S00.9804.003.922400MHz
VDD_CPU_BIG1_S00.9804.003.922400MHz
VDD_CPU_LIT_S00.9503.002.851800MHz
VDD_LOG_S00.7502.501.88
VDD_GPU_S00.8506.505.531000MHz
VDD_NPU_S00.8504.003.401000MHz
VDD_VDENC_S00.7752.501.94750MHz
VDD_DDR_S00.8702.502.182112MHz
Total Peak Power (W)25.60

6.3 System Frequency​

NameSpecificationRemark
SmallestTypicalMaximumUnit
frequency Arm® Cortex®-A76--2400MHz-
frequency Arm® Cortex®-A55--1800MHz
frequency Arm® Cortex® - M0-----

6.4 Working Environment​

ParameterSpecificationRemark
SmallestTypicalMaximumUnit
Operatingtemperatureworking environment02580℃commercial gradecommercial grade
Storage environment-4025125℃
Humidityworking environment10-90%RHNo condensationNo condensation

6.5 Interface Speed​

ParameterSpecificationRemark
SmallestTypicalMaximumUnit
Serial communication speed-1152004Mbps-
SPI Clock frequency--50MHz-
I2C Communication speed-100400Kbps-
USB3.0 interface speed--5Gbps-
USB2.0 interface speed--480Mbps-
CAN Communication speed--1Mbps-
PCIe2.1--5Gbps-
PCI e3.0--8Gbps-

6.6 ESD Characteristic​

ParameterSpecificationUnitScope of application
SmallestMaximum
ESD HBM (ESDA/JEDEC JS-001-2017)-20002000VAll pinout signals of the core board
ESD CDM (ESDA/JEDEC JS-002-2018)-250250VAll pinout signals of the core board

7 Notes For Carrier Board Design​

7.1 GPIO Power Domain​

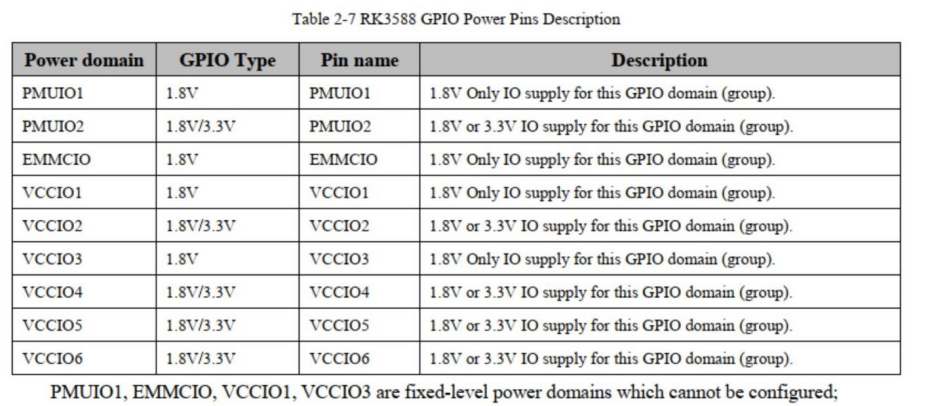

Voltage level on GPIO input and output depends on power supply for GPIO Power Domain. When design carrier board have to check power supply for GPIO Power Domain on SOM


• PMUIO1

  • Voltage supply for PMUIO1_ 1V8 pin N28 is 1.8V.

  • GPIO0_A0-A7 and GPIO0_B0-B3 voltage level is 1.8V

• PMUIO2

  • Voltage supply for PMUIO2 pin P28 is 1.8V

  • GPIO0_B5-B7, GPIO0_C0-C7, GPIO0_D0-D6 voltage level is 1.8V

• VCCIO1

  • Voltage supply for VCCIO1_ 1V8 pin G20 is 1.8V

  • GPIO1_C0-C7, GPIO1_D0-D5 voltage level is 1.8V

• VCCIO2

  • Voltage supply for VCCIO2 pin Y7 is VCCIO_SD_S0= 3.3V

  • GPIO4_D0-D5 voltage level is 3.3V

• VCCIO3

  • Voltage supply for VCCIO3 pin Y26 is 1.8V

  • GPIO2_A6-A7, GPIO2_B0-B7, GPIO2_C0-C7, GPIO4-C2-C6 voltage level is 1.8V

• VCCIO4

  • Voltage supply for VCCIO4 pin H21 is 1.8V

  • GPIO1_A0-A7, GPIO1_B0-B7, GPIO1_D6-D7 voltage level is 1.8V

• VCCIO5

  • Voltage supply for VCCIO4 pin W26 is 3.3V

  • GPIO3_A0-A7, GPIO3_B0-B7, GPIO3_C0-C7, GPIO3_D0-D5 voltage level is 3.3V

• VCCIO6

  • Voltage supply for VCCIO6 pin AC26 is 3.3V

  • GPIO4_A0-A7, GPIO4_B0-B7, GPIO4_C0-C1 voltage level is 3.3V

• SARADC

  • Voltage supply for SARADC_AVDD_ 1V8 pin AH18 is 1.8V

  • SARADC_IN0-IN7 voltage range is 0V-1.8V

7.2 Boot Mode Config​

  • On SOM in use boot mode level 7:

  • FSPI_M2 → FSPI_M1 → FSPI_M0 → EMMC →SD Card → USB

7.3 Power Control Signals​

• PWRON_L

Signals PWRON_L on connector J4 pin 84 allow user on/off or reset main power of system (more detail see data sheet PMIC RK806-1).

  • Keep PWRON_L low level 500/20ms would turn on the PMIC

  • When the PMIC work in “on” state or “sleep” state, writing register bit 0x76<6>=0 then keep low level PWRON_L for 6/8/10/12S would turn off the PMIC.

  • When the PMIC work in “on” state or “sleep” state, writing register bit 0x76<6>=1 then keep low level PWRON_L for 6/8/10/12S would turn off the PMIC.

• RESET_L

Signals RESET_L on connector J4 pin 86 allow user on/off or reset main power of system (more detail see data sheet PMIC RK806-1).

  • When the PMIC work in “on” state or “sleep” state if RESET_L pull down, the PMIC would restart immediately.

7.4 Recovery System​

Signal SARADC_VIN1_KEY/RECOVERY on connector J3 pin89 allow user recovery system.

SARADC_VIN1 is pulled up to VCCA_ 1V8_S0 through a 10Kohm pull-up resistor, and the default is high level (1.8V).

Under the premise that there is no key action and the system has already burned the firmware, power on and enter the system directly.

If the Recovery mode button is in the pressed state (low level) when the system starts, (that is, SARADC_VIN1 remains at low level (0V)), RK3588 enters Loader programming mode.

When the PC recognizes the USB device, release the button to restore SARADC_VIN1 to a high level (1.8V), and then the firmware can be programmed.

7.5 Trace Impedance Recommendation​

The following table lists the recommended impedance for high-speed signals on the carrier board.

Table 5. Trace impedance recommendation

Signal groupImpedancePCB manufacture tolerance (±)
All single-ended signal, unless specified50 Ohm single-ended10%
PCIe TX/RX data pair85 Ohm differential10%
USB differential signals90 Ohm differential10%
Differential signals: including Ethernet, PCIe clocks, HDMI, MIPI (CSI and DSI)100 Ohm differential10%

7.6 Height limit Zone on Carrier Board at Area SoM Connected.​

We recommend to use connector on carrier board is DF40HC(3.0)-100DS-0.4V(58).

The connectors have height is 3mm and maximum height components on bottom side of SoM is 1.4mm so that area top side on carrier board where the SOM is connected should keep components limit height is1.5mm.

Note: In case designer use connectors on carrier board with lower height. Example designer use P/NDF40HC-100DS-0.4V(58) have height is 1.5mm. Area top side on carrier board where the SOM connected is not allow placement any components because it will conflict with components on SoM (SoM hasmaximum height components on bottom side of SoM is 1.4mm).

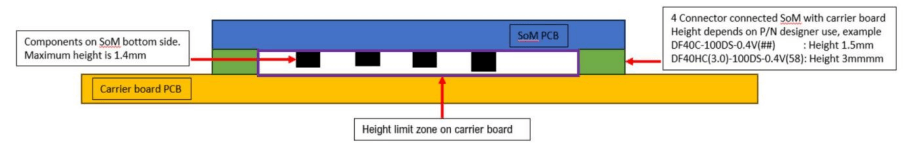

Figure 7: Height limit zone on carrier board top side

8 Trace Length on IC Package and SoM​

8.1 MIPI Signals​

Net NameIC PACKAGE Pin NumberConnectorLength ICPackage***(MIL)***LengthSOM (MIL)Total Length = ICPackage + SOM***(MIL)***
MIPI_CSI0_RX_CLK0NU1000.AJ34J6.73521.32222.00743.322
MIPI_CSI0_RX_CLK0PU1000.AJ33J6.71516.70225.95742.654
MIPI_CSI0_RX_CLK1NU1000.AM34J6.91474.51285.70760.213
MIPI_CSI0_RX_CLK1PU1000.AM33J6.89470.38295.39765.769
MIPI_CSI0_RX_D0NU1000.AG34J6.61414.13237.03651.159
MIPI_CSI0_RX_D0PU1000.AG33J6.59425.51228.04653.551
MIPI_CSI0_RX_D1NU1000.AH34J6.65430.32234.18664.494
MIPI_CSI0_RX_D1PU1000.AH33J6.67437.65231.87669.518
MIPI_CSI0_RX_D2NU1000.AK34J6.79496.56231.03727.593
MIPI_CSI0_RX_D2PU1000.AK33J6.77491.33240.99732.32
MIPI_CSI0_RX_D3NU1000.AL34J6.83467.61257.83725.437
MIPI_CSI0_RX_D3PU1000.AL33J6.85464.76265.35730.107
MIPI_CSI1_RX_CLK0NU1000.AJ32J6.70409.64157.31566.951
MIPI_CSI1_RX_CLK0PU1000.AJ31J6.72405.04166.77571.815
MIPI_CSI1_RX_CLK1NU1000.AM32J6.88456.98215.73672.712
MIPI_CSI1_RX_CLK1PU1000.AM31J6.90457.63218.80676.429
MIPI_CSI1_RX_D0NU1000.AG32J6.58379.47173.78553.253
MIPI_CSI1_RX_D0PU1000.AG31J6.60378.21180.45558.652
MIPI_CSI1_RX_D1NU1000.AH32J6.64449.18181.48630.66
MIPI_CSI1_RX_D1PU1000.AH31J6.66470.91162.50633.403
MIPI_CSI1_RX_D2NU1000.AK32J6.76412.01168.55580.558
MIPI_CSI1_RX_D2PU1000.AK31J6.78410.11175.38585.489
MIPI_CSI1_RX_D3NU1000.AL32J6.82398.68182.72581.401
MIPI_CSI1_RX_D3PU1000.AL31J6.84397.02188.20585.226
MIPI_DPHY0_RX_CLKNU1000.AP31J5.12401.82179.10580.922
MIPI_DPHY0_RX_CLKPU1000.AN32J5.10417.26164.32581.577
MIPI_DPHY0_RX_D0NU1000.AP29J5.11363.24228.52591.761
MIPI_DPHY0_RX_D0PU1000.AN29J5.9355.16234.80589.96
MIPI_DPHY0_RX_D1NU1000.AP30J5.5408.95201.62610.565
MIPI_DPHY0_RX_D1PU1000.AN30J5.3372.67234.24606.903
MIPI_DPHY0_RX_D2NU1000.AP32J5.6419.62213.27632.886
MIPI_DPHY0_RX_D2PU1000.AN33J5.4429.97208.01637.973
MIPI_DPHY0_RX_D3NU1000.AP33J6.95474.24301.06775.303
MIPI_DPHY0_RX_D3PU1000.AN34J6.97443.30327.92771.217
MIPI_DPHY0_TX_CLKNU1000.AP26J5.23339.44251.54590.98
MIPI_DPHY0_TX_CLKPU1000.AN26J5.21349.51242.25591.752
MIPI_DPHY0_TX_D0NU1000.AP24J5.35301.30250.46551.765
MIPI_DPHY0_TX_D0PU1000.AN24J5.33273.25279.42552.663
MIPI_DPHY0_TX_D1NU1000.AP25J5.29335.21222.02557.231
MIPI_DPHY0_TX_D1PU1000.AN25J5.27284.86272.63557.49
MIPI_DPHY0_TX_D2NU1000.AP27J5.15335.29229.46564.753
MIPI_DPHY0_TX_D2PU1000.AN27J5.17329.02239.85568.863
MIPI_DPHY0_TX_D3NU1000.AP28J5.18370.56140.43510.991
MIPI_DPHY0_TX_D3PU1000.AN28J5.16351.96154.00505.955
MIPI_DPHY1_TX_CLKNU1000.AP20J5.40282.48108.26390.733
MIPI_DPHY1_TX_CLKPU1000.AN20J5.42272.36124.05396.406
MIPI_DPHY1_TX_D0NU1000.AP18J5.46277.5297.59375.108
MIPI_DPHY1_TX_D0PU1000.AN18J5.48225.90145.37371.275
MIPI_DPHY1_TX_D1NU1000.AP19J5.45290.67222.23512.896
MIPI_DPHY1_TX_D1PU1000.AN19J5.47255.06258.63513.693
MIPI_DPHY1_TX_D2NU1000.AP21J5.41285.74241.88527.62
MIPI_DPHY1_TX_D2PU1000.AN21J5.39275.44254.34529.777
MIPI_DPHY1_TX_D3NU1000.AP22J5.34290.16124.77414.936
MIPI_DPHY1_TX_D3PU1000.AN22J5.36291.77125.73417.501

8.2 SDMMC Signals​

Net NameIC PACKAGEPin numberConnectorLength ICPackage***(MIL)***LengthSOM (MIL)Total Length = ICPackage + SOM***(MIL)***
SDMMC0_CMDU1000.AE2J3.24330.64498.31828.957
SDMMC0_D0U1000.AD2J3.14346.61535.68882.291
SDMMC0_D1U1000.AD1J3.16328.87503.49832.358
SDMMC0_D2U1000.AF2J3.20364.33616.71981.04
SDMMC0_D3U1000.AF1J3.18381.91544.47926.379
SDMMC_DET/GPIO0_A4_UU1000.P31J3.36274.691377.881652.562
SD_CLKU1000.AE1J3.22366.00490.41856.407

8.3 USB Signals​

Net NameIC PACKAGEPin numberConnectorLength ICPackage***(MIL)***Length SOM (MIL)Total ***Length =***IC Package + SOM (MIL)
TYPEC0_OTG_DMU1000.AM12J5.96225.04655.55880.595
TYPEC0_OTG_DPU1000.AL12J5.94230.41657.78888.189
TYPEC0_OTG_IDU1000.AL14J3.77230.15600.03830.174
TYPEC0_SBU1/DP0_AUXPU1000.AL15J5.90221.73786.691008.421
TYPEC0_SBU2/DP0_AUXNU1000.AM15J5.88220.75782.091002.833
TYPEC0_SSRX1N/DP0_TX0NU1000.AP13J5.66292.31111.93404.239
TYPEC0_SSRX1P/DP0_TX0PU1000.AN13J5.64276.34133.40409.741
TYPEC0_SSRX2N/DP0_TX2NU1000.AP15J5.54290.82120.44411.261
TYPEC0_SSRX2P/DP0_TX2PU1000.AN15J5.52277.47136.46413.927
TYPEC0_SSTX1N/DP0_TX1NU1000.AN14J5.58285.21124.79410.002
TYPEC0_SSTX1P/DP0_TX1PU1000.AP14J5.60275.08131.49406.577
TYPEC0_SSTX2N/DP0_TX3NU1000.AN16J5.53271.10247.84518.935
TYPEC0_SSTX2P/DP0_TX3PU1000.AP16J5.51269.26248.87518.133
TYPEC0_USB20_VBUSDETU1000.AM14J3.79237.42794.481031.909
TYPEC1_OTG_DMU1000.AL9J5.82206.21233.03439.241
TYPEC1_OTG_DPU1000.AK9J5.84210.43231.46441.888
TYPEC1_OTG_IDU1000.AK8J3.13266.20707.35973.555
TYPEC1_SBU1/DP1_AUXPU1000.AL10J5.78286.57189.48476.056
TYPEC1_SBU2/DP1_AUXNU1000.AM10J5.76264.66206.53471.189
TYPEC1_SSRX1N/DP1_TX0NU1000.AP8J5.69369.18235.82605.003
TYPEC1_SSRX1P/DP1_TX0PU1000.AN8J5.71355.21254.08609.295
TYPEC1_SSRX2N/DP1_TX2NU1000.AP10J5.59331.61269.46601.074
TYPEC1_SSRX2P/DP1_TX2PU1000.AN10J5.57313.06293.71606.77
TYPEC1_SSTX1N/DP1_TX1NU1000.AN9J5.65360.15264.33624.48
TYPEC1_SSTX1P/DP1_TX1PU1000.AP9J5.63356.70273.16629.858
TYPEC1_SSTX2N/DP1_TX3NU1000.AN11J5.72330.60147.97478.567
TYPEC1_SSTX2P/DP1_TX3PU1000.AP11J5.70304.26169.77474.028
TYPEC1_USB20_VBUSDETU1000.AL8J3.15227.94246.09474.028
USB20_HOST0_DMU1000.AL6J3.45292.05456.31748.356
USB20_HOST0_DPU1000.AK6J3.43295.56448.52744.085
USB20_HOST1_DMU1000.AM7J3.51237.59464.70702.292
USB20_HOST1_DPU1000.AL7J3.49219.93477.48697.418

8.4 GMAC Signals​

Net NameIC PACKAGE Pin numberConnectorLength ICPackage***(MIL)***LengthSOM (MIL)Total Length = ICPackage + SOM***(MIL)***
GMAC1_MDCU1000.Y31J6.33323.27492.34815.61
GMAC1_RSTN_LU1000.AA28J6.35212.03606.12818.153
GMAC1_RXCLKU1000.AH30J4.50433.36690.401123.76
GMAC1_RXD0U1000.AG29J4.54397.51638.601036.107
GMAC1_RXD1U1000.AG28J4.56379.69672.121051.809
GMAC1_RXD2U1000.AD27J4.46328.88715.991044.869
GMAC1_RXD3U1000.AE27J4.52361.14656.991018.129
GMAC1_RXDV_CRSU1000.AH29J4.48439.53745.861185.39
GMAC1_MCLKINOUTU1000.AE29J6.52361.13261.89623.025
GMAC1_TXCLKU1000.AD28J6.54333.39349.01682.4
GMAC1_TXD0U1000.AC28J6.46296.19232.66528.844
GMAC1_TXD1U1000.AC29J6.48311.08209.96521.045
GMAC1_TXD2U1000.AA29J6.42289.05219.70508.749
GMAC1_TXD3U1000.AA30J6.44264.69183.90448.593
GMAC1_TXENU1000.AD29J6.50285.49216.02501.507
GMAC1_MDIOU1000.Y30J6.40297.36212.66510.026

8.5 HDMI Signals​

Net NameIC PACKAGEPin numberConnectorLength ICPackage***(MIL)***Length SOM***(MIL)***Total Length = ICPackage + SOM (MIL)
HDMI0_TX0N_PORT/EDP0_TX_D0NU1000.AJ1J3.80456.08316.35772.422
HDMI0_TX0P_PORT/EDP0_TX_D0PU1000.AJ2J3.78436.29339.87776.164
HDMI0_TX1N_PORT/EDP0_TX_D1NU1000.AK2J3.86413.66392.50806.157
HDMI0_TX1P_PORT/EDP0_TX_D1PU1000.AK3J3.84422.31389.81812.112
HDMI0_TX2N_PORT/EDP0_TX_D2NU1000.AL1J3.92496.73349.19845.926
HDMI0_TX2P_PORT/EDP0_TX_D2PU1000.AL2J3.90477.79363.91841.698
HDMI0_TX3N_PORT/EDP0_TX_D3NU1000.AH2J3.74348.22371.35719.572
HDMI0_TX3P_PORT/EDP0_TX_D3PU1000.AH3J3.72364.13360.91725.043
HDMI0_TX_SBDN/EDP0_TX_AUXNU1000.AG1J3.68344.43337.09681.529
HDMI0_TX_SBDP/EDP0_TX_AUXPU1000.AG2J3.66331.99355.48687.472
HDMI1_TX0N_PORT/EDP1_TX_D0NU1000.AP4J5.89454.00227.92681.926
HDMI1_TX0P_PORT/EDP1_TX_D0PU1000.AN4J5.87452.41227.35679.758
HDMI1_TX1N_PORT/EDP1_TX_D1NU1000.AN5J5.83401.80292.26694.055
HDMI1_TX1P_PORT/EDP1_TX_D1PU1000.AM5J5.81425.96272.80698.764
HDMI1_TX2N_PORT/EDP1_TX_D2NU1000.AP6J5.77366.57224.66591.234
HDMI1_TX2P_PORT/EDP1_TX_D2PU1000.AN6J5.75347.81249.26597.071
HDMI1_TX3N_PORT/EDP1_TX_D3NU1000.AN3J5.95371.75259.98631.722
HDMI1_TX3P_PORT/EDP1_TX_D3PU1000.AM3J5.93372.16265.00637.168
HDMI1_TX_SBDN/EDP1_TX_AUXNU1000.AP2J3.96429.18420.04849.22
HDMI1_TX_SBDP/EDP1_TX_AUXPU1000.AN2J3.98419.24424.64843.878
HDMI_RX_CLKNU1000.AF5J3.21243.51482.46725.97
HDMI_RX_CLKPU1000.AF6J3.19227.26498.89726.149
HDMI_RX_D0NU1000.AG4J3.25260.15472.10732.243
HDMI_RX_D0PU1000.AG5J3.27247.86488.92736.782
HDMI_RX_D1NU1000.AH5J3.31241.06492.03733.095
HDMI_RX_D1PU1000.AH6J3.33233.49505.48738.966
HDMI_RX_D2NU1000.AJ4J3.37279.97468.36748.331
HDMI_RX_D2PU1000.AJ5J3.39288.88464.05752.925

8.6 PCIE Signals​

Net NameIC PACKAGEPin numberConnectorLength ICPackage***(MIL)***Length SOM***(MIL)***Total ***Length =***IC Package + SOM (MIL)
PCIE20_0_REFCLKNU1000.L33J4.79321.041210.151531.189
PCIE20_0_REFCLKPU1000.L32J4.77310.381214.041524.418
PCIE20_0_RXN/SATA30_0_RXNU1000.N34J6.22345.92118.22464.138
PCIE20_0_RXP/SATA30_0_RXPU1000.N33J6.24335.95133.94469.89
PCIE20_0_TXN/SATA30_0_TXNU1000.M33J6.18370.67122.29492.961
PCIE20_0_TXP/SATA30_0_TXPU1000.M34J6.16367.24131.62498.864
PCIE20_1_REFCLKNU1000.H33J6.6354.94143.98498.915
PCIE20_1_REFCLKPU1000.H32J6.4343.32161.60504.918
PCIE20_1_RXN/SATA30_1_RXNU1000.J34J4.38360.44631.99992.424
PCIE20_1_RXP/SATA30_1_RXPU1000.J33J4.40350.83647.75998.583
PCIE20_1_TXN/SATA30_1_TXNU1000.K34J6.10472.15112.19584.332
PCIE20_1_TXP/SATA30_1_TXPU1000.K33J6.12473.74116.06589.798
PCIE20_2_REFCLKNU1000.G30J6.27356.42524.70881.121
PCIE20_2_REFCLKPU1000.G31J6.29350.91524.28875.195
PCIE20_2_RXNU1000.J30J4.74324.92975.951300.875
PCIE20_2_RXPU1000.J31J4.72337.04960.261297.298
PCIE20_2_TXNU1000.H29J4.71296.551114.691411.234
PCIE20_2_TXPU1000.H30J4.73306.361111.361417.726
PCIE30_PORT0_REFCLKN_INU1000.E34J6.3448.12283.12731.245
PCIE30_PORT0_REFCLKP_INU1000.E33J6.5428.96306.54735.505
PCIE30_PORT0_RX0NU1000.G34J4.32413.48660.061073.541
PCIE30_PORT0_RX0PU1000.G33J4.34419.37657.551076.918
PCIE30_PORT0_RX1NU1000.F33J4.29380.75877.941258.689
PCIE30_PORT0_RX1PU1000.F32J4.31365.87898.381264.258
PCIE30_PORT0_TX0NU1000.D33J6.11381.59411.81793.393
PCIE30_PORT0_TX0PU1000.D32J6.9380.19418.49798.676
PCIE30_PORT0_TX1NU1000.C34J4.25498.97849.951348.915
PCIE30_PORT0_TX1PU1000.C33J4.23512.64840.561353.201
PCIE30_PORT1_REFCLKN_INU1000.B28J4.55484.951312.651797.601
PCIE30_PORT1_REFCLKP_INU1000.A28J4.53478.711314.701793.404
PCIE30_PORT1_RX2NU1000.A32J6.23500.07641.711141.777
PCIE30_PORT1_RX2PU1000.B32J6.21505.74631.281137.019
PCIE30_PORT1_RX3NU1000.B31J6.15421.04542.17963.208
PCIE30_PORT1_RX3PU1000.C31J6.17424.70544.09968.797
PCIE30_PORT1_TX2NU1000.A30J4.65424.531152.741577.269
PCIE30_PORT1_TX2PU1000.B30J4.67429.531153.251582.78
PCIE30_PORT1_TX3NU1000.B29J4.59367.401200.991568.39
PCIE30_PORT1_TX3PU1000.C29J4.61374.781199.041573.817

9 Acronyms and Abbreviations​

The table below lists and explains the acronyms and abbreviations used in this document.

Table 6. Acronyms and abbreviation

TermDescription
BGABall grid array
CANController area network
CodecCoder/decoder
CSI-2Camera serial interface 2
HDMIHigh-Definition Multimedia Interface
SDMMCDigital/ Multi Media Card interface
DSIDisplay serial interface
SARADCSuccessive Approximation Register Analog-to-Digital Converter
GPIOGeneral-purpose input/output
HSHigh-speed
I2CInter-integrated circuit
I2SInter-IC sound
I3CImproved inter-integrated circuit
MIPI D-PHYMobile Industry Processor Interface Physical Layer
MIPI C-PHYMobile Industry Processor Interface C-PHY
LDOLow dropout regulator
LEDLight-emitting diode
MCUMicrocontroller unit
MIPIMobile industry processor interface
PDMPulse-density modulation
PMICPower management integrated circuit
PORPower-on reset
RTCReal-time clock
PWMPulse width modulation
PCIEPeripheral Component Interconnect Express
SDKSoftware development kit
SMTSurface-mount technology
UARTUniversal asynchronous receiver/transmitter
USBUniversal serial bus
uSDHCUltra secured digital host controller
