Bit-Brick SSOM-3588 datasheet
1. Product Introduction

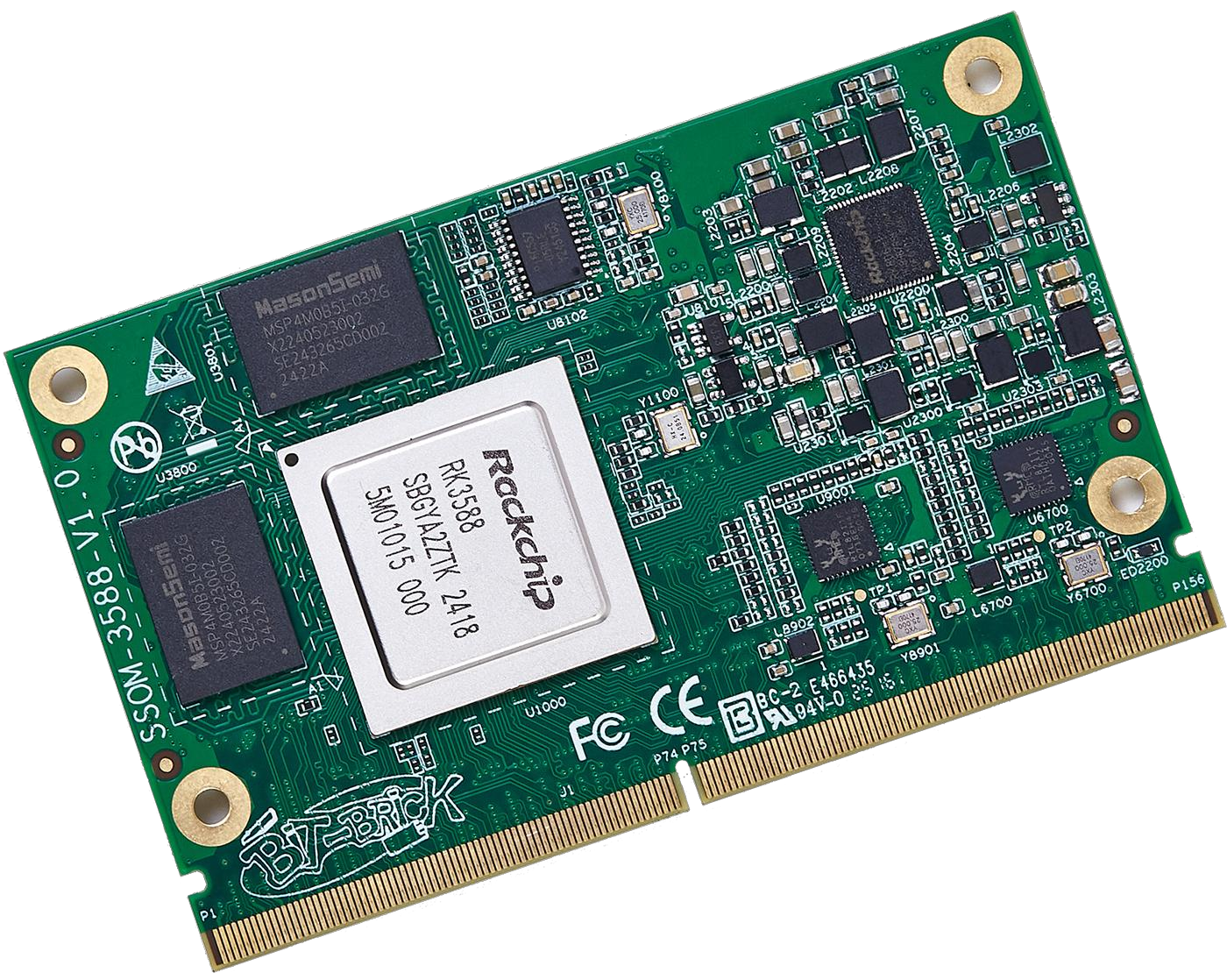

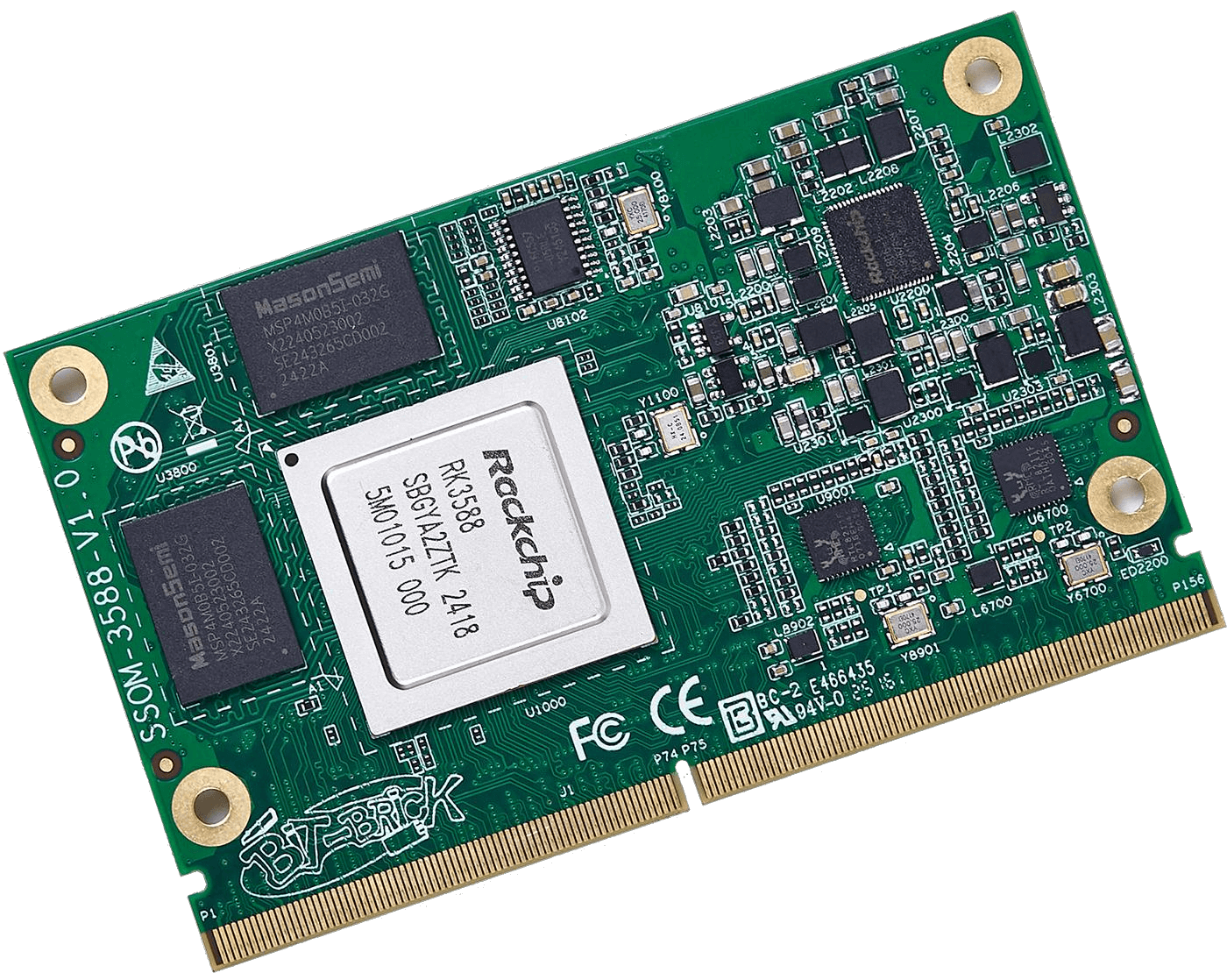

Bit-Brick’s SSOM-3588 SoM(System on Module) is a high-performance, highly integrated embedded computing platform built around the Rockchip RK3588 processor, delivering outstanding compute performance and energy efficiency. It is tailored for applications such as industrial control, edge computing, intelligent cockpits and security surveillance.
The module’s SoC, the RK3588, is manufactured on an 8 nm process and features a heterogeneous CPU architecture with 4-core Cortex-A76(up to 2.4 GHz) and 4-core Cortex-A55(up to 1.8 GHz). It integrates a Mali-G610 MP4 GPU with an embedded 2D graphics engine, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2, and offers 8K video encode/decode capabilities. A built-in NPU delivers 6 TOPS of AI performance, support INT4/INT8/INT16/FP16/BF16/TF32.
The RK3588 SoC has a compact size. Most of the functional pins such as PCIe3.0, USB3.1, and HDMI2.1 are led out through the gold finger connector. It supports multi-screen heterogeneous display, multiple camera inputs and high-speed data transfer, enabling rapid deployment of complex AI and multimedia applications.

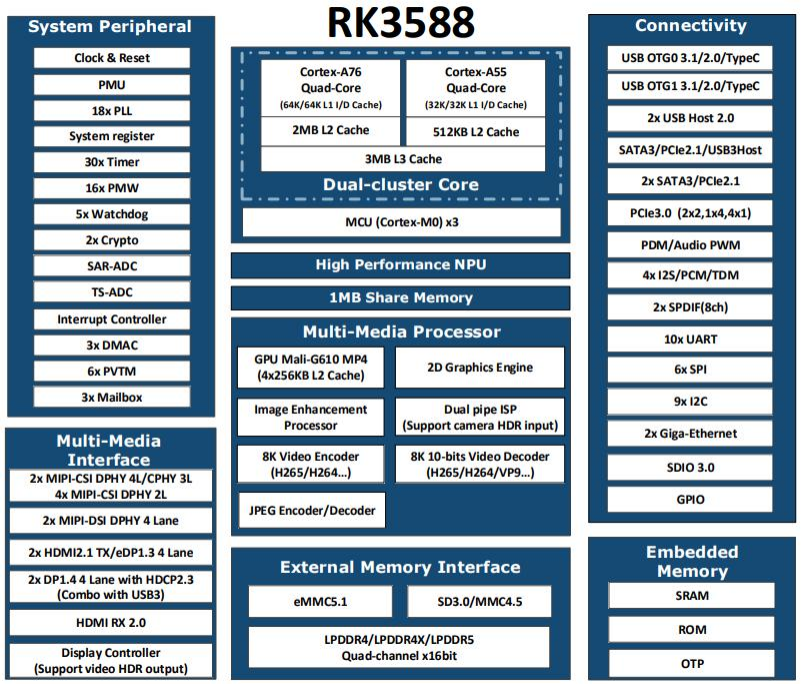

2. Processor Functional Block Diagram

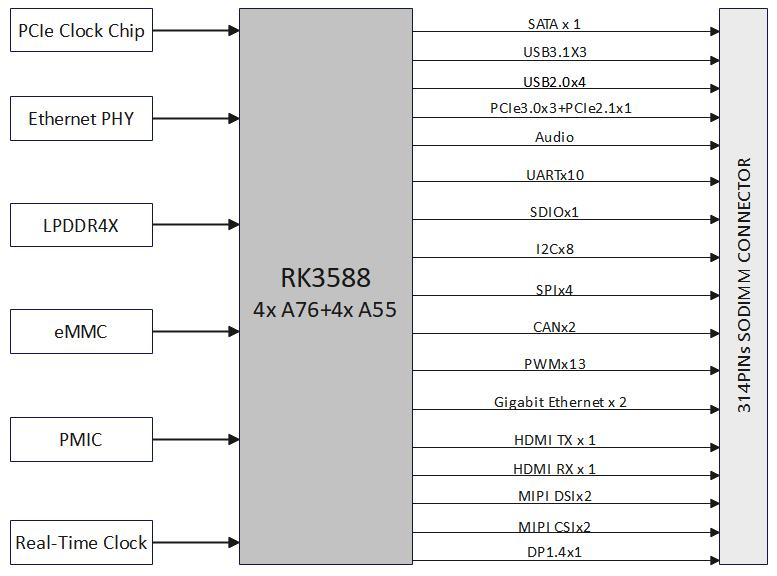

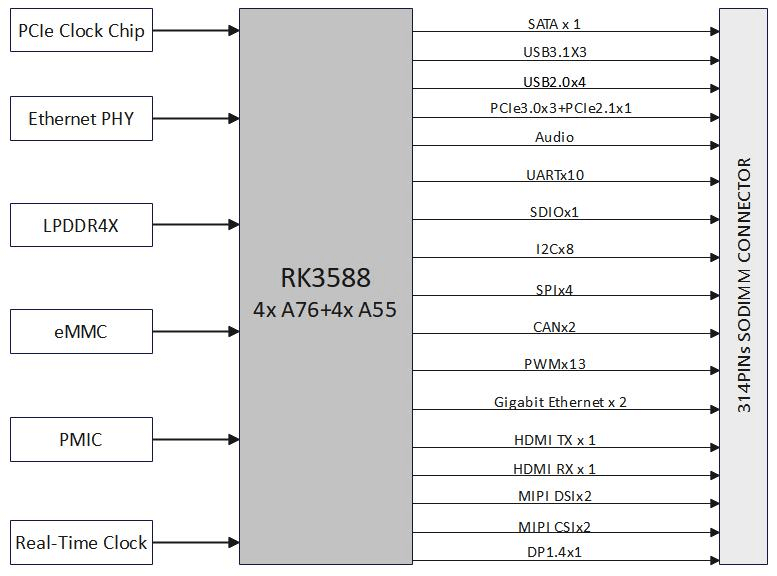

3. Hardware Functional Block Diagram
4. Specifications
| Processor | CPU | RK3588, 8-core 64-bit (4xCortex-A76 + 4xCortex-A55) with 8nm advanced process, and the main frequency can reach up to 2.4GHz | |
|---|---|---|---|
| GPU | ARM Mali-G610 MP4 quad-core GPU, support 0penGL ES 1.1, 2.0 and 3.2/0penCL 2.2/Vulkan 1.2 | ||
| NPU | 6 TOPS@INT8,support INT4/INT8/INT16/FP16/BF16/TF32 hybrid operation,support deep learning frameworks such as TensorFlow, PyTorch, Caffe,etc. | ||
| VPU | Decoder: 8K@60fps H.265/VP9/AVS2; 8K@30fps H.264/AVC/MVC; 4K@60fps AV1; 1080P@60fps MPEG-2/MPEG-1/VC-1/VP8 Encoder: 8K@30fps H.265/H.264 | ||
| Memory | RAM | 4GB/8GB/16GB/32GB LPDDR4X SDRAM | |
| ROM | 32GB/64GB/128GB eMMC | ||
| Multimedia | Video | Output: 1x HDMI2.1(8K@60fps or 4K@120fps); 1x DP1.4(4K@60fps); 2x MIPI-DSI(4K@60fps) Input: 1x HDIMI-IN(4K@60fps),support HDCP2.3; 4x MIPI-CSI DPHY; 2x MIPI DC PHY | |
| Audio | 2x 8-channel I2S; 2x 2-channel I2S; 2x SPDIF; 2x 8-channel PDM; 1x dual-channel DAC 、1x VAD | ||
| ISP | 48MP ISP3.0, support HDR & 3DNR | ||
| IO | PCIe | 3x PCIe3.0(3x 1Lane/1x 2Lane+2x 1Lane); 1x PCIe2.1(1Lane,multiplexed with SATA3.0) | |
| Ethernet | 2 x Gigabit Ethernet | ||
| USB | 2x USB3.1 0TG; 1x USB3.1 HOST; 4x USB2.0 HOST | ||
| UART | 10x | ||
| SDIO | 1x | ||
| I2C | 8x | ||
| SPI | 4x | ||
| CAN | 2x | ||
| PWM | 13x | ||
| MIPI DSI | 2x | ||
| MIPI CSI | 2x | ||
| SATA | 1x | ||
| Power supply | Power Supply Voltage | DC 4V | |
| Operating Environment | Operating Temperature | -20 ~ 75 °C | |
| Operating Humidity | 95% relative humidity, non-condensing | ||
| Mechanical | Dimensions (W x D) | 82x50 mm | |
| Operation System | Linux/Android | ||
| Certifications | CE/FCC Class B | ||

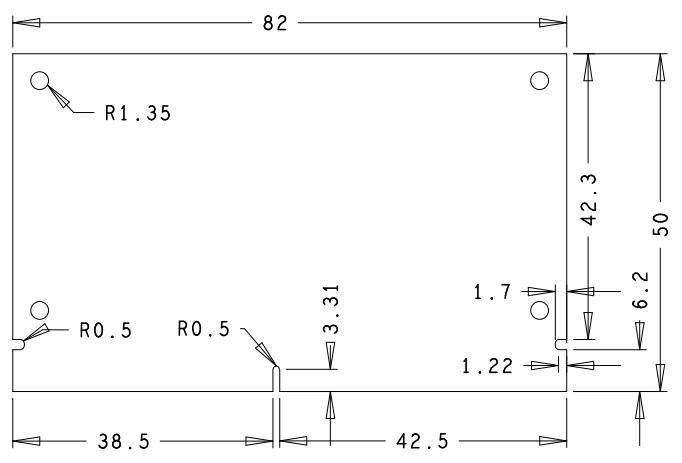

5. Dimension Specifications
Size:82.0mm X 50.0mm
6. Pin definations
| *Pin**Number* | *Default**Defination* | *Corresponding* *GPIO* | *Pin**Number* | *Default**Defination* | *Corresponding* *GPIO* |
|---|---|---|---|---|---|
| P1 | NC | S1 | NC | ||
| P2 | GND | S2 | NC | ||
| P3 | MI PI_CSI0_RX_CLK0P | S3 | GND | ||
| P4 | MI PI_CSI0_RX_CLK0N | S4 | MI PI_CAM1_CLKOUT | GPIO1_B6_u | |
| P5 | NC | S5 | I2C3_SCL_M0_MI PI | GPIO1_C1_z | |
| P6 | NC | S6 | MI PI_CAM2_CLKOUT | GPIO1_B7_u | |
| P7 | MI PI_CSI0_RX_D0P | S7 | I2C3_SDA_M0_MI PI | GPIO1_C0_z | |
| P8 | MI PI_CSI0_RX_D0N | S8 | MI PI_CSI1_RX_CLK0P | ||
| P9 | GND | S9 | MI PI_CSI1_RX_CLK0N | ||
| P10 | MI PI_CSI0_RX_D1P | S10 | GND | ||
| P11 | MI PI_CSI0_RX_D1N | S11 | MI PI_CSI1_RX_D0P | ||
| P12 | GND | S12 | MI PI_CSI1_RX_D0N | ||
| P13 | MI PI_CSI0_RX_D2P | S13 | GND | ||
| P14 | MI PI_CSI0_RX_D2N | S14 | MI PI_CSI1_RX_D1P | ||
| P15 | GND | S15 | MI PI_CSI1_RX_D1N | ||
| P16 | MI PI_CSI0_RX_D3P | S16 | GND | ||
| P17 | MI PI_CSI0_RX_D3N | S17 | PHY2_MDI0+ | ||
| P18 | GND | S18 | PHY2_MDI0- | ||
| P19 | PHY0_MDI3- | S19 | PHY2_LED2/CFG_LDO1 | ||
| P20 | PHY0_MDI3+ | S20 | PHY2_MDI1+ | ||
| P21 | PHY0_LED2/CFG_LDO1 | S21 | PHY2_MDI1+ | ||
| P22 | PHY0_LED1/CFG_LDO0 | S22 | PHY2_LED1/CFG_LDO0 | ||
| P23 | PHY0_MDI2- | S23 | PHY2_MDI2+ | ||
| P24 | PHY0_MDI2+ | S24 | PHY2_MDI2- | ||
| P25 | PHY0_LED0/CFG_EXT | S25 | GND | ||
| P26 | PHY0_MDI1- | S26 | PHY2_MDI3+ | ||
| P27 | PHY0_MDI1+ | S27 | PHY2_MDI3- | ||
| P28 | GPIO4_C6_d | GPIO4_C6_d | S28 | NC | |
| P29 | PHY0_MDI0- | S29 | PCIE30_PORT0_TX0P | ||
| P30 | PHY0_MDI0+ | S30 | PCIE30_PORT0_TX0N | ||
| P31 | SPI1_CS1_M2 | GPIO1_D5_d | S31 | PHY2_LED0/CFG_EXT | |
| P32 | GND | S32 | PCIE30_PORT0_RX0P | ||
| P33 | NC | S33 | PCIE30_PORT0_RX0N | ||
| P34 | SDMMC0_CMD | GPIO4_D4_u | S34 | GND | |
| P35 | SDMMC_DET_L | GPIO0_A4_u | S35 | TYPEC0_SSTX2P | |
| P36 | SD_CLK | GPIO4_D5_u | S36 | TYPEC0_SSTX2N | |
| P37 | SDMMC_PWREN | GPIO4_B0_d | S37 | TYPEC0_USB20_VBUSDET | |
| P38 | GND | S38 | I2S0_MCLK | GPIO1_C2_d | |
| P39 | SDMMC0_D0 | GPIO4_D0_u | S39 | I2S0_LRCK_TX | GPIO1_C5_d |
| P40 | SDMMC0_D1 | GPIO4_D1_u | S40 | I2S0_SDO0 | GPIO1_C7_d |
| P41 | SDMMC0_D2 | GPIO4_D2_u | S41 | I2S0_SDI0 | GPIO1_D4_d |
| P42 | SDMMC0_D3 | GPIO4_D3_u | S42 | I2S0_SCLK_TX | GPIO1_C3_d |
| P43 | SPI1_CS0_M2 | GPIO1_D3_d | S43 | HDMI_RX_SCL_M1 | GPIO3_D2_d |
| P44 | SPI1_CLK_M2 | GPIO1_D2_d | S44 | HDMI_RX_SDA_M1 | GPIO3_D3_d |
| P45 | SPI1_MISO_M2 | GPIO1_D0_d | S45 | HDMI_RX_D0P | |
| P46 | SPI1_MOSI_M2 | GPIO1_D1_d | S46 | HDMI_RX_D0N | |
| P47 | GND | S47 | GND | ||
| P48 | SATA30_1_TXP | S48 | HDMI_RX_D1P | ||
| P49 | SATA30_1_TXN | S49 | HDMI_RX_D1N | ||
| P50 | GND | S50 | HDMIIRX_HPDOUT_H | GPIO3_D4_d | |
| P51 | SATA30_1_RXP | S51 | HDMI_RX_D2P | ||
| P52 | SATA30_1_RXN | S52 | HDMI_RX_D2N | ||
| P53 | GND | S53 | NC | ||
| P54 | SPI0_CS0_M2 | GPIO1_B4_u | S54 | HDMI_RX_CLKP | |
| P55 | SPI0_CS1_M2 | GPIO1_B5_u | S55 | HDMI_RX_CLKN | |
| P56 | SPI0_CLK_M2 | GPIO1_B3_u | S56 | HDMI_RX_CEC | GPIO3_D1_d |
| P57 | SPI0_MISO_M2 | GPIO1_B1_u | S57 | HDMIIRX_DET_L | GPIO1_A4_d |
| P58 | SPI0_MOSI_M2 | GPIO1_B2_u | S58 | NC | |
| P59 | GND | S59 | TYPEC0_SSRX2P | ||
| P60 | TYPEC1_OTG_DP | S60 | TYPEC0_SSRX2N | ||
| P61 | TYPEC1_OTG_DM | S61 | GND | ||
| P62 | USB0_EN_OC# | GPIO4_B1_u | S62 | TYPEC0_SSTX1P | |
| P63 | TYPEC1_USB20_VBUSDET | S63 | TYPEC0_SSTX1N | ||
| P64 | TYPEC1_USB20_OTG_ID | S64 | GND | ||
| P65 | USB20_HOST0_DP | S65 | TYPEC0_SSRX1P | ||
| P66 | USB20_HOST0_DM | S66 | TYPEC0_SSRX1N | ||
| P67 | USB1_EN_OC# | GPIO4_B2_u | S67 | GND | |
| P68 | GND | S68 | TYPEC0_OTG_DP | ||
| P69 | USB20_HOST1_DP | S69 | TYPEC0_OTG_DM | ||
| P70 | USB20_HOST1_DM | S70 | GND | ||
| P71 | USB2_EN_OC# | GPIO4_B3_u | S71 | USB30_2_SSTXP | |
| P72 | TYPEC0_SBU1 | S72 | USB30_2_SSTXN | ||
| P73 | TYPEC0_SBU2 | S73 | GND | ||
| P74 | NC | S74 | USB30_2_SSRXP | ||
| P75 | PCIE20x1_2_PERSTn_M0_L | GPIO4_C1_d | S75 | USB30_2_SSRXN | |
| P76 | PCIE30x1_1_CLKREQn_M1_L | GPIO4_A0_d | S76 | PCIE30x1_0_PERSTn_M2_L | GPIO4_A5_d |
| P77 | PCIE30x1_0_CLKREQn_M2_L | GPIO4_A3_d | S77 | PCIE30x1_1_PERSTn_M1_L | GPIO4_A2_d |
| P78 | PCIE20x1_2_CLKREQn_M0_L | GPIO4_B7_u | S78 | PCIE30_PORT1_RX1P | |
| P79 | GND | S79 | PCIE30_PORT1_RX1N | ||
| P80 | PCIE30_REFCLKP_SLOT1 | S80 | GND | ||
| P81 | PCIE30_REFCLKN_SLOT1 | S81 | PCIE30_PORT1_TX1P | ||
| P82 | GND | S82 | PCIE30_PORT1_TX1N | ||
| P83 | PCIE20_0_REFCLKP | S83 | GND | ||
| P84 | PCIE20_0_REFCLKN | S84 | PCIE30_REFCLKP_SLOT0 | ||
| P85 | GND | S85 | PCIE30_REFCLKN_SLOT0 | ||
| P86 | PCIE20_0_RXP/SATA30_0_RXP | S86 | GND | ||
| P87 | PCIE20_0_RXN/SATA30_0_RXN | S87 | PCIE30_PORT0_RX1P | ||
| P88 | GND | S88 | PCIE30_PORT0_RX1N | ||
| P89 | PCIE20_0_TXP/SATA30_0_TXP | S89 | GND | ||
| P90 | PCIE20_0_TXN/SATA30_0_TXN | S90 | PCIE30_PORT0_TX1P | ||
| P91 | GND | S91 | PCIE30_PORT0_TX1N | ||
| P92 | HDMI0_TX2P_PORT | S92 | GND | ||
| P93 | HDMI0_TX2N_PORT | S93 | DP1_TX0P | ||
| P94 | GND | S94 | DP1_TX0N | ||
| P95 | HDMI0_TX1P_PORT | S95 | NC | ||
| P96 | HDMI0_TX1N_PORT | S96 | DP1_TX1P | ||
| P97 | GND | S97 | DP1_TX1N | ||
| P98 | HDMI0_TX0P_PORT | S98 | DP1_HPDIN_M0 | GPIO5_D5_d | |
| P99 | HDMI0_TX0N_PORT | S99 | DP1_TX2P | ||
| P100 | GND | S100 | DP1_TX2N | ||
| P101 | HDMI0_TX3P_PORT | S101 | GND | ||
| P102 | HDMI0_TX3N_PORT | S102 | DP1_TX3P | ||
| P103 | GND | S103 | DP1_TX3P | ||
| P104 | HDMITX0_HPDIN_M0 | GPIO1_A5_d | S104 | TYPEC0_USB20_OTG_ID | |
| P105 | HDMITX0_SCL_M2 | GPIO3_C7_u | S105 | DP1_AUXP | |
| P106 | HDMITX0_SDA_M2 | GPIO3_D0_u | S106 | DP1_AUXN | |
| P107 | HDMITX0_CEC_M1 | GPIO0_D1_u | S107 | LCD1_BKLT_EN | GPIO3_C6_u |
| P108 | MI PI_CAM1_PWREN_H | GPIO1_D6_u | S108 | MI PI_DPHY1_TX_CLKP | |
| P109 | MI PI_CAM2_PWREN_H | GPIO1_D7_u | S109 | MI PI_DPHY1_TX_CLKN | |
| P110 | MI PI_CAM1_PDN_L | GPIO1_A7_u | S110 | GND | |
| P111 | MI PI_CAM2_PDN_L | GPIO3_B2_d | S111 | MI PI_DPHY1_TX_D0P | |
| P112 | HP_DET_L | GPIO1_C4_d | S112 | MI PI_DPHY1_TX_D0N | |
| P113 | PWM5_M1_FAN | GPIO0_C6_u | S113 | NC | |
| P114 | GPIO1_B0_u | GPIO1_B0_u | S114 | MI PI_DPHY1_TX_D1P | |
| P115 | GPIO1_A6_d | GPIO1_A6_d | S115 | MI PI_DPHY1_TX_D1N | |
| P116 | GPIO1_C6_d | GPIO1_C6_d | S116 | LCD1_VDD_EN | |
| P117 | PCIE20x1_2_WAKEN_M0_L | GPIO4_C0_u | S117 | MI PI_DPHY1_TX_D2P | |
| P118 | PCIE30x1_1_WAKEN_M1_L | GPIO4_A1_d | S118 | MI PI_DPHY1_TX_D2N | |
| P119 | PCIE30x1_0_WAKEN_M2_L | GPIO4_A4_d | S119 | GND | |
| P120 | GND | S120 | MI PI_DPHY1_TX_D3P | ||
| P121 | PCIE30X4_PERSTn_M0_L | GPIO4_B6_d | S121 | MI PI_DPHY1_TX_D3N | |
| P122 | PCIE30X4_CLKREQn_M0_L | GPIO4_B4_u | S122 | MI PI_DPHY1_TX_D3N | |
| P123 | BOOT_SARADC_IN0 | S123 | PCIE30X4_WAKEN_M0_L | GPIO4_B5_d | |
| P124 | HDMI0_TX_SBDP | S124 | GND | ||
| P125 | HDMI0_TX_SBDN | S125 | MI PI_DPHY0_TX_D0P | ||
| P126 | NC | S126 | MI PI_DPHY0_TX_D0N | ||
| P127 | RESET_L | S127 | LCD0_BKLT_EN | GPIO3_A6_d | |
| P128 | PWRON_L | S128 | MI PI_DPHY0_TX_D1P | ||
| P129 | UART5_TX_M1 | GPIO3_C4_u | S129 | MI PI_DPHY0_TX_D1N | |
| P130 | UART5_RX_M1 | GPIO3_C5_u | S130 | GND | |
| P131 | BT_REG_ON_H | GPIO0_D2_u | S131 | MI PI_DPHY0_TX_D2P | |
| P132 | BT_WAKE_HOST_H | GPIO0_A0_d | S132 | MI PI_DPHY0_TX_D2N | |
| P133 | GND | S133 | LCD0_VDD_EN | GPIO2_B4_u | |
| P134 | UART7_TX_M1 | GPIO3_C0_d | S134 | MI PI_DPHY0_TX_D3P | |
| P135 | UART7_RX_M1 | GPIO3_C1_d | S135 | MI PI_DPHY0_TX_D3N | |
| P136 | UART6_TX_M1 | GPIO1_A1_d | S136 | GND | |
| P137 | UART6_RX_M1 | GPIO1_A0_d | S137 | MI PI_DPHY0_TX_D3N | |
| P138 | UART6_RTS_M1 | GPIO1_A2_d | S138 | MI PI_DPHY0_TX_CLKN | |
| P139 | UART6_CTS_M0 | GPIO1_A3_d | S139 | TP_INT_L | GPIO2_C5_d |
| P140 | UART2_TX_M0_DEBUG | GPIO0_B5_d | S140 | HOST_WAKE_BT_H | GPIO2_C3_d |
| P141 | UART2_RX_M0_DEBUG | GPIO0_B6_d | S141 | LCD0_BKLT_PWM | GPIO3_B6_d |
| P142 | GND | S142 | GPIO0_D3_d | GPIO0_D3_d | |
| P143 | CAN0_TX_M0 | GPIO0_B7_d | S143 | GND | |
| P144 | CAN0_RX_M0 | GPIO0_B8_d | S144 | GPIO0_B2_u | GPIO0_B2_u |
| P145 | CAN2_TX_M1 | GPIO0_D5_u | S145 | NC | |
| P146 | CAN2_RX_M1 | GPIO0_D4_u | S146 | NC | |
| P147 | VCC4V0_SYS | S147 | VDD_RTC | ||
| P148 | VCC4V0_SYS | S148 | SARADC_VIN5_HW_ID | ||
| P149 | VCC4V0_SYS | S149 | NC | ||
| P150 | VCC4V0_SYS | S150 | SARADC_IN6 | ||
| P151 | VCC4V0_SYS | S151 | SARADC_IN1 | ||
| P152 | VCC4V0_SYS | S152 | SARADC_IN2 | ||
| P153 | VCC4V0_SYS | S153 | SARADC_IN3 | ||
| P154 | VCC4V0_SYS | S154 | NC | ||
| P155 | VCC4V0_SYS | S155 | NC | ||
| P156 | VCC4V0_SYS | S156 | SARADC_IN4 | ||
| S157 | NC | ||||
| S158 | GND |

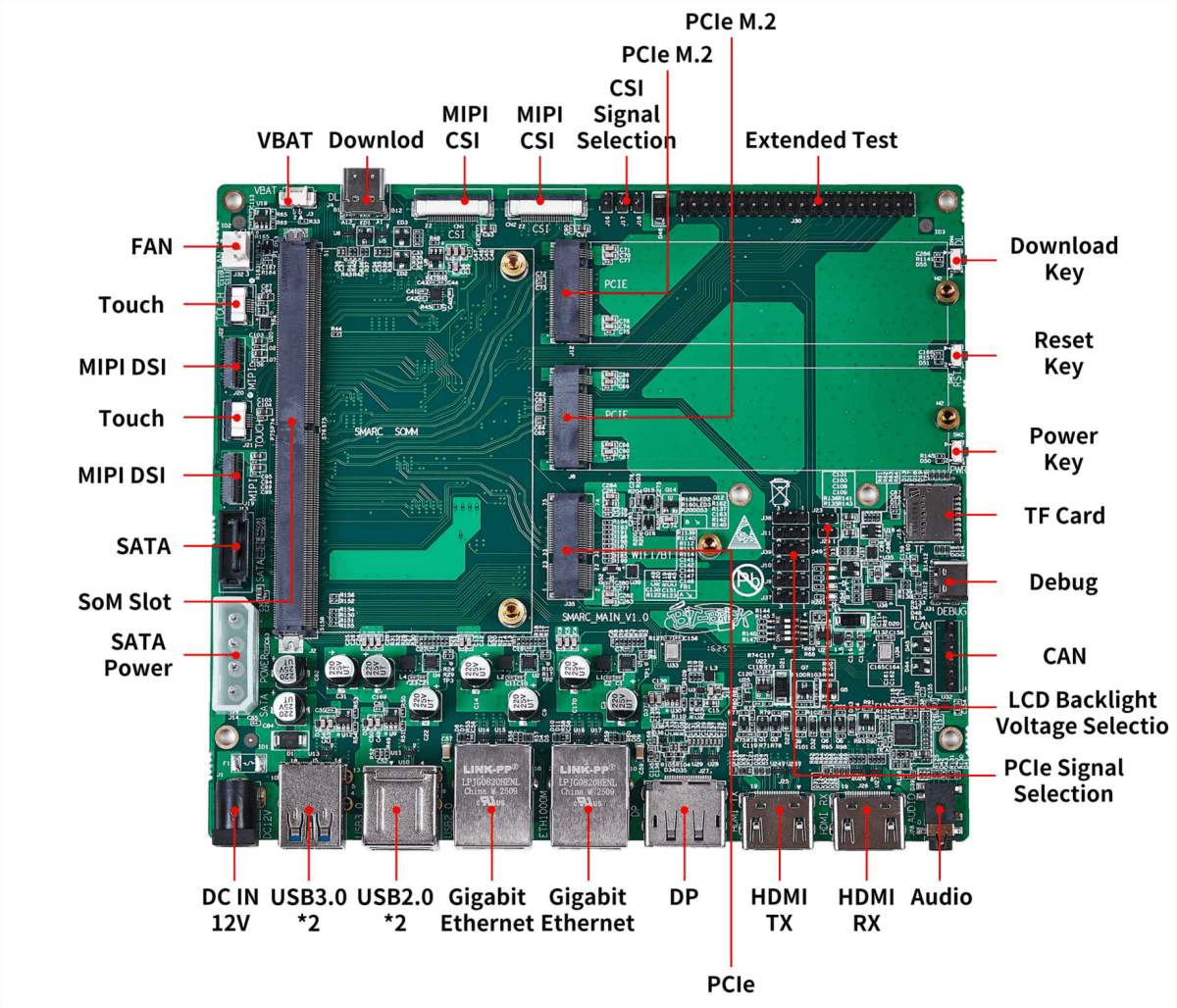

7. Hardware Resources of SSOM-3588 Dev Board
8. Dimension Specifications of SSOM-3588 Dev Board
Size:160mm X 140mm
9. Ordering Information
| Part No. | CPU | Memory | Flash Operat | ing Temp |
|---|---|---|---|---|
| SSOM-3588-0432 | RK3588 | 4GB | 32GB | -20~75°C |
| SSOM-3588-0864 | RK3588 | 8GB | 64GB | -20~75°C |
| SSOM-3588-1628 | RK3588 | 16GB | 128GB | -20~75°C |
| SSOM-3588-3228 | RK3588 | 32GB | 128GB | -20~75°C |
10. Update History
Version Revision Update Date Content Provisional V 1.0 2025-4-29 Initial the first version
